Pivot hinge

Pivot door hinges

FritsJurgens offers three series of pivot hinges, creating a solution for every pivot door. Every pivot hinge is fully mortised in the pivot door and easy to install. Discover the endless possibilities.

Mortised entirely in the pivot door

FritsJurgens revolutionizes the pivot door by fully mortising the pivot hinge in the top and bottom of the door, thereby eliminating the need for complex floor installations.  Only small floor and ceiling plates are visible.



All pivot hinge systems are integrated in the door. Curious about the possibilities of the pivot hinges?

Hereby a short overview:



  • System M: offers you the perfect movement of the pivot door, the ultimate in smoothness.
  • System 3: offers you perfection all around. The door can turn through 360 degrees.
  • System One: excels in simplicity. One pivot point combined with an outstanding performance.



Limitless design up to 500kg

The pivot hinge systems support pivot doors up to max 500kg, which offers endless possibilities designing your pivot door in terms of dimensions and use of materials.

For new and retrofit situations

The floorplate fasteners only need to be mortised 8.0mm in the floor. Therefor it is suitable for all types of floors, also existing ones and combination with radial heating.

Fits virtually in any door

The pivot hinge systems are suitable for every door type in terms of materials with a minimum door thickness of 40mm.

System M
  • Hold positions at 0˚, 90˚and -90˚
  • Self-closing from -125˚ to + 125˚
  • Adjustable closing damping (soft closing)
  • Adjustable hydraulic backcheck
  • Can be combined with door frames
  • Patented system
System M details
Movement
System 3 pivot door
System 3
  • Hold positions at 0˚, 90˚, 180˚ and 270˚
  • Self-opening
  • Self-closing
  • Patented spring system
System 3 details
Movement

System 3 is highly suitable for:

Positioning
System One
System One
  • Compact system
  • No hold positions or closure function
  • Can be combined with door frames
System One details
Movement
Positioning
System 3
System M rotation
pivot hinge system by FritsJurgens pivot hinge system by FritsJurgens - top pivot pivot hinge system by FritsJurgens

FritsJurgens pivot hinge systems

  • No structural elements in floor and ceiling
  • Load-bearing capacity: up to 500 kg
  • Minimum door thickness: 40mm
  • Floorplate fasteners only 8mm in the floor
  • Patented systems
  • Quick and easy to install
  • Maintenance-free
  • Easily adjustable with the door in place
show system options

FOR ALL TYPES OF PIVOT DOORS

FritsJurgens pivot hinges are ideal for large, heavy and tall timber, steel, framed glass, and oversized clad doors. Perfect for interior and exterior doors, in both residential and commercial environments.

Contact us

FritsJurgens has en extensive international network of qualified distributors and partners. Would you like to purchase pivot hinge systems or are you looking for a pivot door manufacturer? You can find details on our contact page.

contact us

Large glass pivot doors with a steel framework 2

Built for a life time

Pivot hinges developed by FritsJurgens are made to last for a lifetime. Our pivot systems are tested up to 1.000.000 open- and closing movement. Therefore, pivot doors with FritsJurgens Inside can easily endure 136 years of daily use.

FritsJurgens pivot hinges are hidden away inside the door. All technique is mortised entirely (and thus concealed) into the door itself. Therefore, pivot doors with FritsJurgens Inside need to be a minimum of 40 mm thick. There is no need for structural elements in the floor or ceiling, nor subterranean door closers when installing a pivot door with FritsJurgens Inside.

This allows for minimally invasive, and unwanted visible lines and details. Furthermore, all of FritsJurgens pivot hinges are maintenance-free for over a lifetime.

FritsJurgens offers 3 types of pivot hinges, each with its own unique details and features.

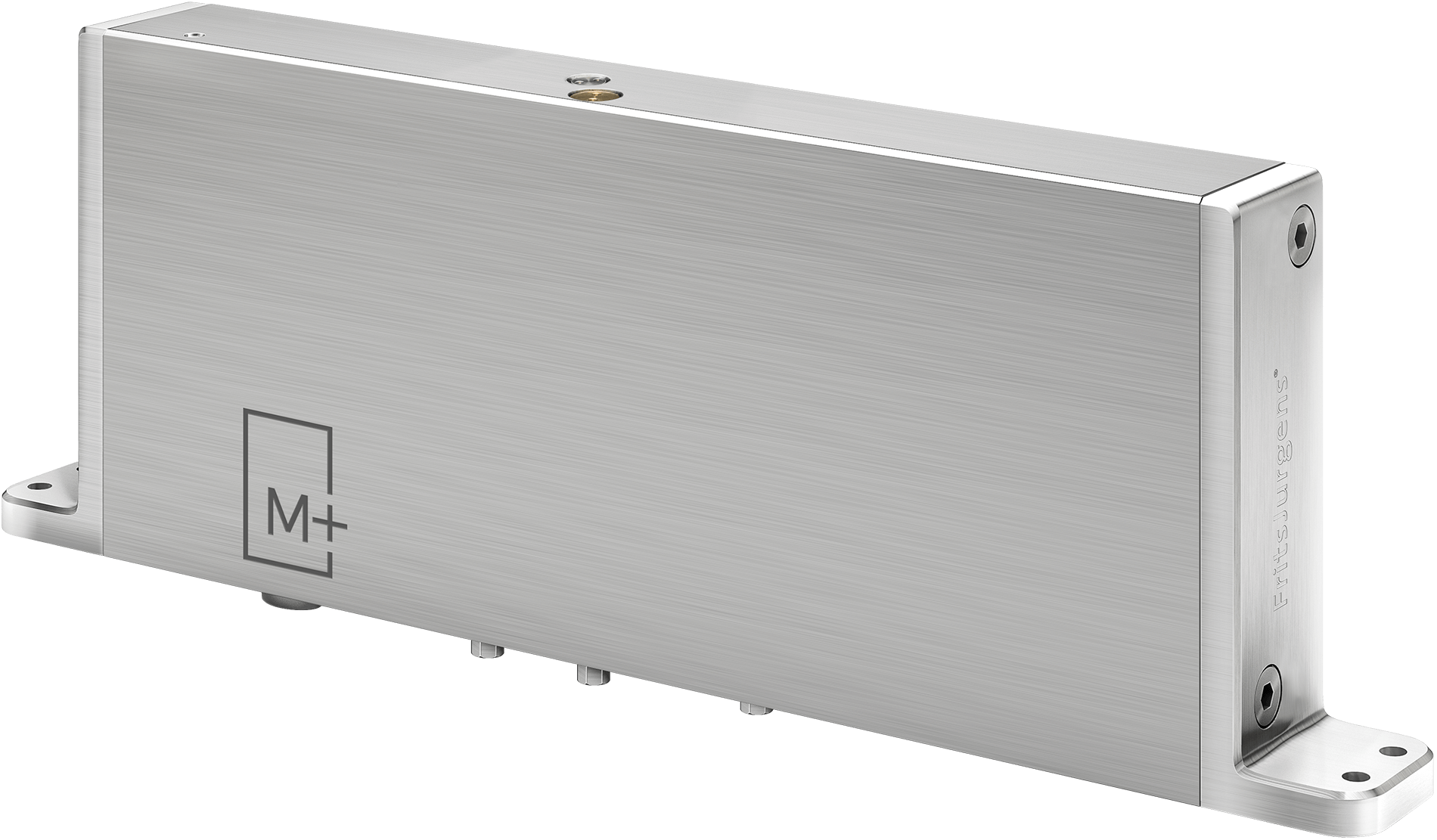

System M pivot hinge

For exterior or interior pivot doors that require a self-closing function, wall protection (hydraulic backcheck) or closing damping, we offer our most advanced pivot hinge System M. The M stands for motion, as the door automatically closes in an elegant, smooth motion to it’s closed position after being opened.

When the door is opened with force, the hydraulic back-check prevents the door from touching the wall. System M has a load capacity for doors ranging between 20Kg and 350Kg.

System M details

Suitable for: Rotation: 180˚, Rotation: 90˚ (in combination with door frames)



Pivot hinge FritsJurgens Inside

System One pivot hinge

For pivot doors or pivoting walls that do not require any functionality, we offer System One. System One functions solely as a pivot point, without any additional functionalities for doors ranging between 20 Kg and 500 Kg.

System One

Suitable for: Rotation: 360˚, Rotation: 90˚ (in combination with door frames)

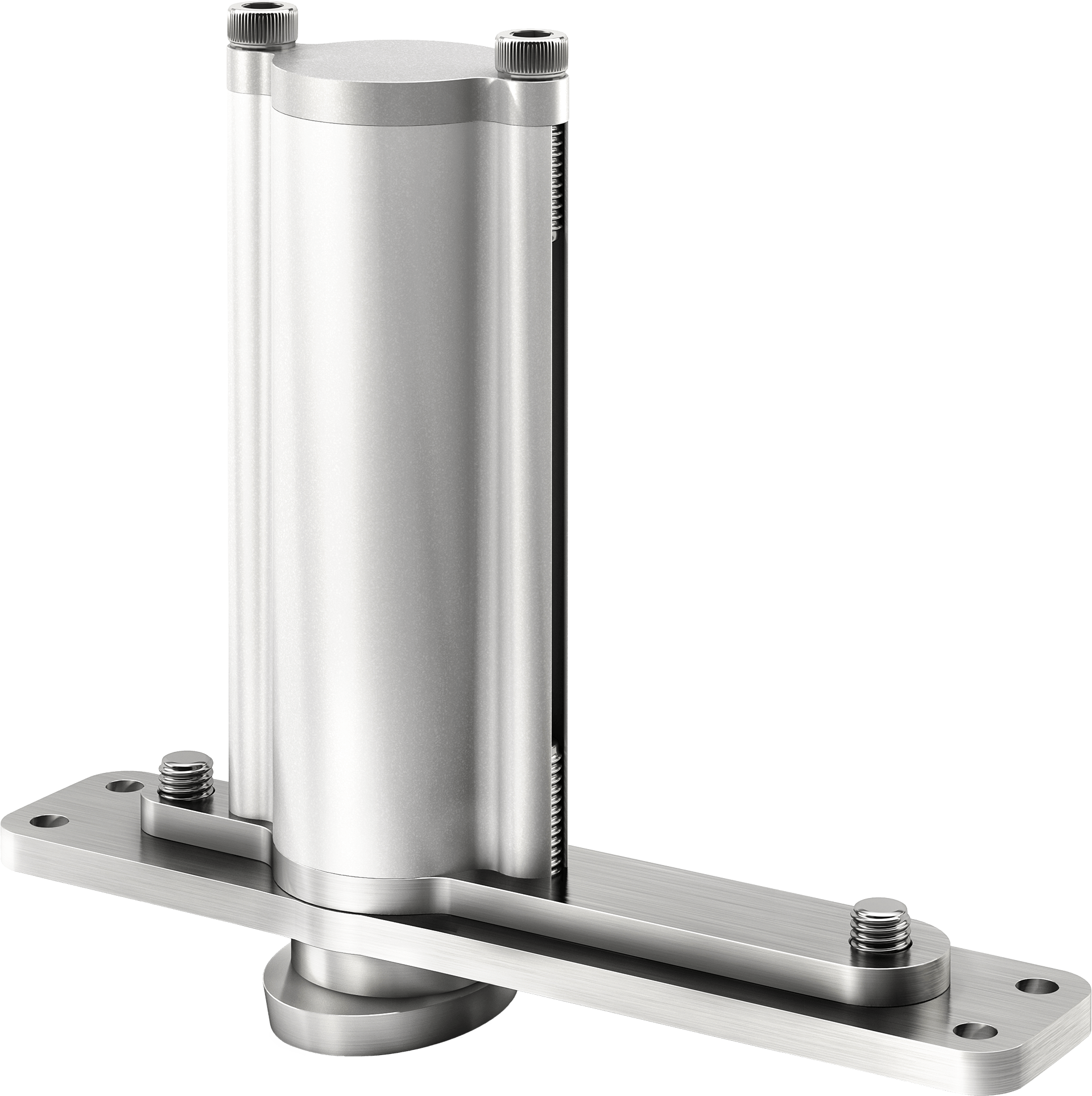

System 3 pivot hinge

For moving walls or pivoting walls that require hold-positions at every 90-degree angle, we offer System 3. System 3 is also built for doors ranging between 20 Kg and 500 Kg.

A pivot door fitted with System 3 will always return to it’s closest 90-degree angle position and can, therefore, be fixed in an open, or closed position (flush).

System 3 is only suitable for middle placement of the pivot point and is not suitable for exterior or interior doors with the pivot point placed on the side of the door. System 3 only suitable for doors with a middle placed pivot point.

System 3 details

Suitable for: Rotation: 360°

Pivoting oversized door in white with middle placement

Easy installation

FritsJurgens pivot hinges also allow for quick and easy installation of pivot doors up to 500Kg in both new and retrofit projects, even when floor-heating is applied.

FritsJurgens hinges are mounted on a small floor-plate that is just 8 mm fastened into the floor. It is also possible to mount doors on floors where two types of floor meet.

All FritsJurgens pivot hinges are double-acting and are suitable for a wide range of door materials. From steel-framed glass pivot doors to wooden, or even marble pivot doors.
