System M+ 40 mm
System M+ (SP.M+.40.IND.150.1800) offers control over every part of the door movement for light and heavy pivot doors.
Specifications

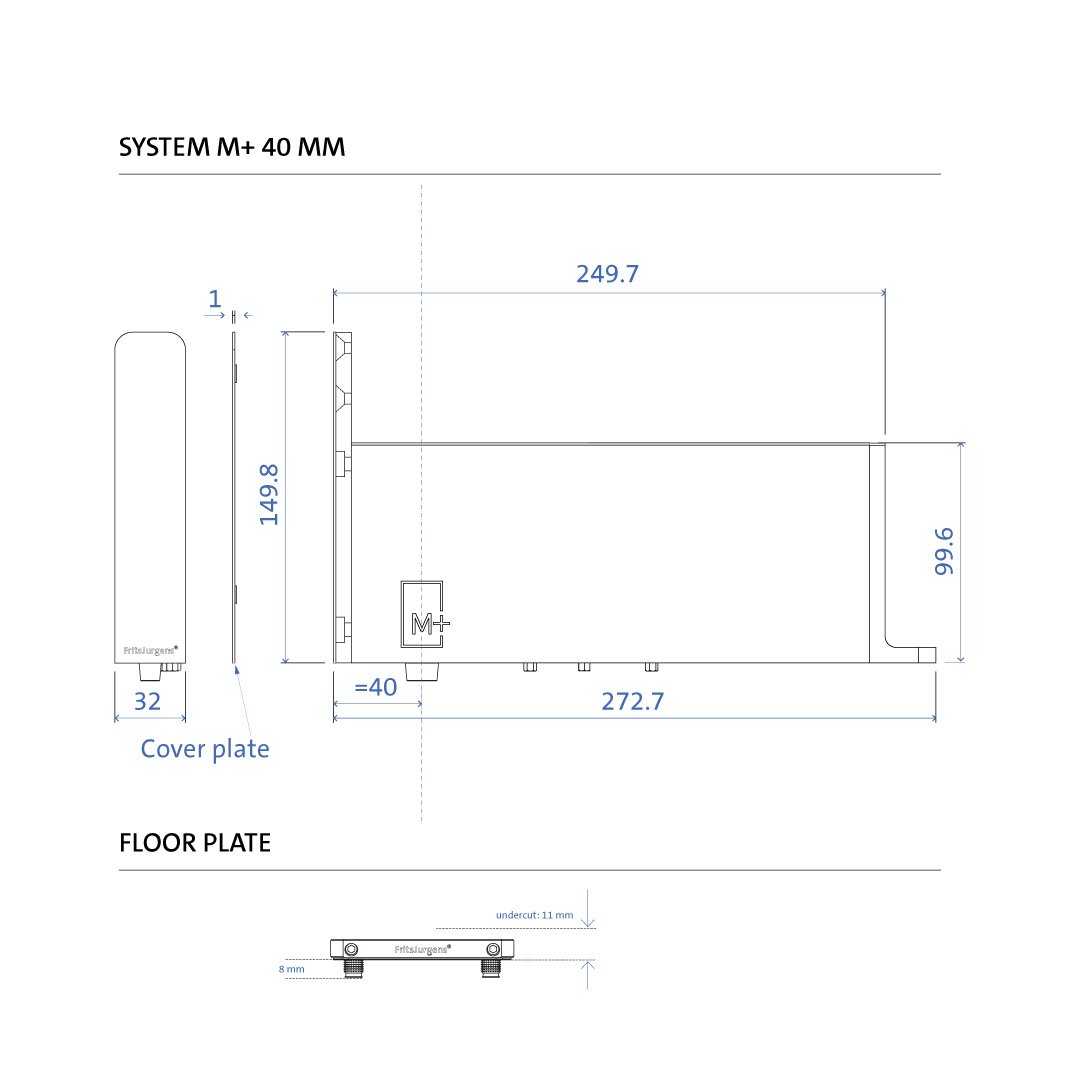

System M+ 40 mm
| System Specifications | |
|---|---|
| Dimensions | 294,8 x 32 x 99,6 mm |
| Weight | 2,6 kg |
| Material | Stainless Steel | Anodized aluminum |
| Corrosion resistance | EN 1670 - class 5 (norm:0-5) |
| Door Specifications | |

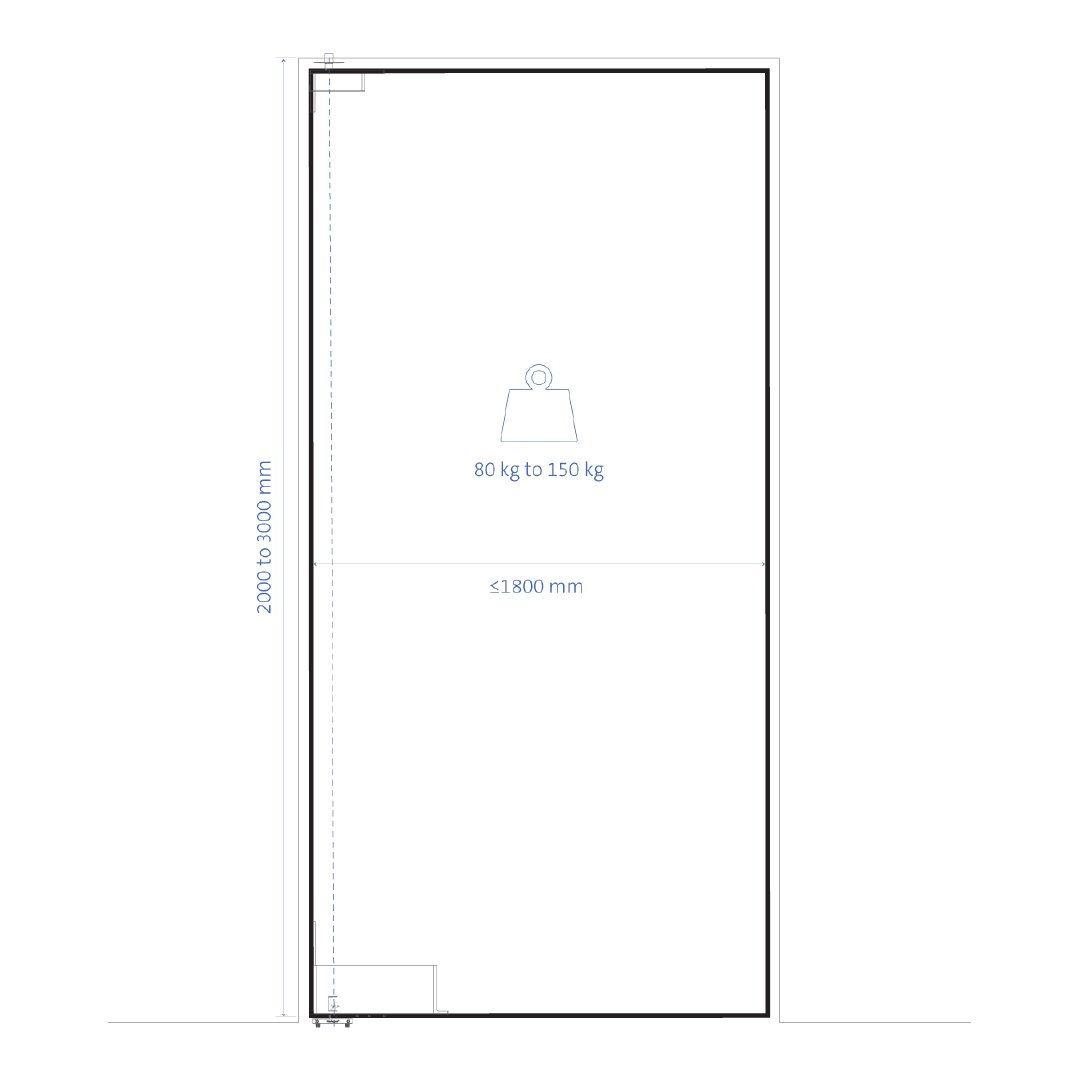

| Maximum height | 3000 mm |
| Maximum width | 1800 mm |
| Door weight | 80 kg to 150 kg |
| Minimum door thickness | 40 mm |
| Fixed pivot point | 40 mm |
| Top gap | 4-10 mm |
| Bottom gap | 11 mm |
| Hold positions | 90º, -90º and 0º |
| Guarantee | 2 years |
Door movement
Damper Control
Ensures a smooth and elegant closing movement and protects your door from touching the wall (back-check).
30º Speed Control
Allows you to determine the speed of the pivot door through the last part of the closing movement.
Latch Control
Provides the ability to adjust the pivot hinge to latch the door properly.
Components

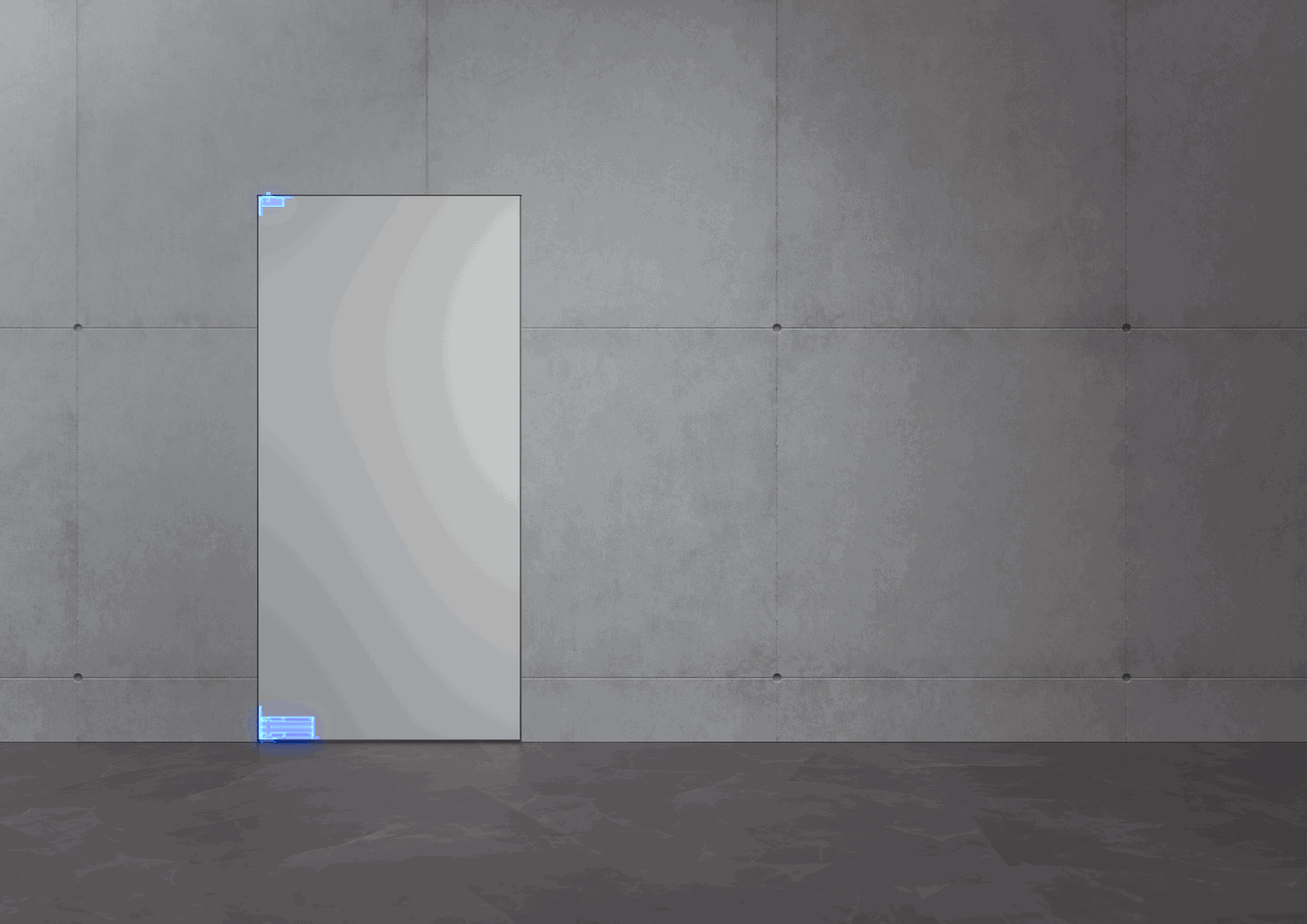

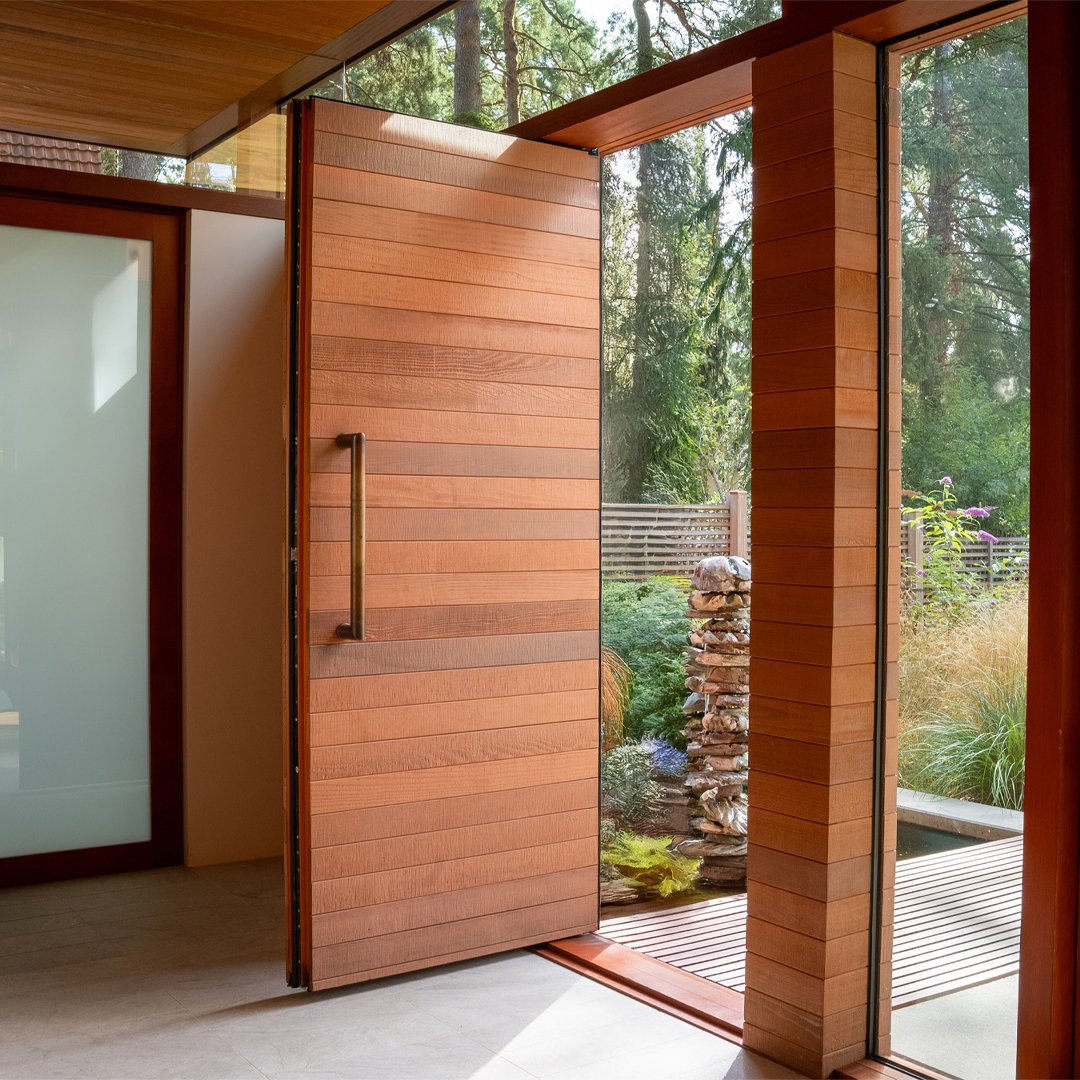

A pivot door needs various components – the pivot system, a floor plate, a ceiling plate, and a top pivot.

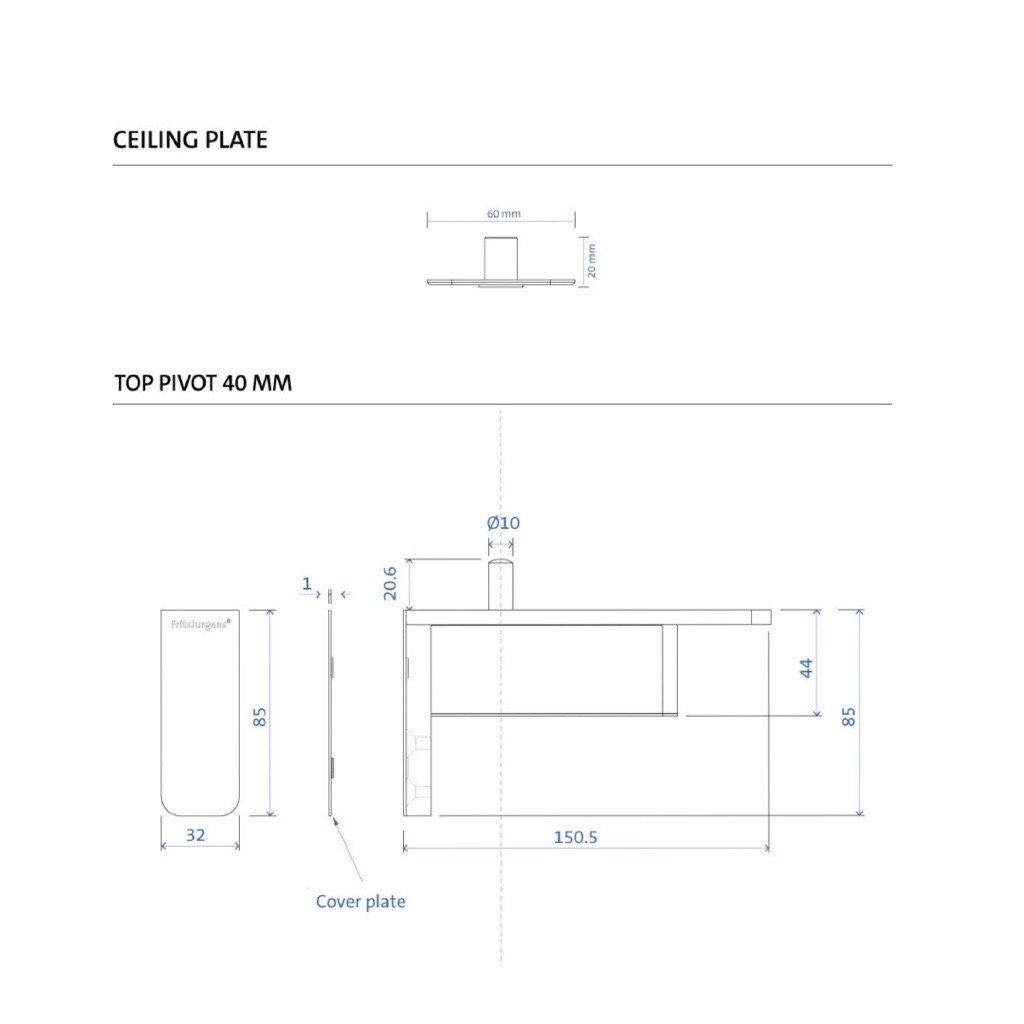

Top pivot
The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed.
FritsJurgens offers two types of top pivots: Top pivot Regular and Top pivot Cable Grommet. Top pivot Cable Grommet is designed to enable easy wiring through the door for lighting or electronic security.
Bottom pivot
The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 Kg.
The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, self-closing, damper control, latch control, 30° speed control, free swing.
The bottom pivots placement determines the the spatial impact that thepivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.
Ceiling plate
The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.

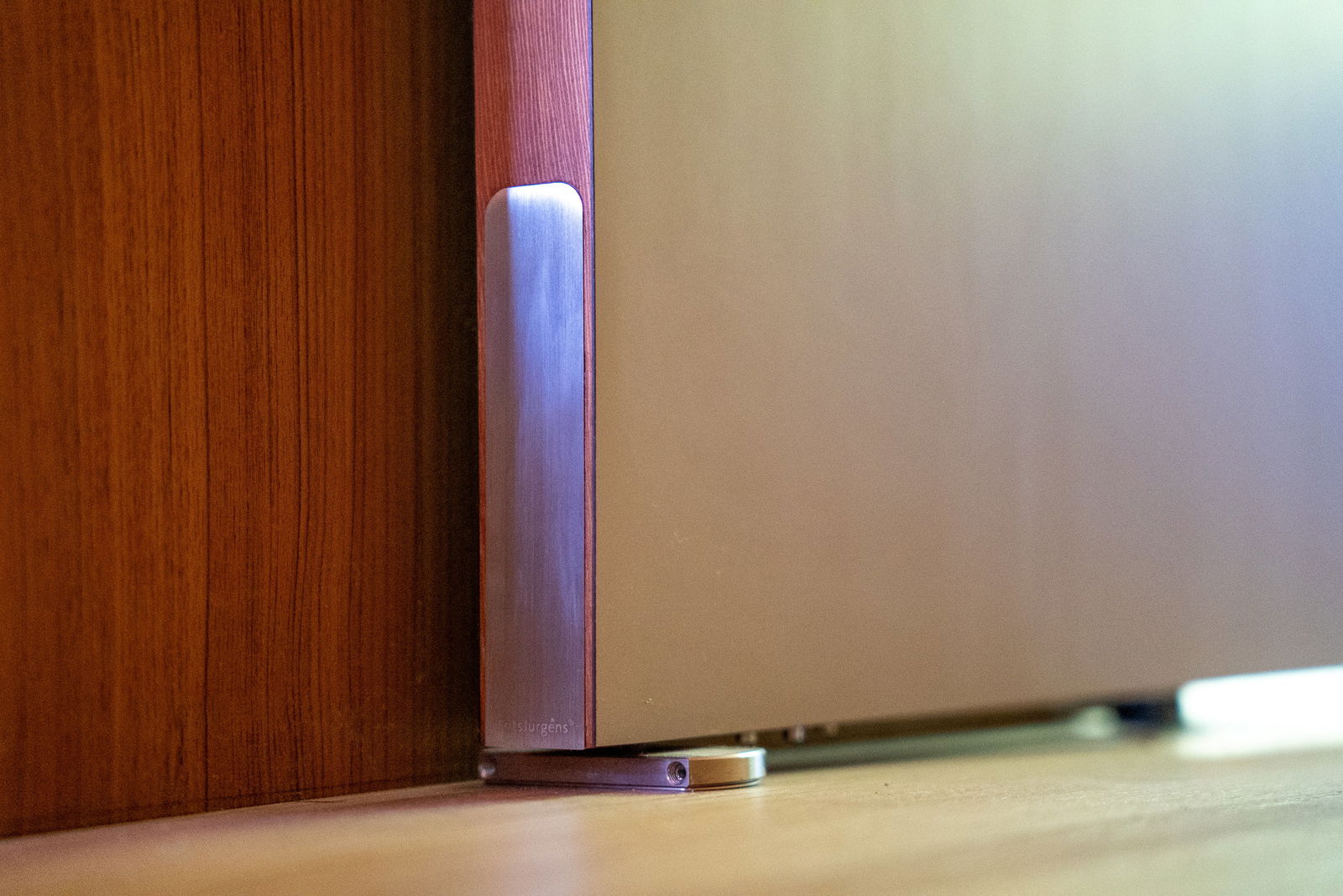

Floor plate
Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. Two longer, shortenable floor plate pins of 30 mm are included with the square floor plate designs.
There are various floor plates available for System M+. The standard floor plate is available in four designs: brushed stainless steel (Series 420) and PVD black in a round and a square version. Also available is floor plate Flush, which can be integrated into thresholds and into interior floors. The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.
