Features
Compact and slim
At 18 mm high and 32 mm wide, System One fits narrow profile doors. It has no hold positions and no self-closing, which keeps the mechanism simple and suits a wide range of door designs.
Free swing
The door turns freely in both directions. That simplicity makes System One easy to combine with door frames.
Single-acting, double-acting and revolving
System One rotates freely: single-acting to 90°, double-acting to 180°, or a full 360° as a revolving door.
What a System One set contains

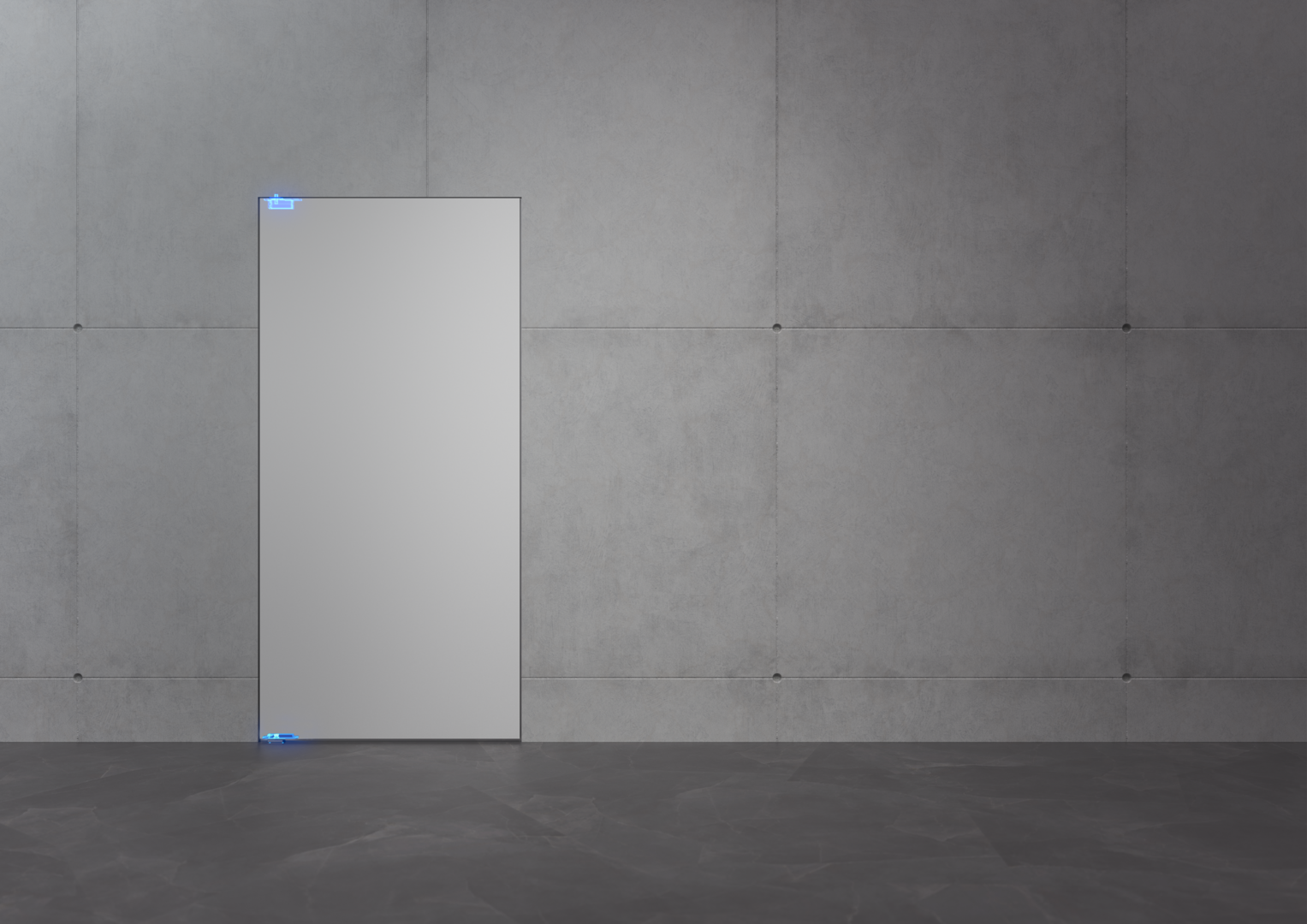

A complete set consists of four parts. The pivot hinge sits in the door, the plates anchor it to floor and ceiling.
Ceiling plate
The ceiling plate is fitted in the ceiling and takes the pin of the top pivot. System One uses the ceiling plate Class G: 70 × 40 × 23 mm, for a Ø15 mm pin, in stainless steel or black.
Top pivot
The top pivot is mounted in the top of the door with a pinhole connection. It adjusts 5 mm to the left and 5 mm to the right and has a Ø7.5 mm cable entry. System One 70 mm pairs with Top pivot 70 mm Class G, or with Top pivot Reversed, which is installed in the head jamb with the Receiver. The 40 mm build pairs with Top pivot 40 mm Class G.

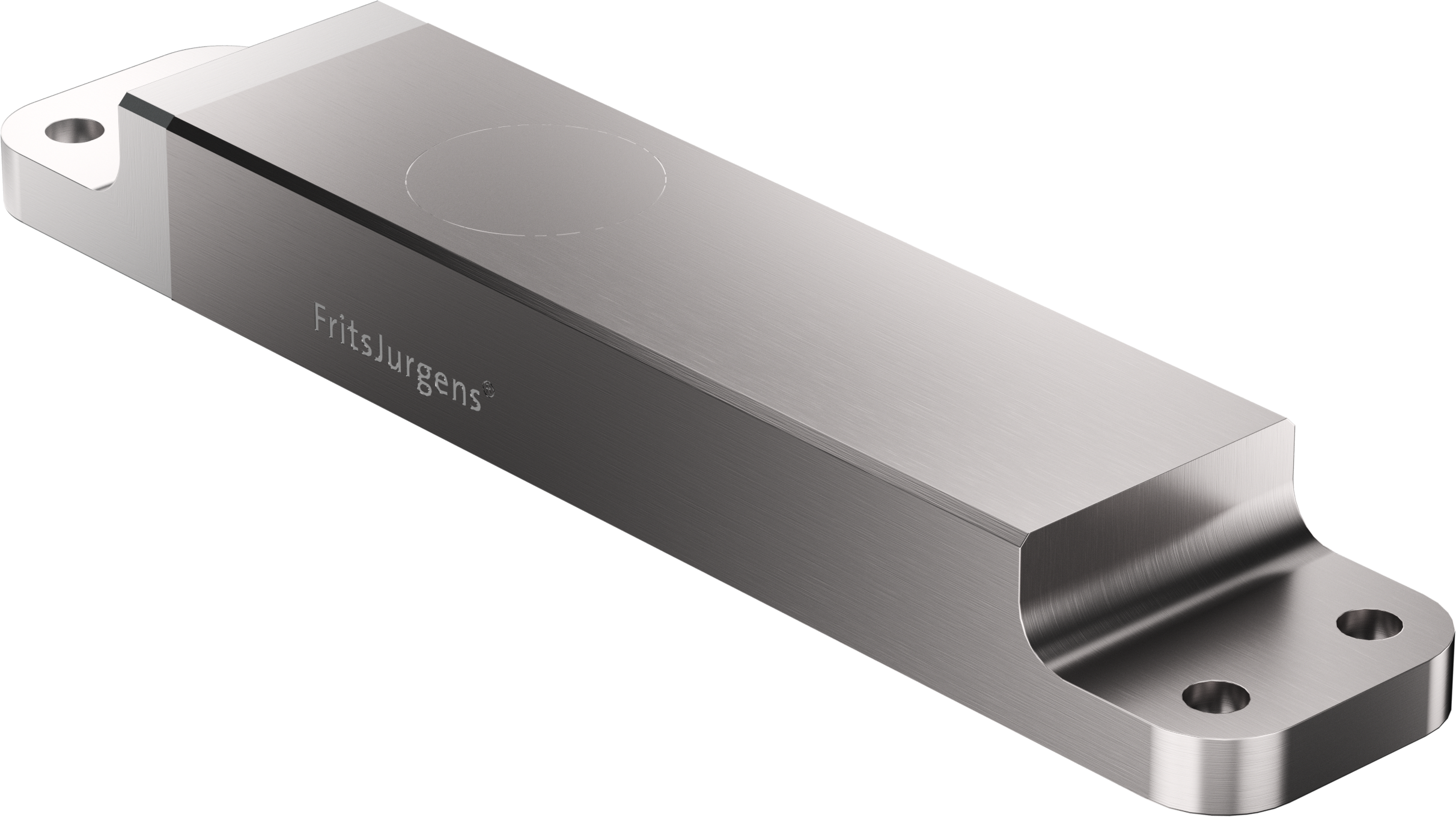

Bottom pivot
The pivot mechanism sits in the bottom of the door, where it is virtually invisible. At 162 × 32 × 18 mm, System One carries doors up to 500 kg (Class G). It is a free-swing system with no hold positions and no self-closing, so the door turns freely through 360°.
Floor plate squared non-adjustable
This is the floor plate made for System One. Two or four 8 mm mounting pins hold it in place, or two 30 mm pins on layered floor materials, so it combines with underfloor heating. It comes in stainless steel.

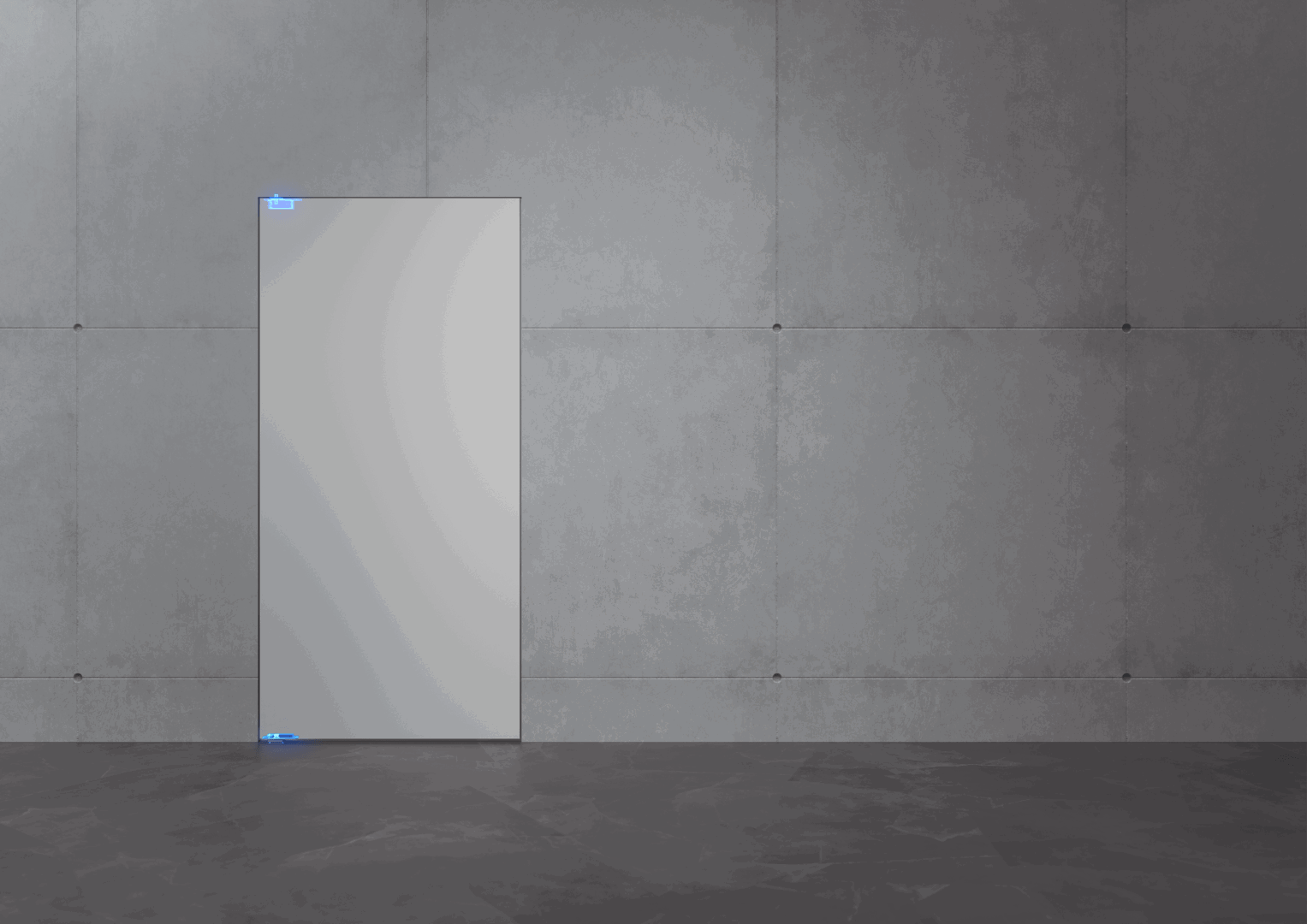

* Shown: System One 70 mm with floor plate squared non-adjustable. Other options available.
Floor plates for System One
System One takes four floor plates. The floor plate squared non-adjustable is made for System One: 80 × 40 × 9 mm, an 11 mm undercut, no radial adjustment, in stainless steel. The round floor plate adds 2.5° of radial adjustment to either side. Flush squared and Flush rounded are recessed into the sill, for drop seals and exterior pivot doors.
Floor plate squared non-adjustable
Stainless steel
Suitable for:
System One
- No radial adjustment
- Two or four 8 mm pins for stability between two floor types, or two 30 mm pins for layered floor materials
- 11 mm of space under the door
- Scratch-resistant, low-profile design
- Size (MM)
- 80 x 40 x 9 mm
- Size (Inch)
- 3.15 x 1.57 x 0.35 inch
- Material
- Stainless steel
- Art.nr.
- FP.M.X.X.SN.SS
- 3D drawing STEP File , 4.03 MB
Floor plate round
Stainless steel
Suitable for:
- Radial adjustment: 2.5° to the left and 2.5° to the right
- Four 8 mm pins
- 11 mm of space under the door
- Scratch-resistant, low-profile design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- Stainless steel
- Art.nr.
- FP.M.X.X.R.SS
PVD black
Suitable for:
- Radial adjustment: 2.5° to the left and 2.5° to the right
- Four 8 mm pins
- 11 mm of space under the door
- Scratch-resistant, low-profile design
- Size (MM)
- Ø80 x 9 mm
- Size (Inch)
- Ø3.15 x 0.35 inch
- Material
- PVD black
- Art.nr.
- FP.M.X.X.R.BK
- 3D drawing STEP File , 6.04 MB
Floor plate Flush squared
Stainless steel
Suitable for:
- Squared corners, for integration into a floor or threshold
- Sits flush with the floor or threshold, leaving 7 mm under the door
- Electropolished for an extremely corrosion-resistant, weatherproof surface
- Four 8 mm pins
- Size (MM)
- 80 x 40 x 11 mm
- Size (Inch)
- 3.15 x 1.57 x 0.43 inch
- Material
- Hardened stainless steel
- Art.nr.
- FP.M.X.X.FS.SS
- 3D drawing STEP File , 2.18 MB
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
Floor plate Flush rounded
Stainless steel
Suitable for:
- Rounded corners, for integration into a floor or threshold
- Sits flush with the floor or threshold, leaving 7 mm under the door
- Electropolished for an extremely corrosion-resistant, weatherproof surface
- Four 8 mm pins
- Size (MM)
- 80 x 40 x 11 mm
- Size (Inch)
- 3.15 x 1.57 x 0.43 inch
- Material
- Hardened stainless steel
- Art.nr.
- FP.M.X.X.FR.SS
- 3D drawing STEP File , 2.19 MB
- 2D drawing exterior situation DWG File , 244.53 KB
- Milling manual & Technical drawing PDF File , 1.36 MB
At a glance
System One comes in two builds. The 70 mm runs from side to middle placement; the 40 mm is a fixed side placement with cover plates. Both take doors up to 500 kg.
System One 70 mm Class G
| System specifications | |
|---|---|
| Dimensions | 162 x 32 x 18 mm |
| Placement | Side to middle placement |
| Pivot point | From 70 mm to middle placement |
| Cover plates | No |
| Weight capacity | Class G: up to 500 kg |
| Pairs with | |
| Top pivots |
Top pivot 70 mm Class G Top pivot Reversed |
| Floor plates |
Floor plate squared non-adjustable Floor plate round Floor plate Flush squared Floor plate Flush rounded |
| Functionalities | |
| Free swing | Yes |
| Hold positions | No |
| Self-closing | No |
| Door specifications | |
| Door acting |
Revolving: 360° Double-acting: 180° Single-acting: 90° |
| Door width | Unlimited |
| Door height | Unlimited |
| Pivot point | Side and middle |
| Minimum door thickness | 40 mm |
| Top gap | 4 - 10 mm |
| Bottom gap |
11 mm (squared non-adjustable, round) 7 mm (Flush squared, Flush rounded) |
| Door movement | Free swing through 360°, no hold positions |
System One 40 mm Class G
| System specifications | |
|---|---|
| Dimensions | 140 x 32 x 85 mm |
| Placement | Side placement |
| Pivot point | Fixed at 40 mm |
| Cover plates |
Stainless steel Black |
| Weight capacity | Class G: up to 500 kg |
| Pairs with | |
| Top pivots | Top pivot 40 mm Class G |
| Floor plates |
Floor plate squared non-adjustable Floor plate round Floor plate Flush squared Floor plate Flush rounded |
| Functionalities | |
| Free swing | Yes |
| Hold positions | No |
| Self-closing | No |
| Door specifications | |
| Door acting |
Revolving: 360° Double-acting: 180° Single-acting: 90° |
| Door width | Unlimited |
| Door height | Unlimited |
| Pivot point | Side |
| Minimum door thickness | 40 mm |
| Top gap | 4 - 10 mm |
| Bottom gap |
11 mm (squared non-adjustable, round) 7 mm (Flush squared, Flush rounded) |
| Door movement | Free swing through 360°, no hold positions |
