System M+

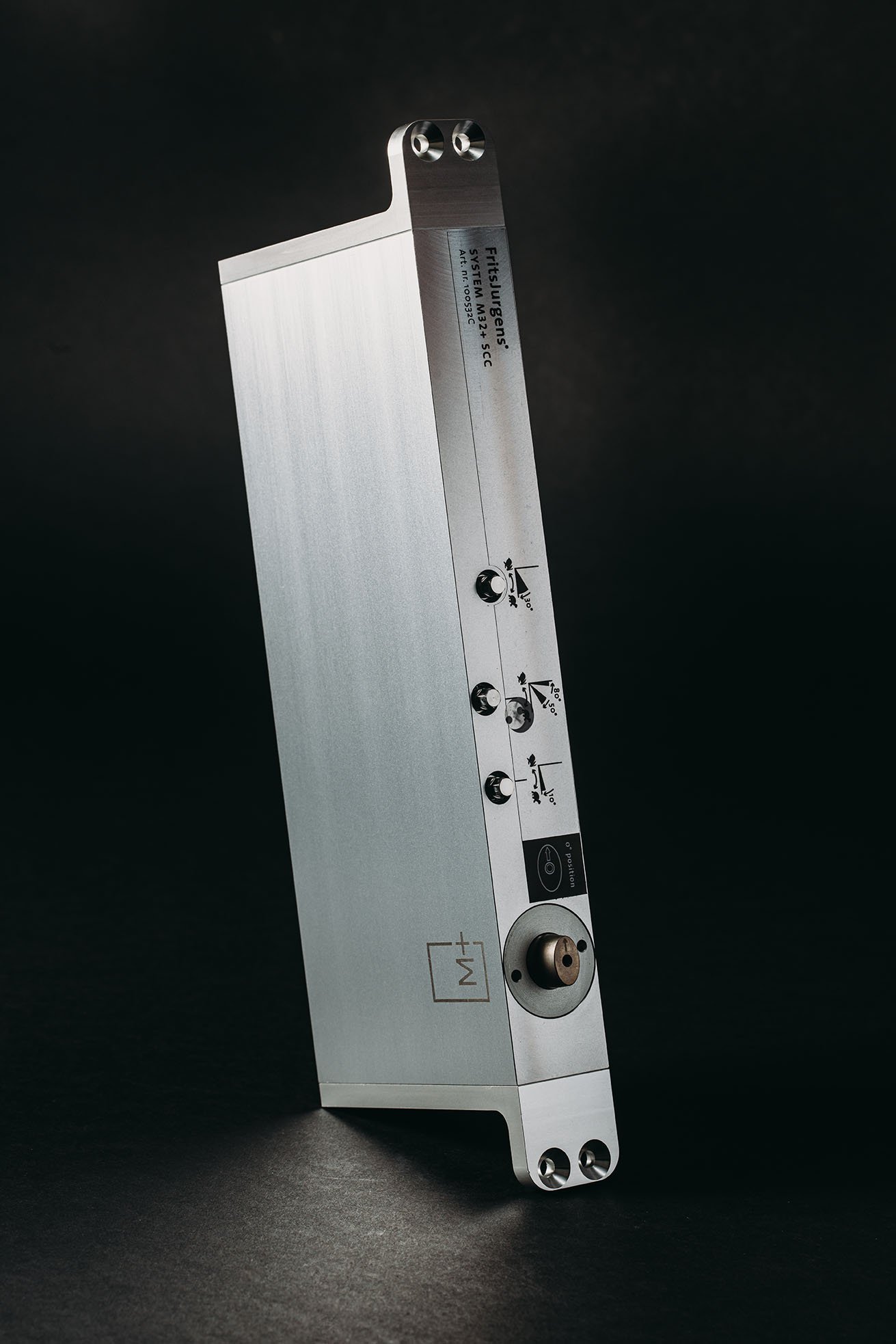

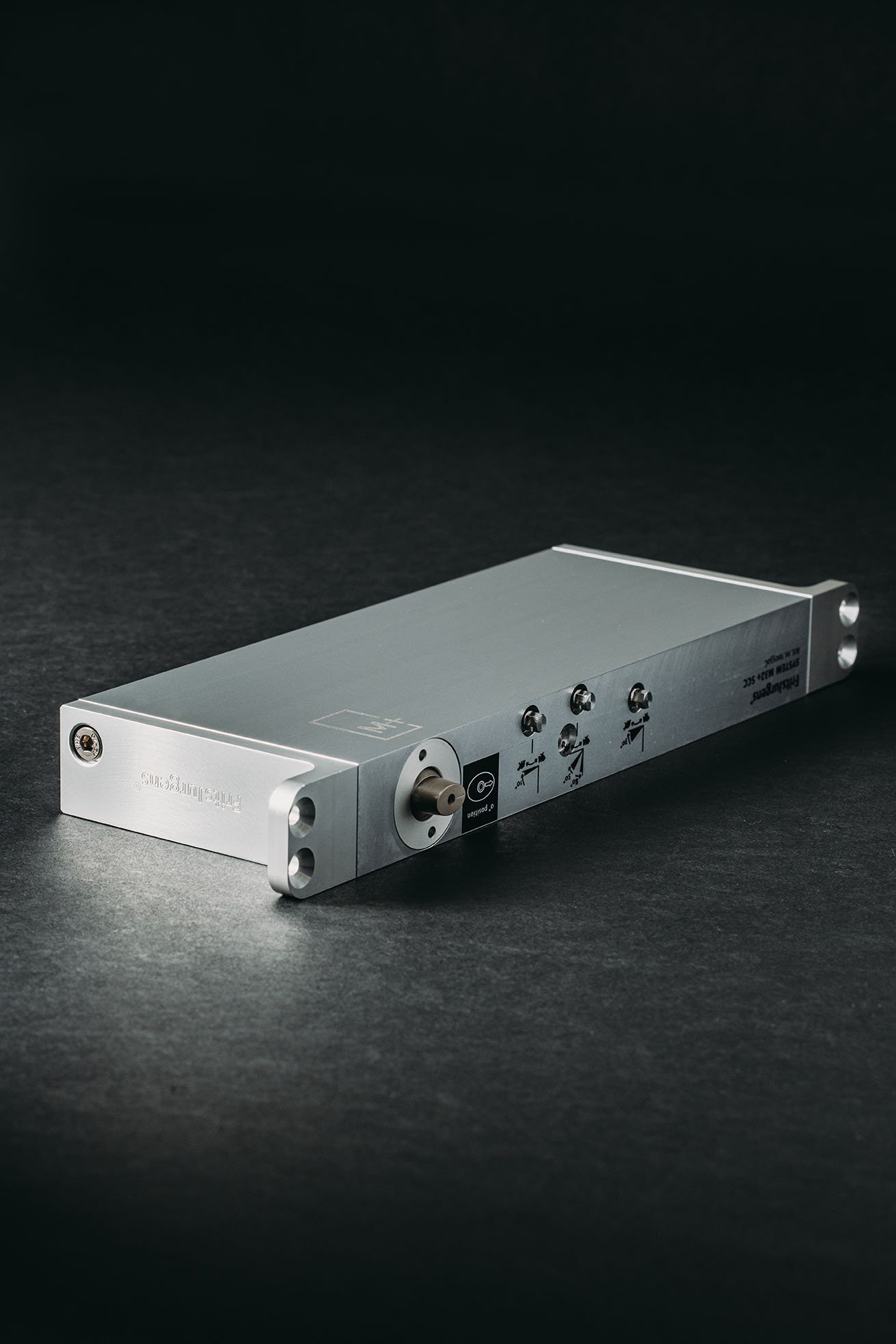

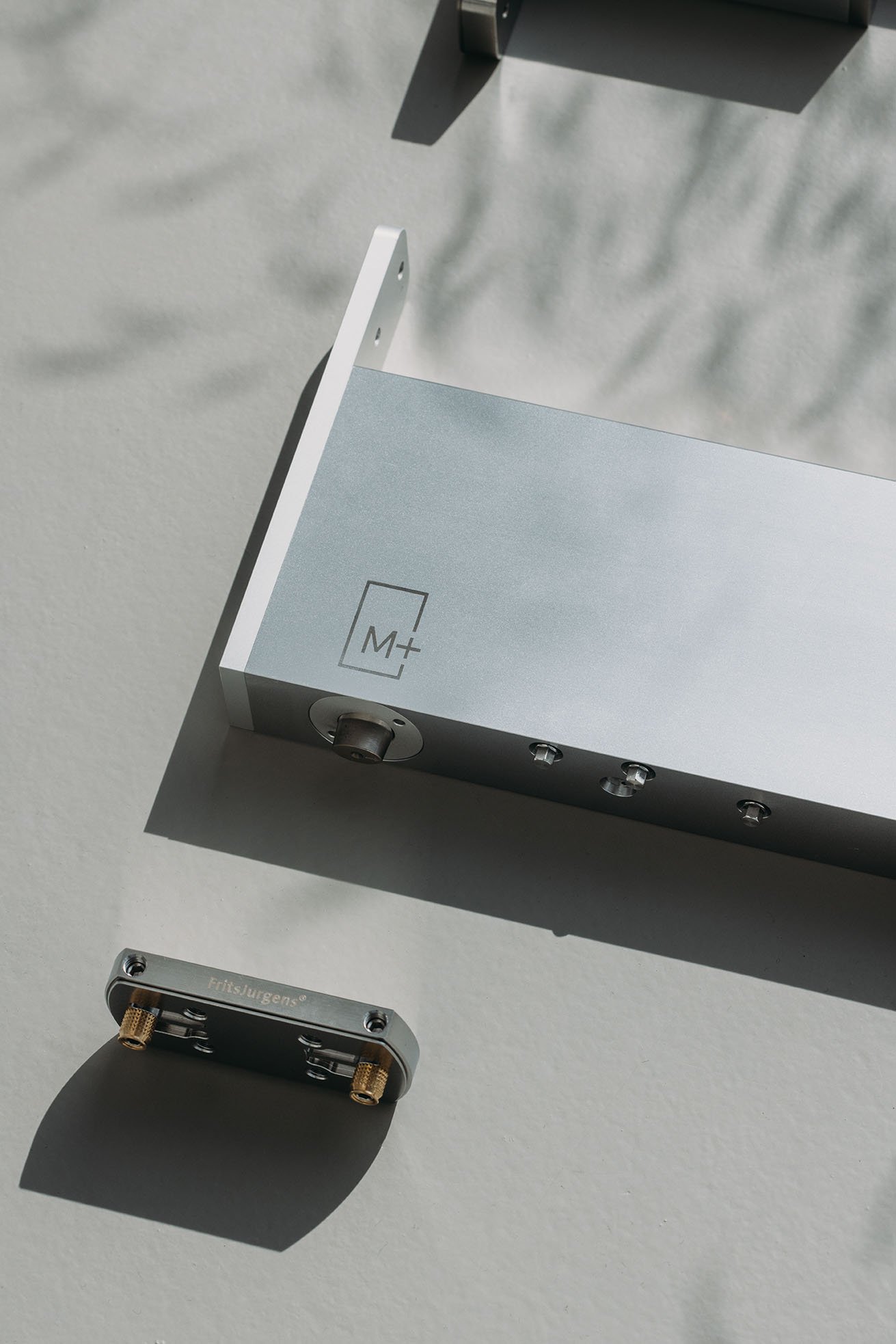

System M+ offers control over every part of the door movement for light and heavy pivot doors.

FritsJurgens- Pivot hinge-System M+

Adjustability for every pivot door

Fully adjustable door movement

Thanks to Damper Control, 30° Speed Control, and Latch Control, System M+’s movement is fully adjustable.

Proper latching

Latch Control ensures that doors with latching bolts always close properly. Ideal for exterior pivot doors.

Small to oversized doors

System M+ is suitable for light doors and heavy doors in a range of 80 kg to 500 kg for ultimate design freedom.

Functionalities

Latch Control

Provides the ability to adjust the pivot hinge to latch the door properly.

Damper Control

Ensures a smooth and elegant closing movement and protects your door from touching the wall (back-check).

30º Speed Control

Allows you to determine the speed of the pivot door through the last part of the closing movement.

System M+ for all pivot doors

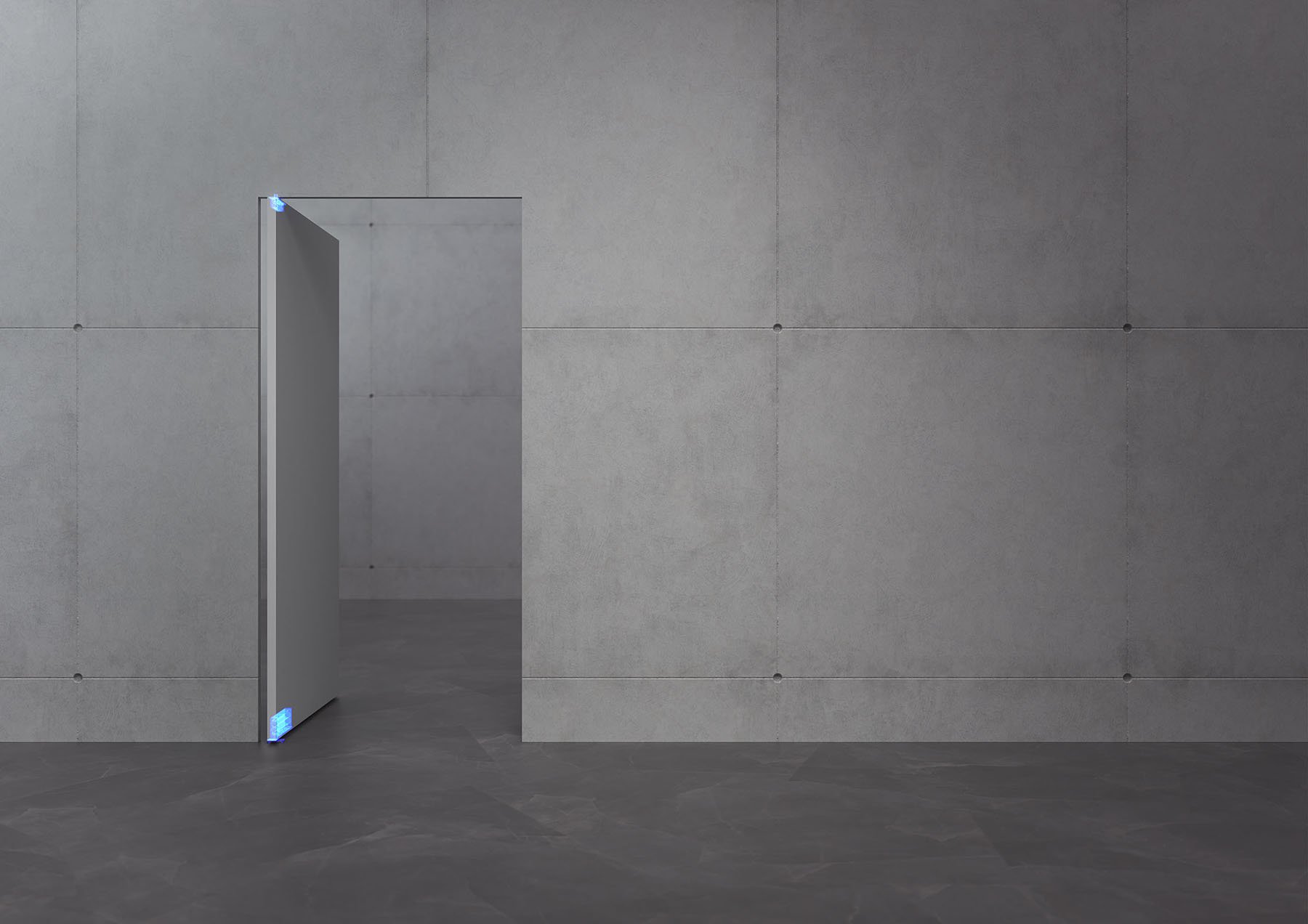

This top pivot is a real all-rounder. The ability to position the system 70 mm from the door’s side reduces unused space while retaining the beautiful, distinctive pivot door movement. This top pivot can be placed in any position between 70 mm and the center of the door and is suitable for all FritsJurgens’ pivot systems.

Pivot point: Flexible from 70 mm

Top pivot: 70mm, Reversed and Cable Grommet

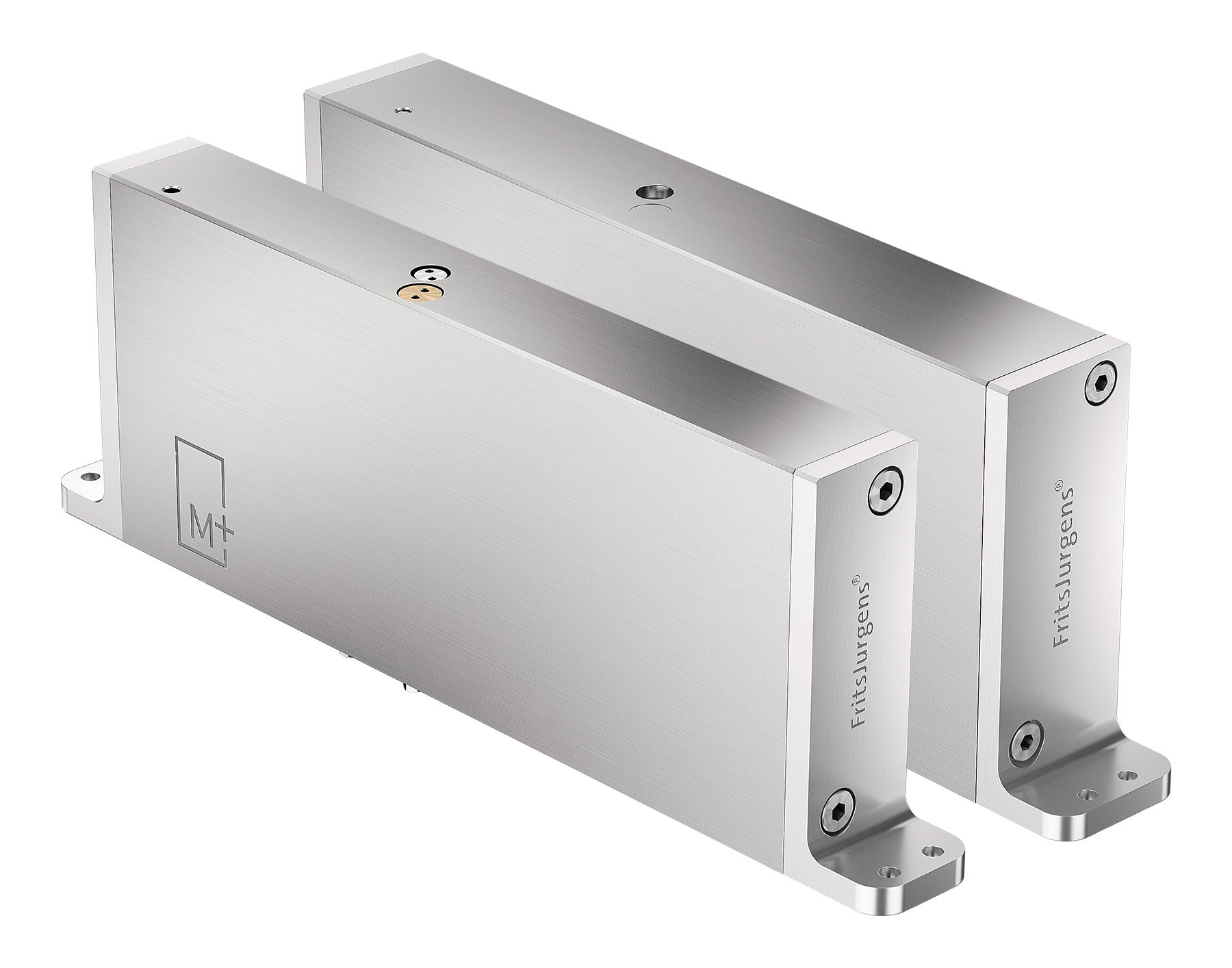

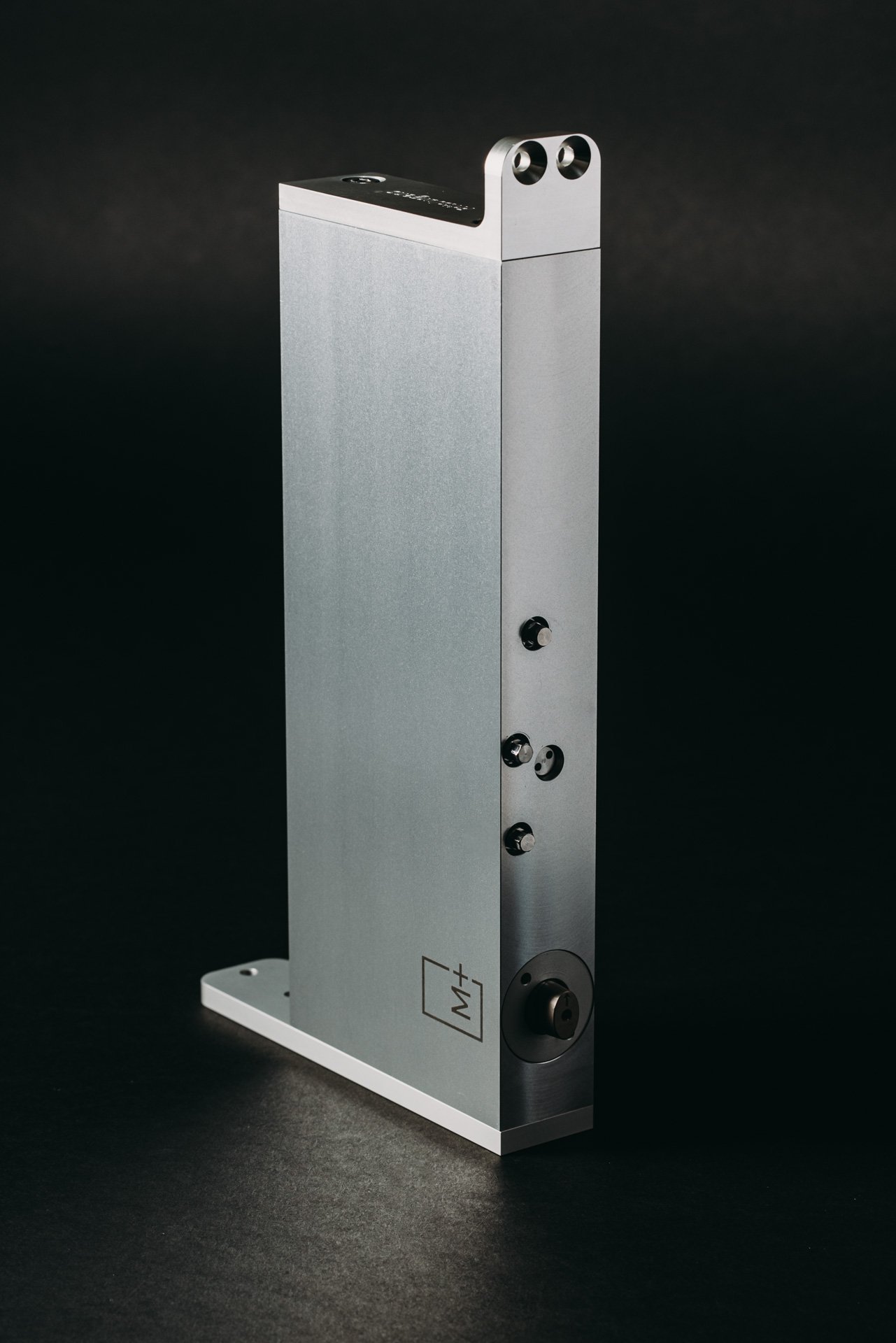

System M32+ and System M42+

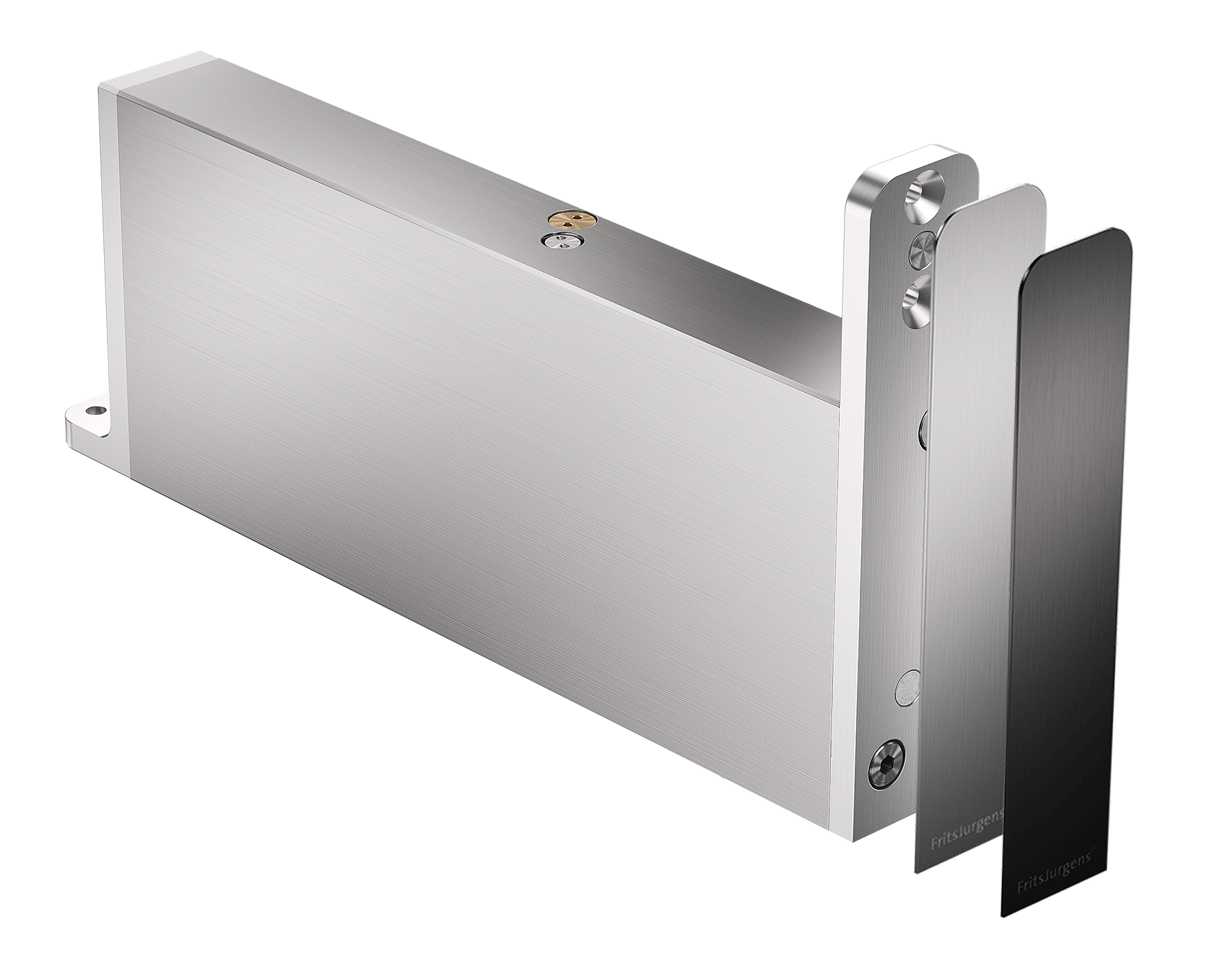

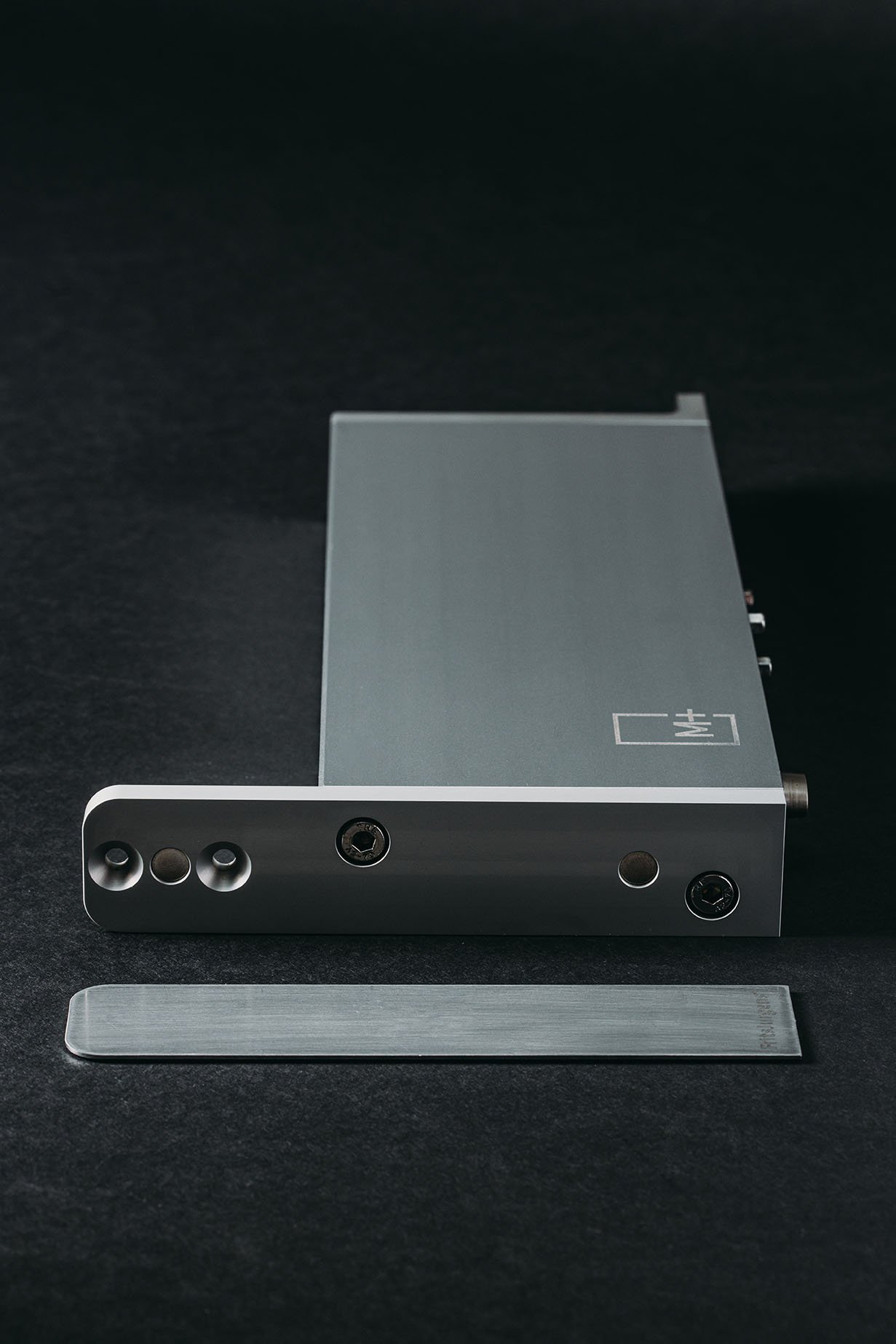

System M+ with cover plates

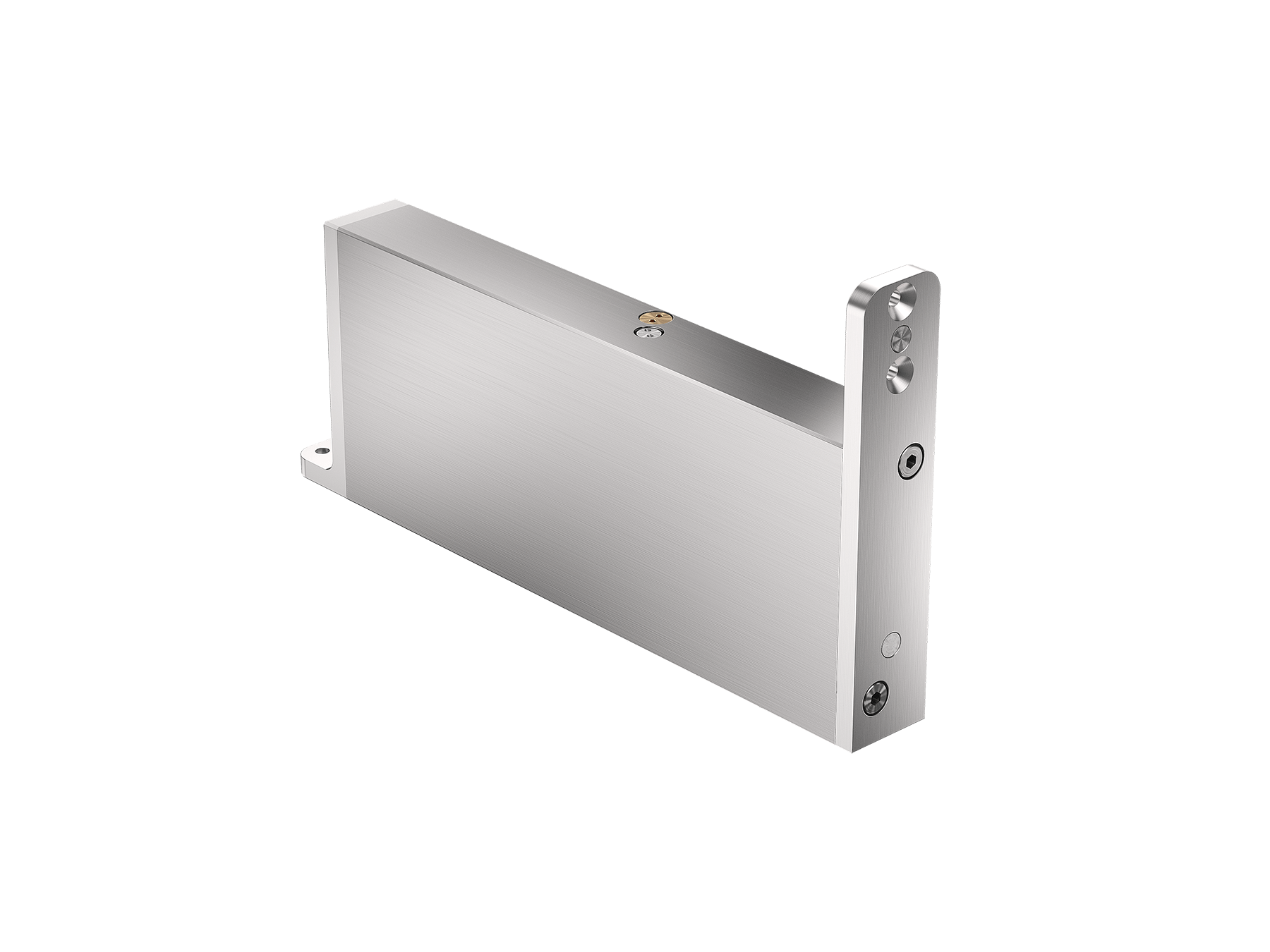

System M+ for maximum clear widths

Thanks to the fixed pivot point at 40 mm, this top pivot makes the most of any space. The top pivot is as close as possible to the side of the door. All available space is used, and the clear opening is as large as possible. In the open position, the pivot door is therefore minimally present. This is ideal for situations where a standard door width must be maintained. This top pivot is ADA compliant.

Pivot point: fixed at 40 mm
Top pivot: 40 mm
Finishes: Stainless steel and Black

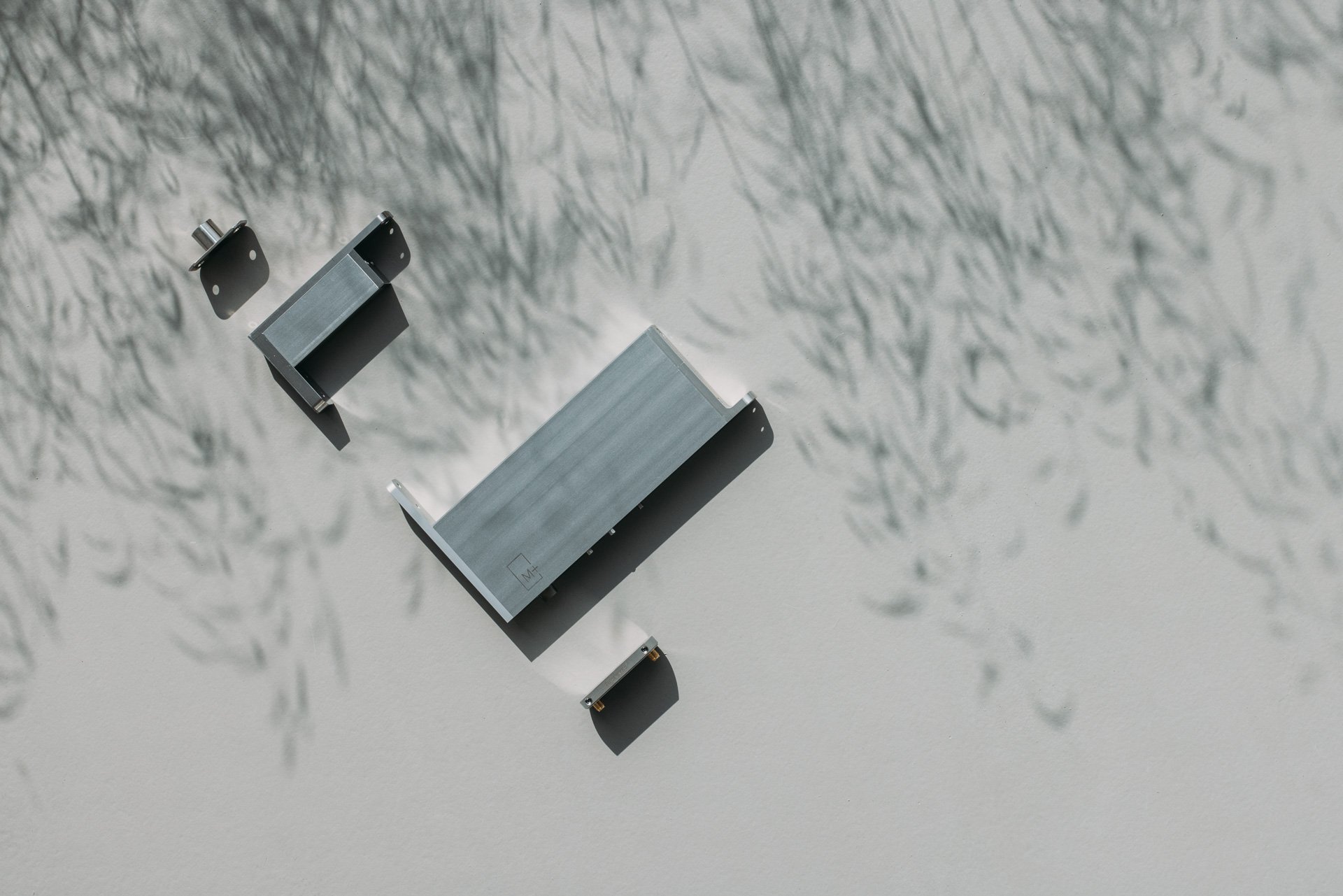

Components

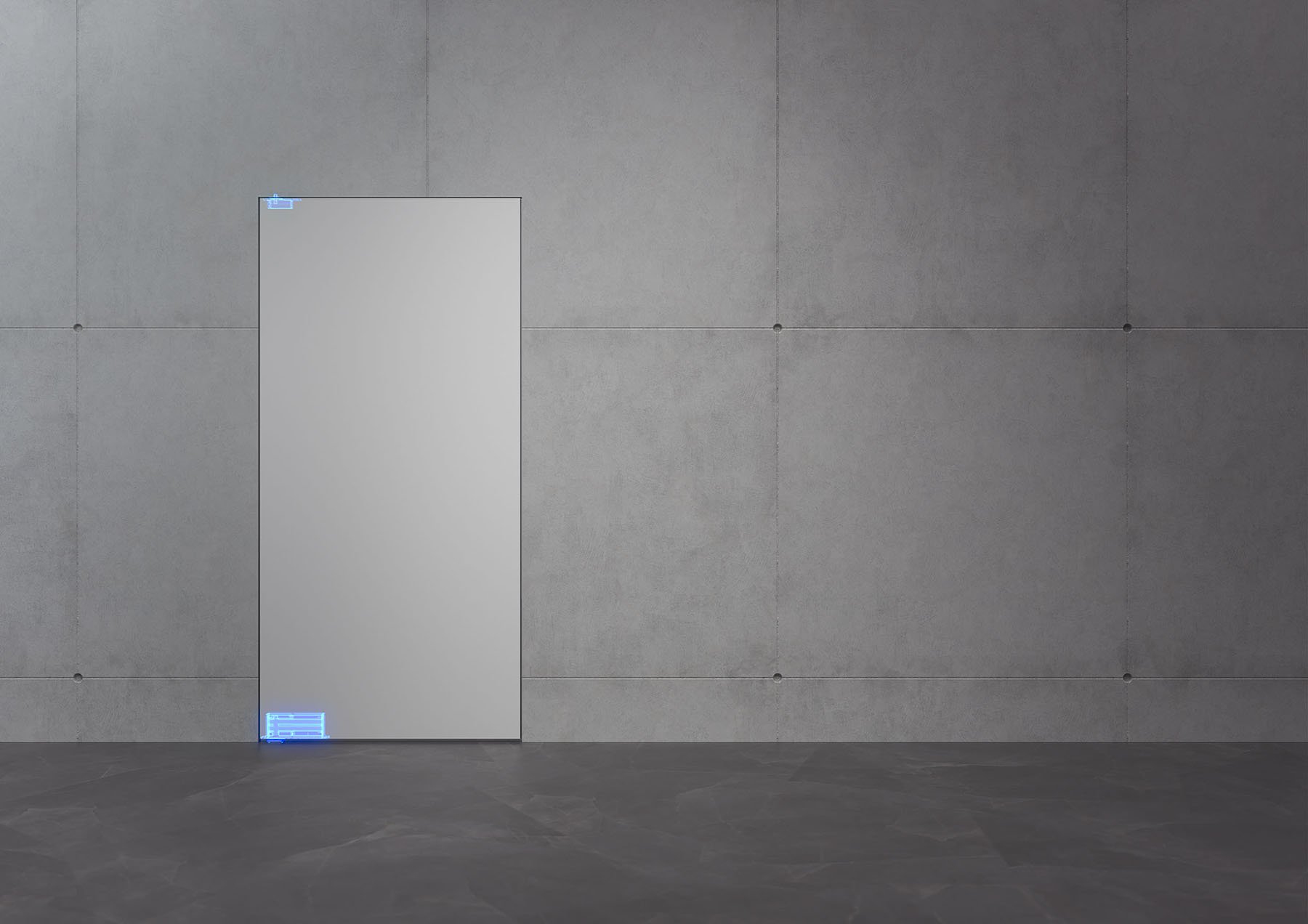

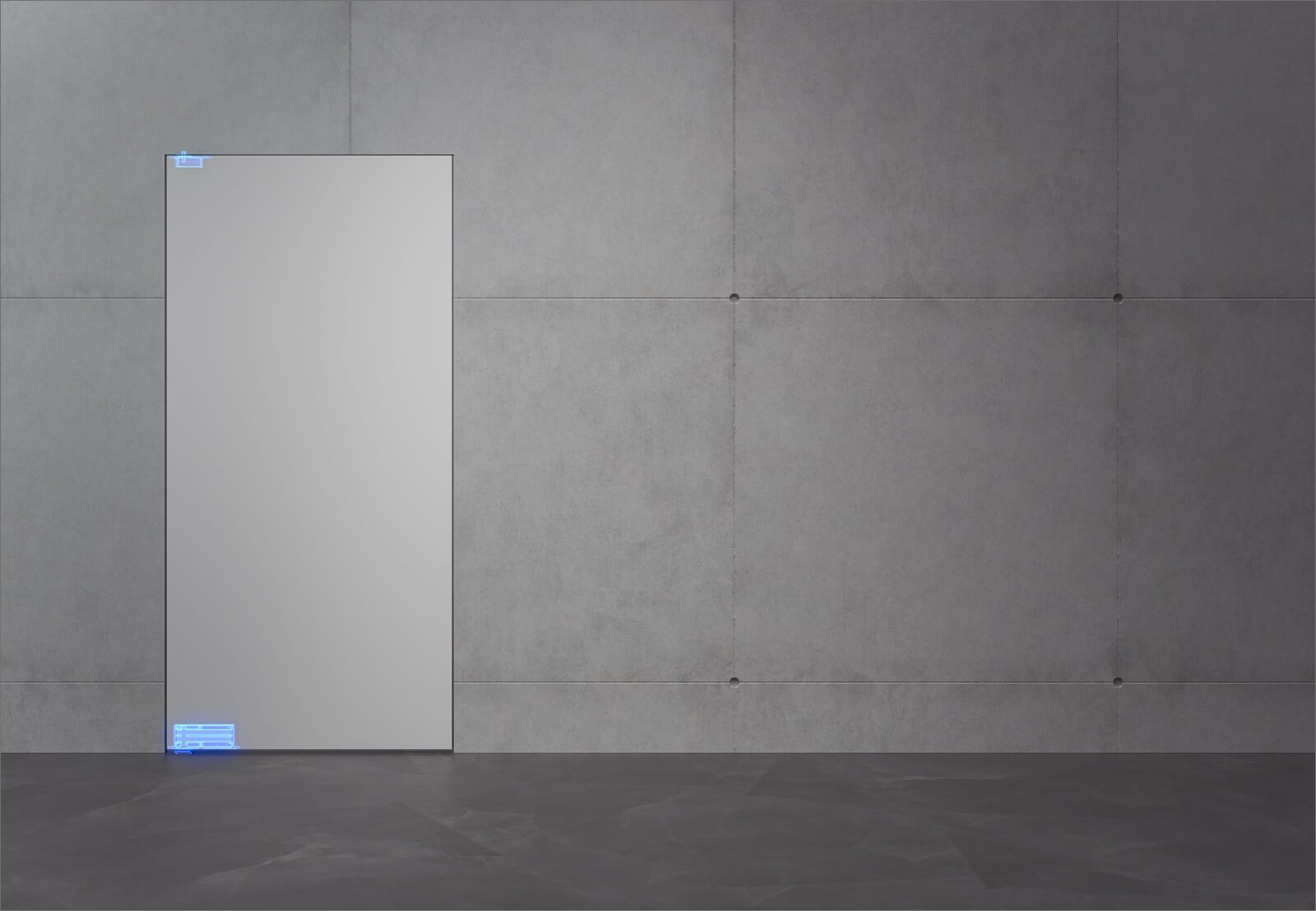

A pivot door needs various components – the pivot system, a floor plate, a ceiling plate, and a top pivot.

Click a component
close

Top pivot

The top pivot is mounted into the top of the door. It uses a so-called pinhole connection, in which the pin is fixed to the top pivot and goes into the hole in the ceiling plate when the door is placed.

FritsJurgens offers two types of top pivots: Top pivot Regular and Top pivot Cable Grommet. Top pivot Cable Grommet is designed to enable easy wiring through the door for lighting or electronic security.

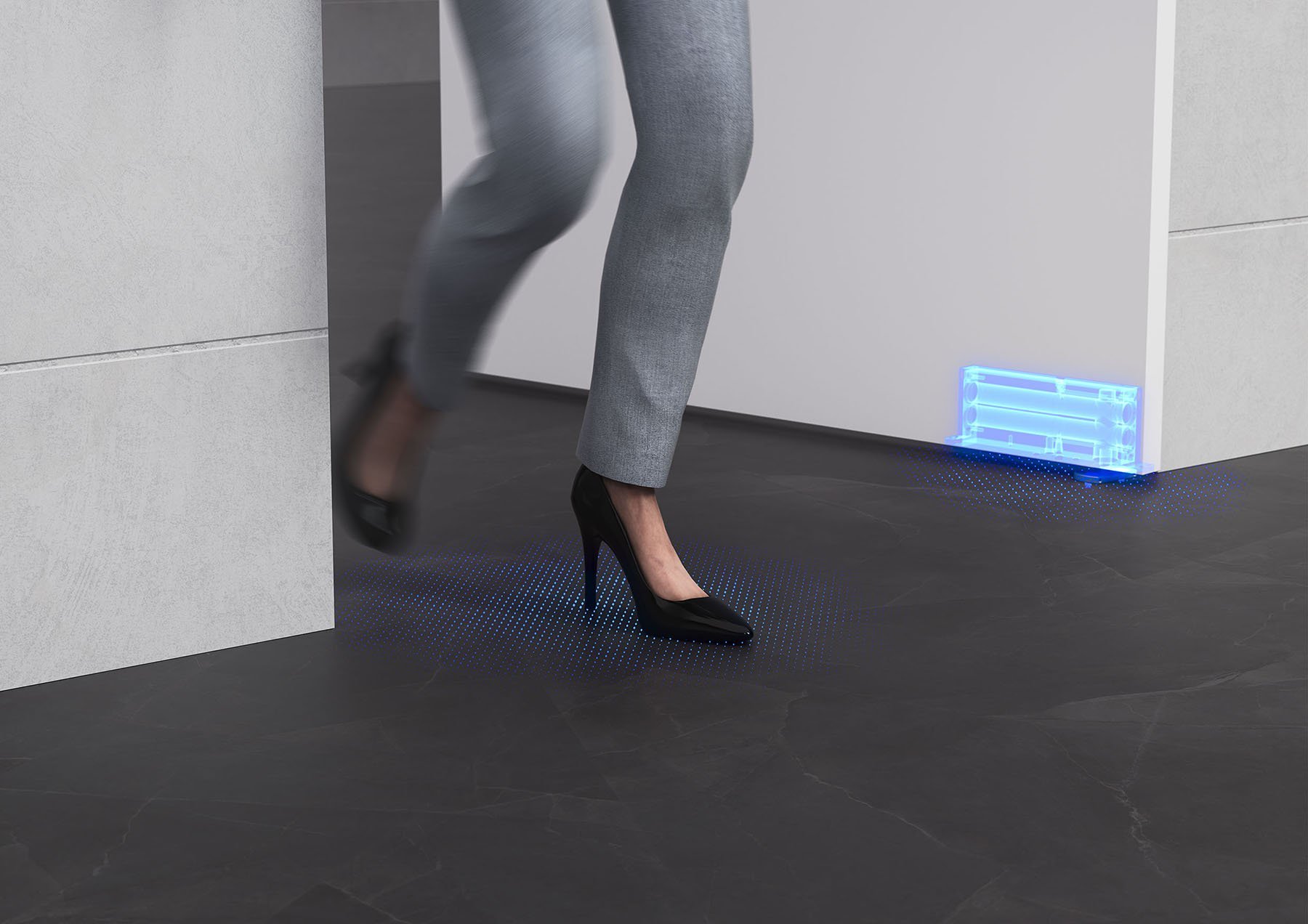

Bottom pivot

The bottom pivot is the pivot mechanism and driver of the pivot door and is fitted in the bottom side of the door. The pivot mechanism therefore is virtually invisible. FritsJurgens bottom pivots have a load bearing capacity for pivot doors up to 500 Kg.

The bottom pivot offers several features, depending on the choice of bottom pivot, such as: hold positions, self-closing, damper control, latch control, 30° speed control, free swing.
The bottom pivots placement determines the the spatial impact that thepivot door will have on its surroundings. Besides a more regular side placement to create pivot doors, FritsJurgens pivot hinges are also suitable for 360 degree rotating panels or walls.

Ceiling plate

The ceiling plate is fitted in the ceiling, where the pin of the top pivot seamlessly fits into the hole in the ceiling plate. The ceiling plate is available in two finishes: brushed stainless steel and black.

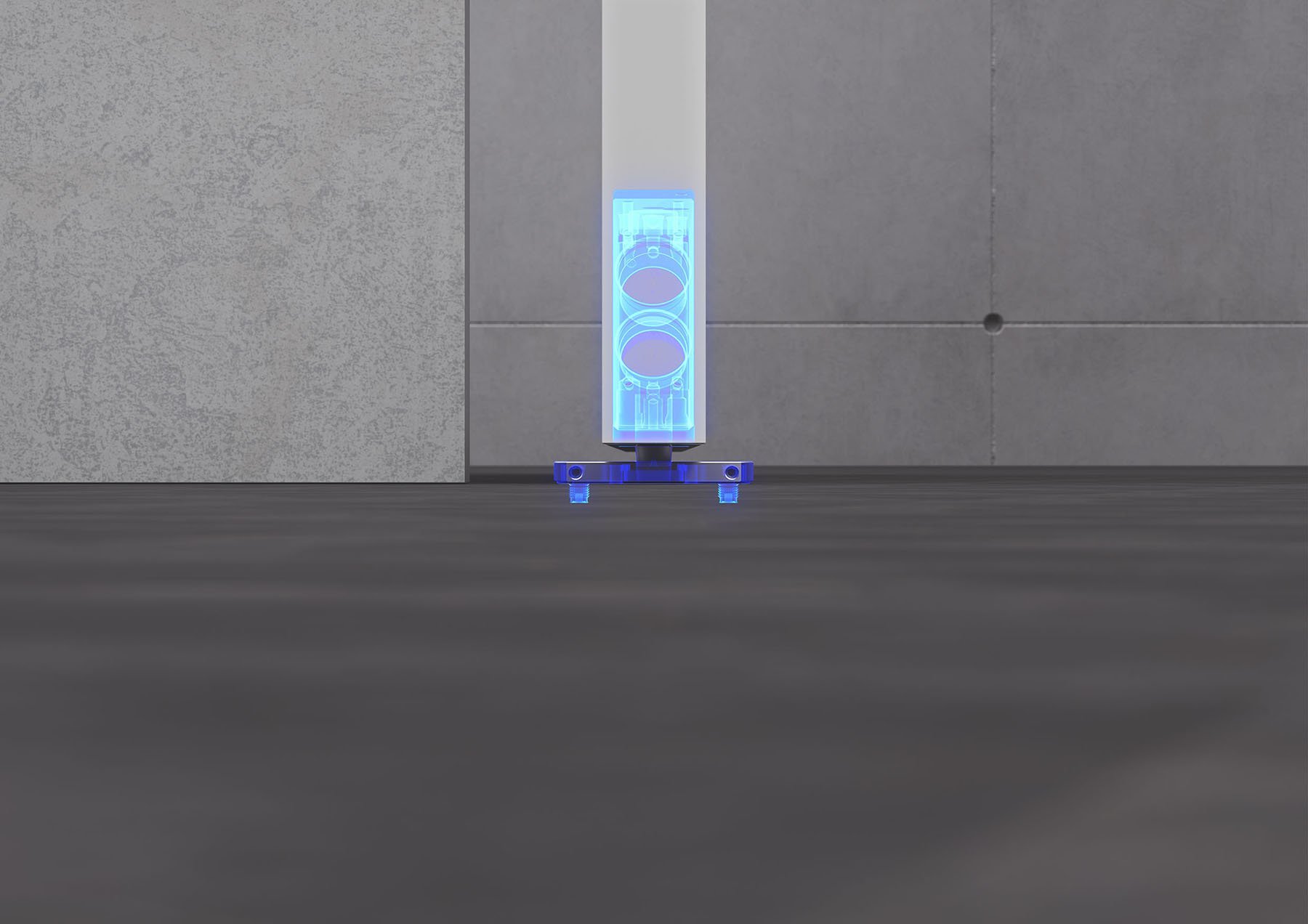

Floor plate

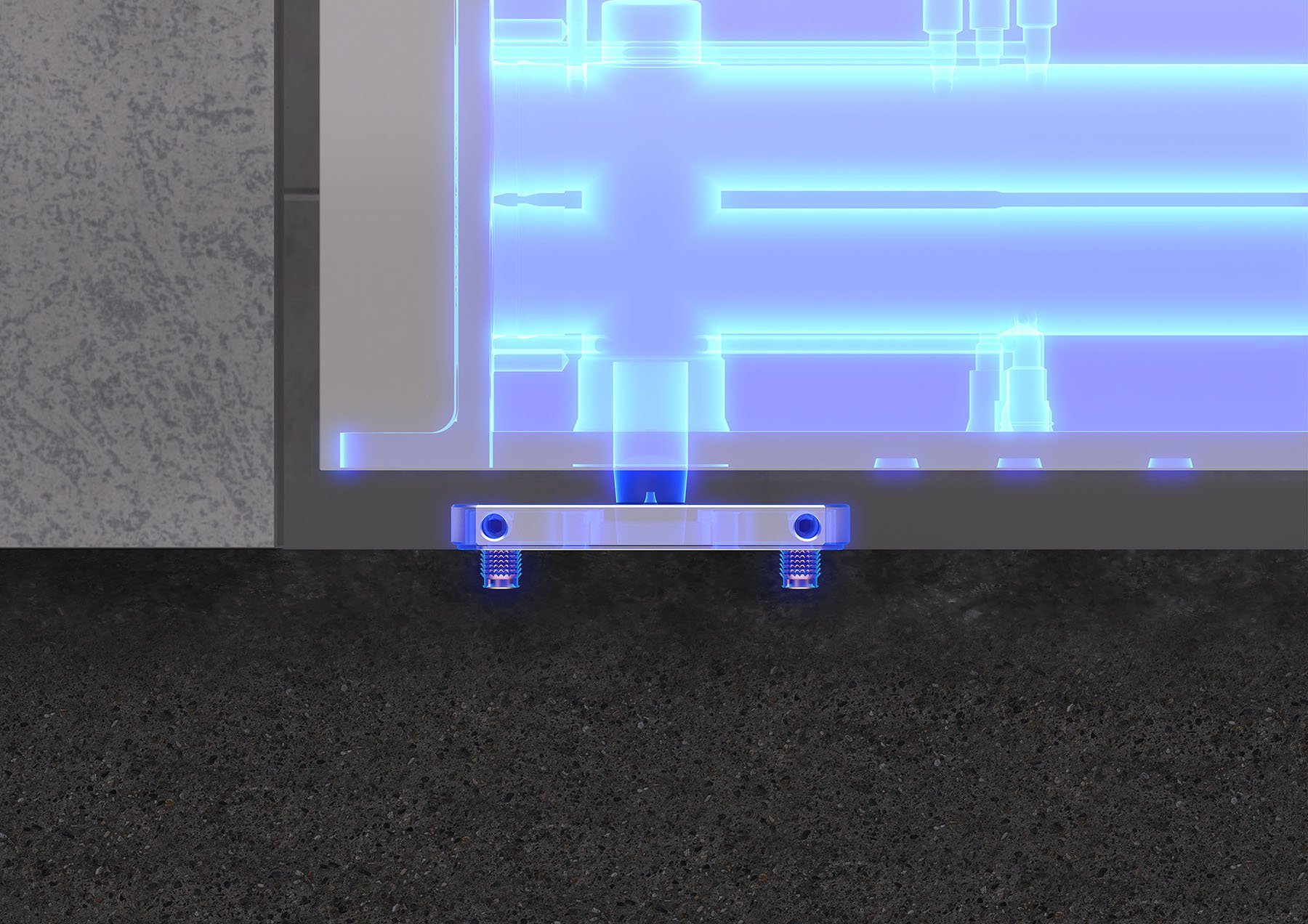

Every FritsJurgens floor plate is mounted 8 mm in the floor. This is sufficient for almost every floor type and makes it possible to combine FritsJurgens’ hinges with floor heating. Two longer, shortenable floor plate pins of 30 mm are included with the square floor plate designs.

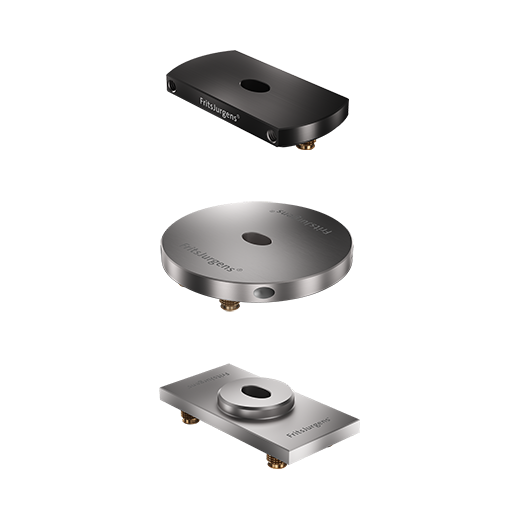

There are various floor plates available for System M+. The standard floor plate is available in four designs: brushed stainless steel (Series 420) and PVD black in a round and a square version. Also available is floor plate Flush, which can be integrated into thresholds and into interior floors. The floor plates by FritsJurgens are made of solid tempered steel and, therefore, entirely scratch resistant.

What is the right type for you?

System M+ comes in 7 different weight classes, all specifically designed for your pivot door weight and dimensions.

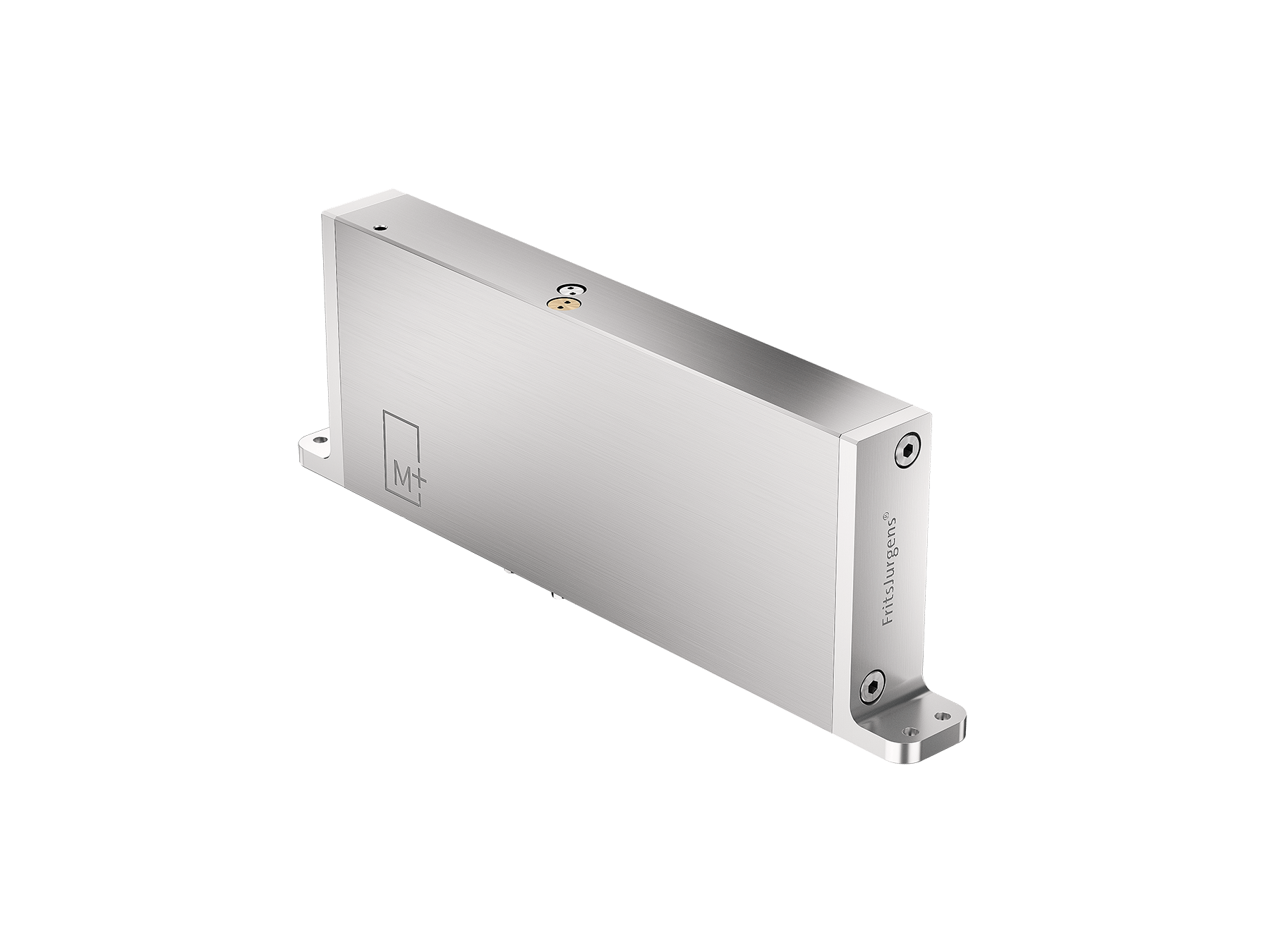

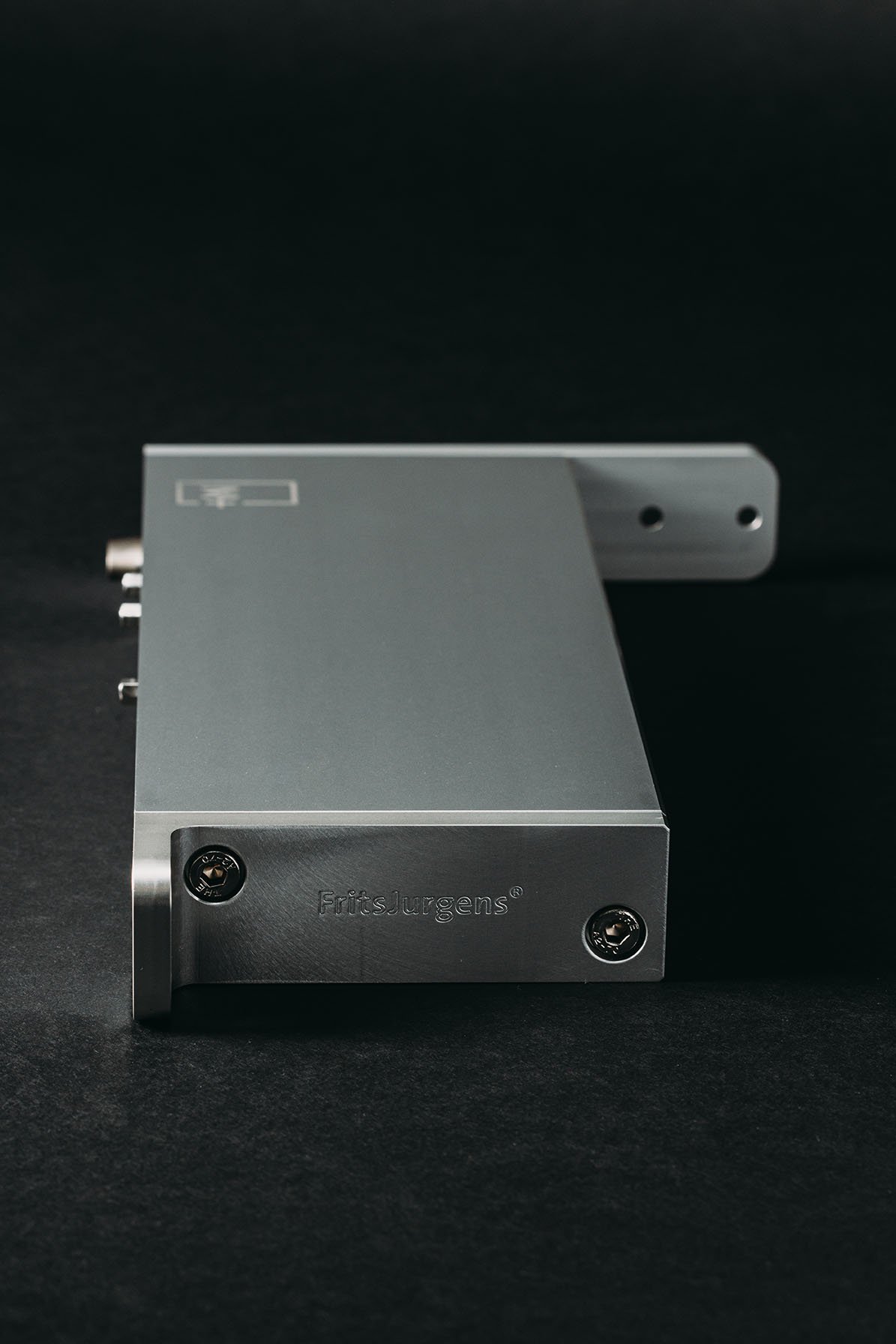

Weightclass A - E

System M+ Class A - E are for the most common doors. These hinges are smaller than class F and G and the minimum door thickness is 40 mm.

Dimensions: 294,8 x 32 x 99,6 mm
Weight: 2,6 kg
Min. Door thickness: 40 mm

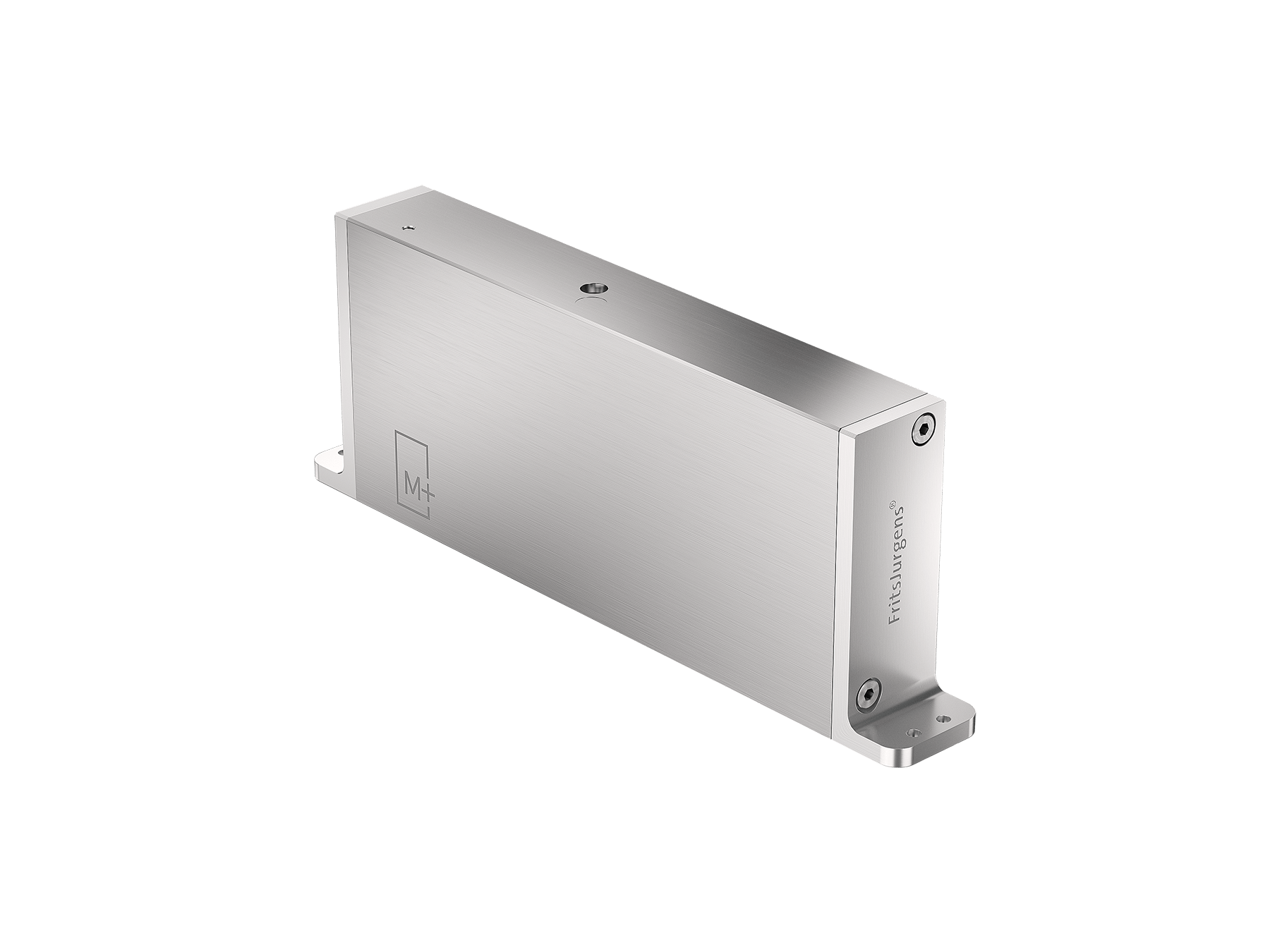

Weightclass F - G

System M+ Class F and G are for heavier doors. These hinges are also bigger as class A - E and therefor the door has to be at least 50 mm thick.

Dimensions: 308,2 x 42 x 112,7 mm
Weight: 3,6 kg
Min. door thickness: 50 mm

We have designed a selector where we lead you through each step to discover which type is best for you.

Specifications

System M+ — Class A-E

System Specifications
Dimensions 294,8 x 32 x 99,6 mm
Weight 2,6 kg
Material Stainless Steel | Anodized aluminum
Corrosion resistance EN 1670 - class 5 (norm:0-5)
Door Specifications
Door acting Single & double-acting
Door weight Between 20 and 500 kg
Minimum door thickness 40 mm
Maximum door width 400 - 5000 mm
Top gap 4-10 mm
Bottom gap 11 mm
Hold positions 90º, -90º and 0º
Guarantee 2 years
Functionalities
Free Swing
Damper control
30° Speed Control
Latch Control

System M+ — Class F-G

System Specifications
Dimensions 308,2 x 42 x 112,7 mm
Weight 3,6 kg
Material Stainless Steel | Anodized aluminum
Corrosion resistance EN 1670 - class 5 (norm:0-5)
Door Specifications
Door acting Single & double-acting
Door weight Between 20 and 500 kg
Minimum door thickness 50 mm
Maximum door width 400 - 5000 mm
Hold positions 90º, -90º and 0º
Guarantee 2 years
Functionalities
Free Swing
Damper Control
30° Speed Control
Latch Control

Downloads

2D drawing M32+
DWG File, 1.05 MB
2D drawing M42+
DWG File, 1.01 MB
3D drawing M32+ (BIM)
RVT File, 7.86 MB
3D drawing M32+ 40mm (STEP)
STEP File, 1.95 MB
3D drawing M32+ 70mm (STEP)
STEP File, 2.32 MB
3D drawing M42+ (BIM)
RVT File, 7.86 MB
3D drawing M42+ 40mm (STEP)
STEP File, 2.30 MB
3D drawing M42+ 70mm (STEP)
STEP File, 1.77 MB
Fine tuning card
PDF File, 389.43 KB
Milling & Mounting Manual M/M+
PDF File, 3.89 MB
Specification Text M32+
RTF File, 2.37 KB
Specification Text M42+
RTF File, 2.46 KB
Technical Sheet System M/M+ with TP-40 and TP-70
PDF File, 803.34 KB
Smart installation

Smart installation

All of FritsJurgens’ pivot hinges can be milled and installed quickly and easily. On-site, installation takes only around 30 minutes.

Both in new and retrofit situations, the installation is done in four steps: mounting the floor plate, mounting the ceiling plate, installing the door, and fine-tuning the door.

Video's

Self-closing

The System M pivot hinge is self-closing. This means that the door automatically moves towards the 0° position after being opened. The pivot door moves elegantly through the entire motion. Absolute control with FritsJurgens Inside.

Soft close

The soft close function in the System M makes the door move in a single fluent motion. Effortlessly and as soft as a whisper the door elegantly closes.

Wall protection

When a door fitted with the FritsJurgens System M pivot hinge is opened, the System M protects the door against touching the wall because of the opening damping. The hydraulic backcheck in the System M ensures the pivot door is slowed down strongly when reaching 70° to prevent touching the wall. The opening damping makes the door open elegantly.

Spatial Impact

A pivot door is a design statement with a large spatial impact. Therefore, the hinges are double acting, which means they open towards both sides. By simply keeping the door still at 0°, 90° or -90° the door will hold these positions, allowing you to determine the spatial impact of your pivot door.

With the touch of a finger

With just the touch of a finger, the door is set into motion. An effortless experience and a single fluent movement. Perfectly balanced.

Double acting

The System M pivot hinge is double acting. This means that the pivot doors can be opened and put into hold positions towards both sides. This gives you the freedom to determine the use of the pivot doors and the impact they have on the space.

Frequently Asked Questions

What is the difference between System M and System M+?
System M+ has two extra movement adjustability options – 30° Speed Control and Latch Control – to fine-tune the door’s movement. System M and System M+ are both equipped with Damper Control. Besides the difference in movement adjustability, System M+ is suitable for doors between 80 and 500 kg, System M for doors between 20 and 209 kg.
How do I choose the right type?
To select the right type of System M+ for your pivot door, use the FritsJurgens Selector.
How do I know if System M is the right choice for my pivot door?
To find out if System M+ is the right choice for your door design, use the FritsJurgens Selector.
