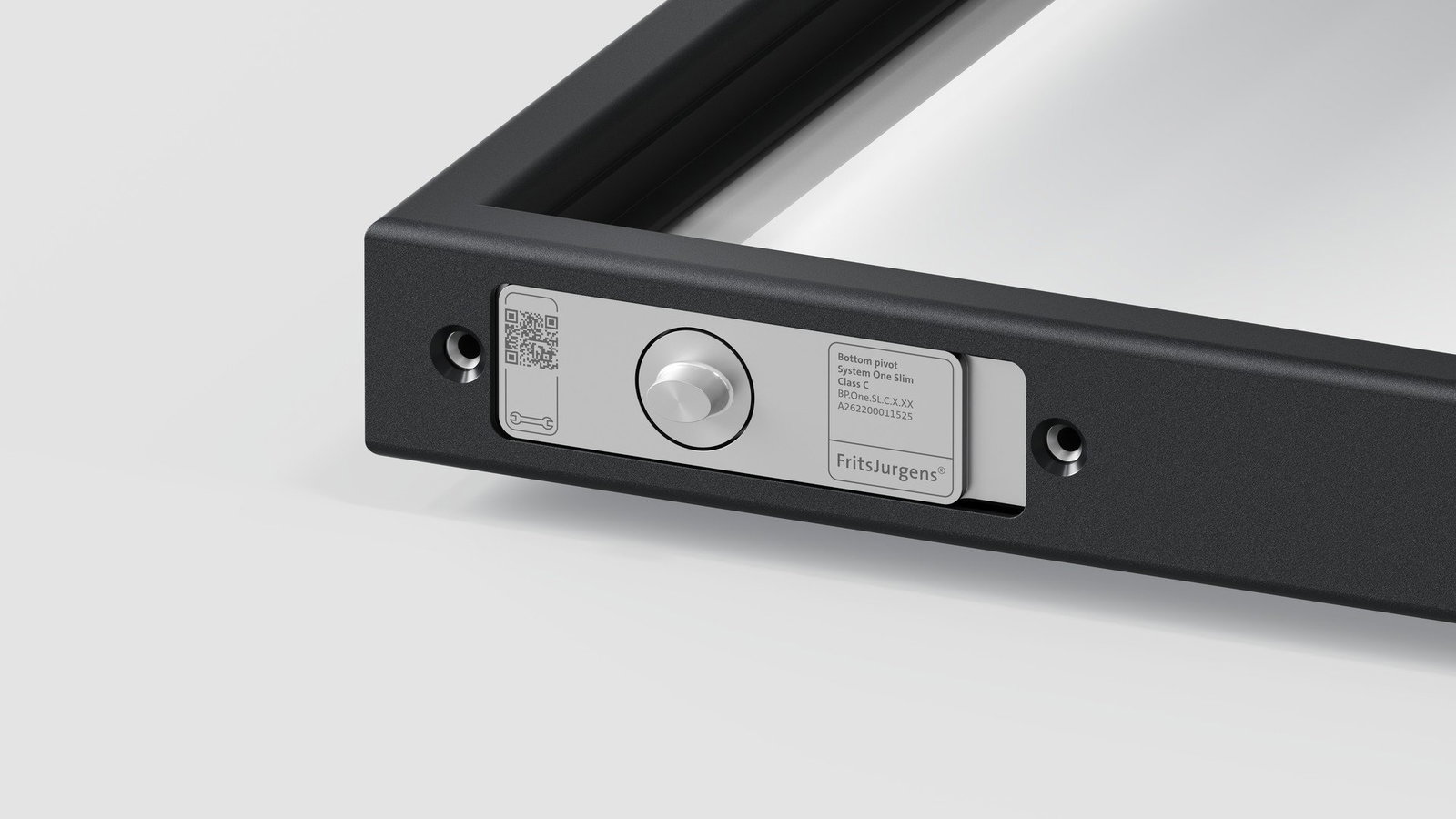

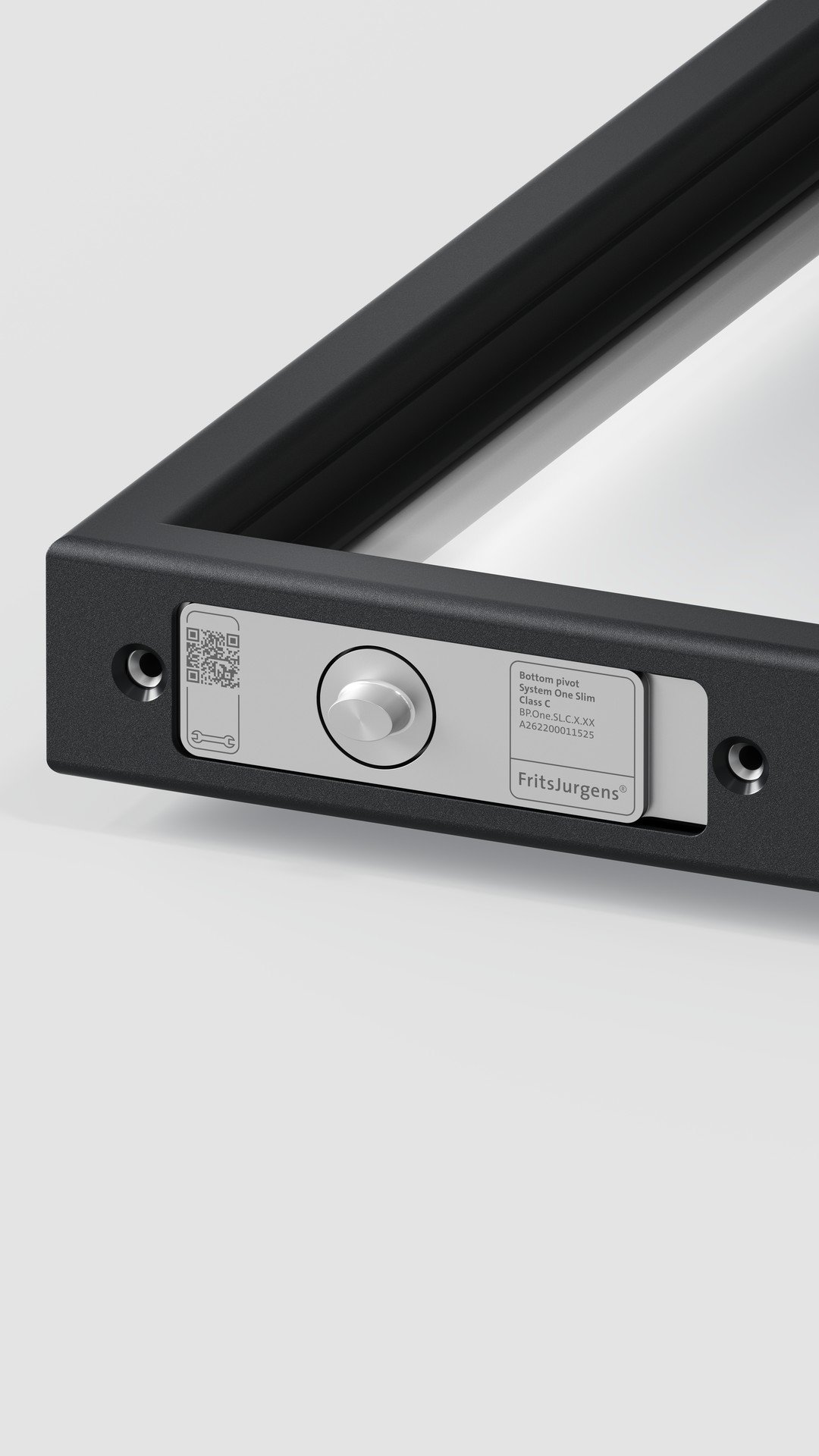

FritsJurgens for minimal profiles
Full FritsJurgens performance, at just 18 mm
Three products, one matched family, for the slim steel and aluminium profiles architects specify today.
Everything essential, nothing excessive
18 mm, top and bottom
Both pivots are 18 mm high, including the step that seats into the profile. The line of the profile continues from floor to ceiling, uninterrupted by the hardware inside it.
ProfileFit, without adapters
Integrated profile brackets slide into a prepared cutout of 114 x 32 mm and bolt through with two countersunk M6 bolts. No adapters. No additional parts.

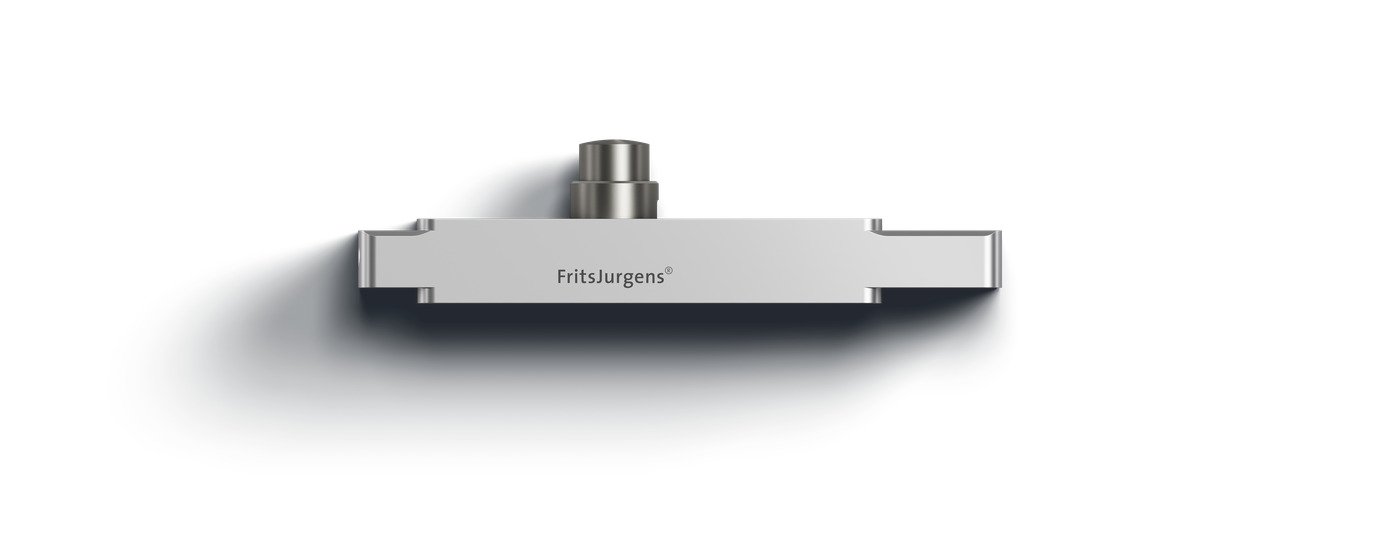

A top pivot that extends
A telescopic pin of 15 mm diameter winds out 19.5 mm from an 18 mm housing, for a secure connection with the ceiling plate inside a minimal profile.
ProfileFit in motion
Designed for minimal profile doors
Ultra slim steel and aluminium profiles have redefined what an interior can look like: floor to ceiling glass, uninterrupted sightlines, frames reduced to the minimum. Conventional pivot hardware is too large for those frames. The Slim products were designed for them.
Steel framed glazing
Seamless glass pivot doors, where the pivot fits inside the narrowest stile.
Minimal profile doors
Slim steel doors with wooden panels, keeping the line of the frame intact.
Connecting spaces
Pivoting walls and room dividers that create clean sightlines between spaces, in profiles so slim they almost disappear.
The three products
Two bottom pivots and the top pivot that belongs with both. Sold as complete sets only, each in one box.
System One Slim
Free swing 360 degrees, no hold positions. For doors that should turn freely and stop wherever you leave them. Class C, up to 209 kg.
System Fx Slim
Hold positions at 0, 90, 180 and 270 degrees with a gentle holding force of 20 Nm, free swing in between. The first and only system to offer them in 18 mm. Class C, up to 209 kg.
Top pivot Slim
The top half of both sets, at the same 18 mm. Telescopic pin, 5 mm adjustment to either side, no cable entry.
Which solution for your project
The Slim products are made for interior doors up to 209 kg. Two questions decide the route: does the door have to stay open in a position, and how heavy is it. Weight class depends on door width, so use the product selector for the definitive class.
Which solution for your project
| Slim profile, free swinging | System One Slim with Top pivot Slim, 360 degree free swing |
| Slim profile, the door has to stay open | System Fx Slim with Top pivot Slim, hold positions at 0, 90, 180 and 270 degrees |
| Pivoting wall in a slim profile | System Fx Slim with Top pivot Slim, hold positions at 0, 90, 180 and 270 degrees |
| Heavier than 209 kg | The regular System One with the Top pivot Reversed, up to 500 kg |
The sets
Each set holds the bottom pivot, the Top pivot Slim, a floor plate, a ceiling plate and the mounting material, in one box.
Available sets
| System One Slim, Class C | System One Slim, Top pivot Slim, squared floor plate (non-adjustable), ceiling plate, mounting material. Stainless steel or black. |
| System Fx Slim, Class C | System Fx Slim, Top pivot Slim, squared floor plate (radially adjustable), ceiling plate, mounting material. Stainless steel or black. |
Buy now
Request your pivot hinge system through the FritsJurgens Selector right away or find a dealer near you.
