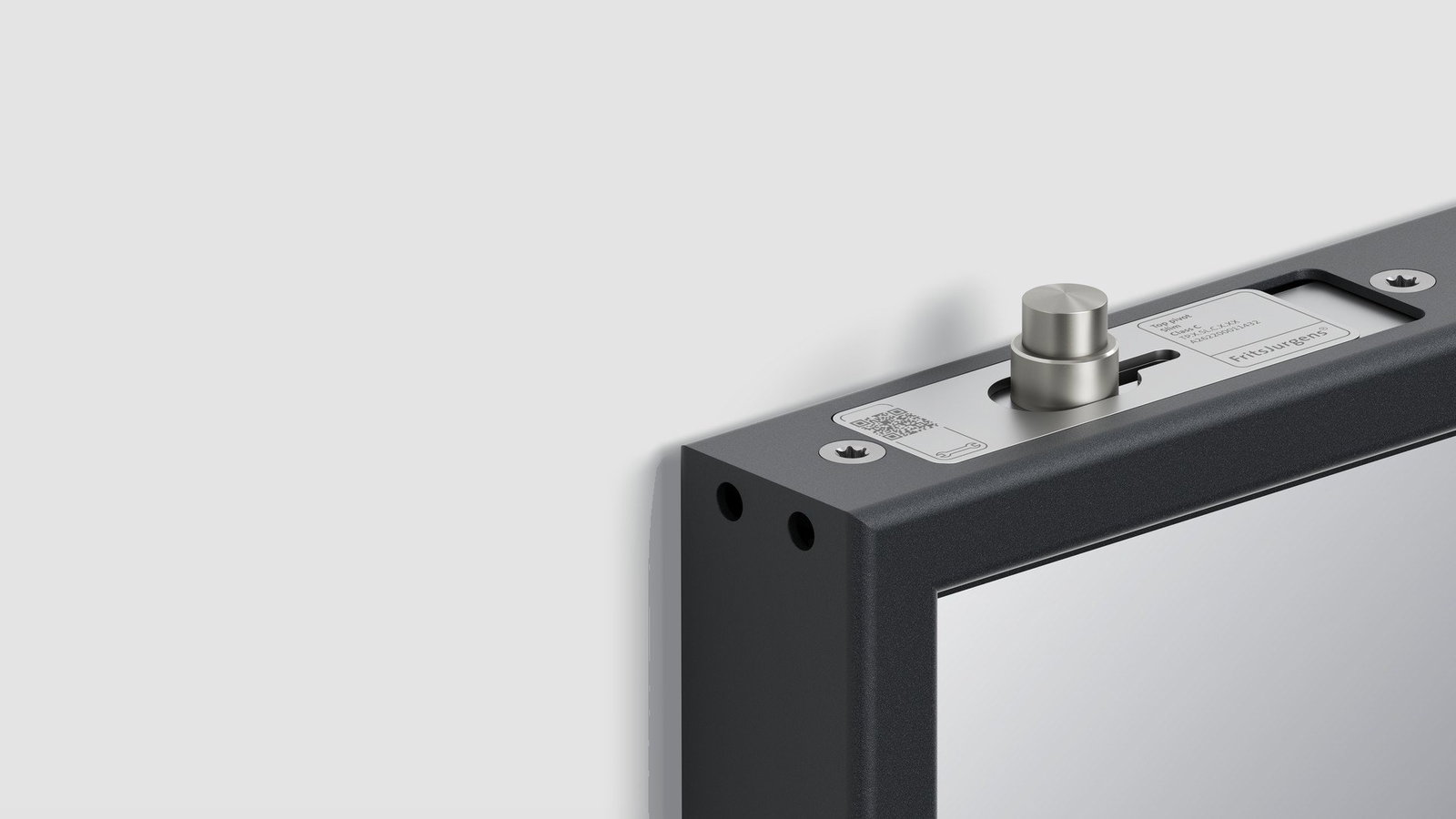

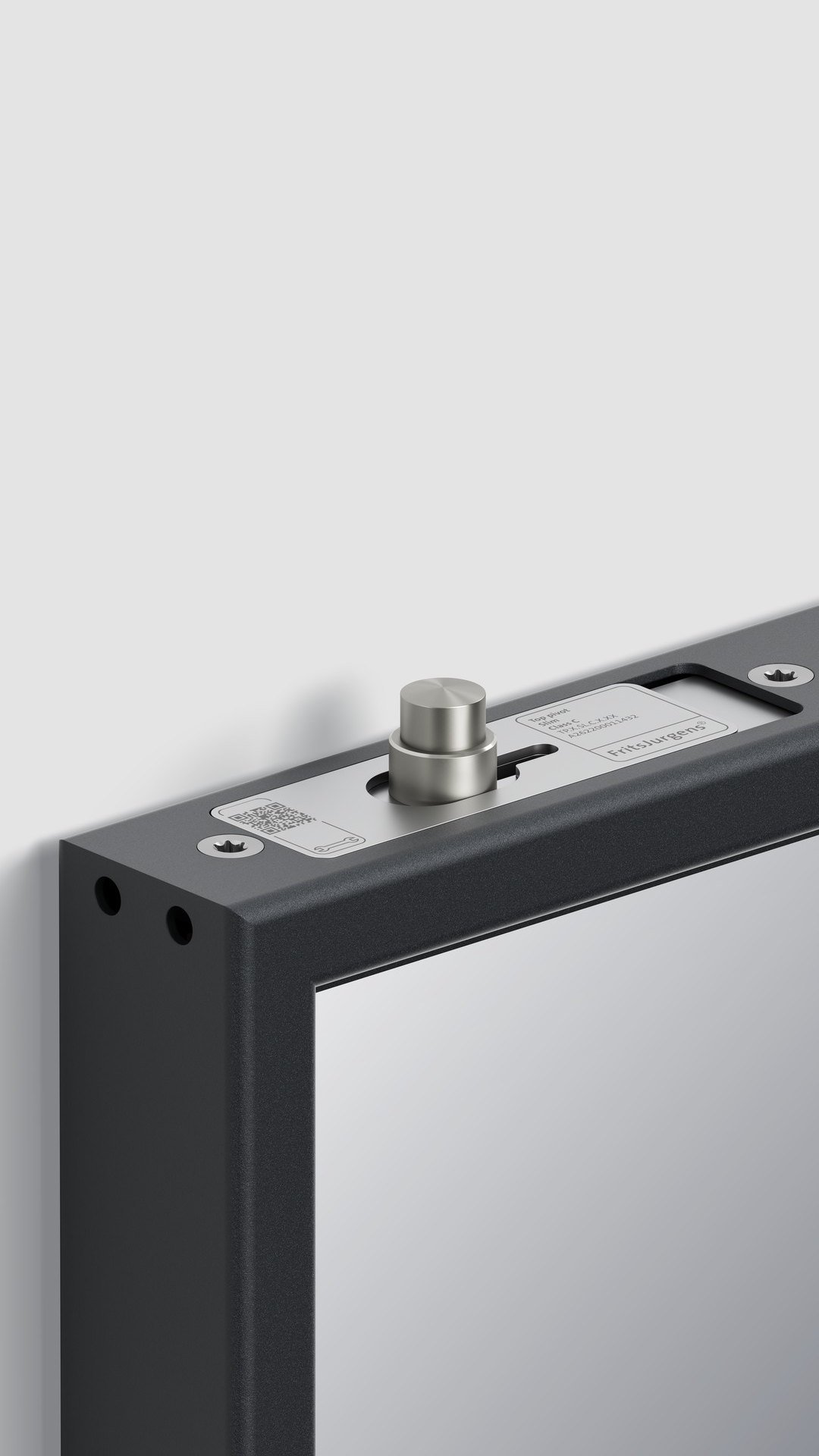

Top pivot Slim
Telescopic · 18 mm · Class C, up to 209 kg
The top half of every Slim set. A telescopic pin reaches its full engagement depth from a housing of just 18 mm.
Designed for minimal profiles

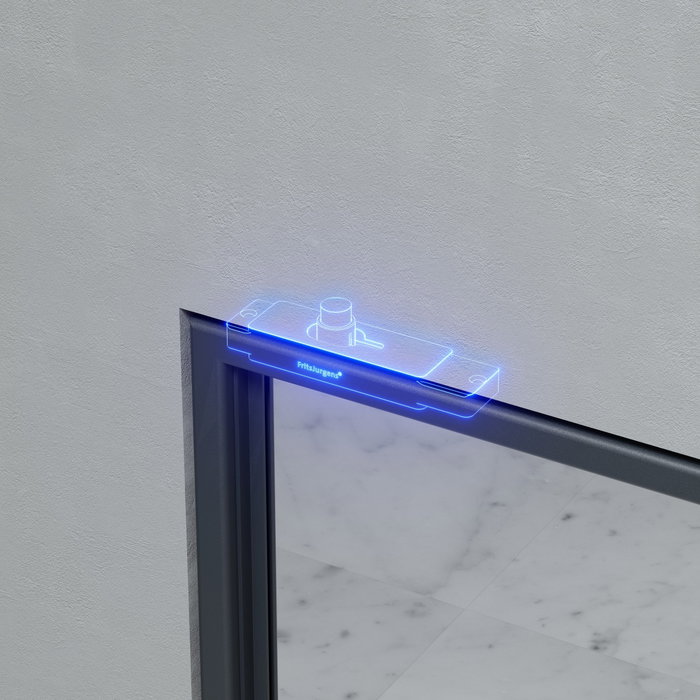

Telescopic pin
A pin of 15 mm diameter winds out 19.5 mm from an 18 mm housing, for a secure connection with the ceiling plate inside a minimal profile.
Adjustable after installation
5 mm to the left and 5 mm to the right, so the door can be aligned once it hangs.
Matches the bottom pivot exactly
Same footprint of 137 x 32 x 18 mm and the same cutout of 114 x 32 mm as System One Slim and System Fx Slim.

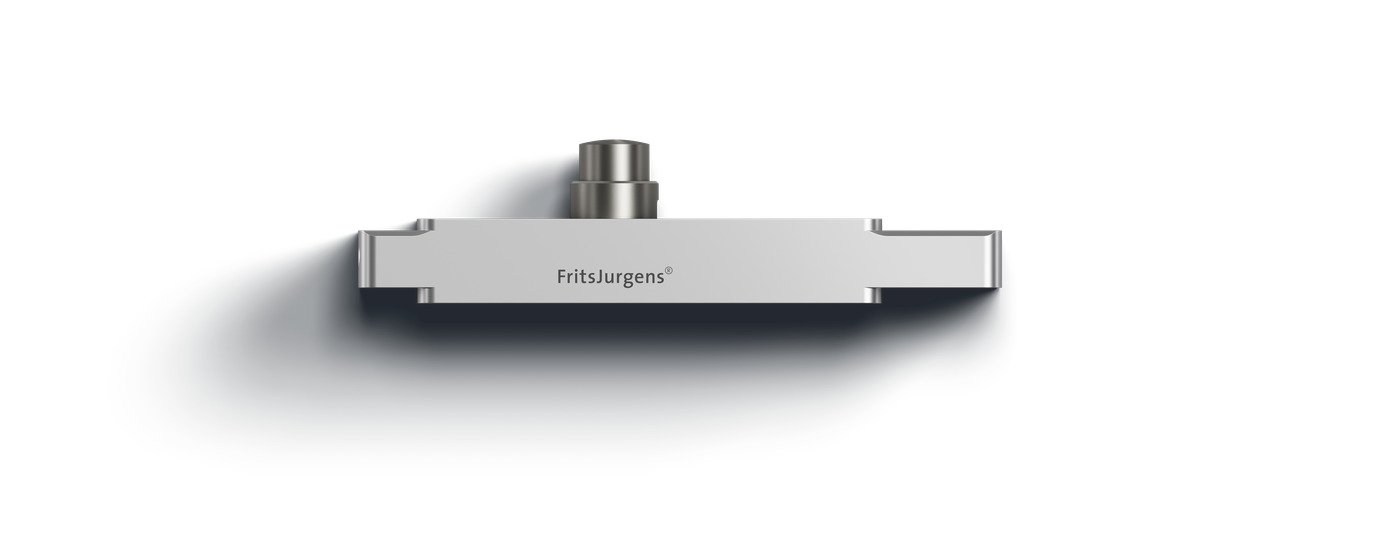

Retracted and extended
Pairs with
The Top pivot Slim is part of every Slim set and is not sold separately. Which set you need depends on whether the door has to stay open in a position.
System One Slim
Free swing 360 degrees, no hold positions. For doors that should turn freely and stop wherever you leave them.
System Fx Slim
Hold positions at 0, 90, 180 and 270 degrees, free swing in between. For doors that have to stay open.
The Slim products cover interior doors up to 209 kg. For heavier doors, up to 500 kg, the route is the regular System One with the Top pivot Reversed.

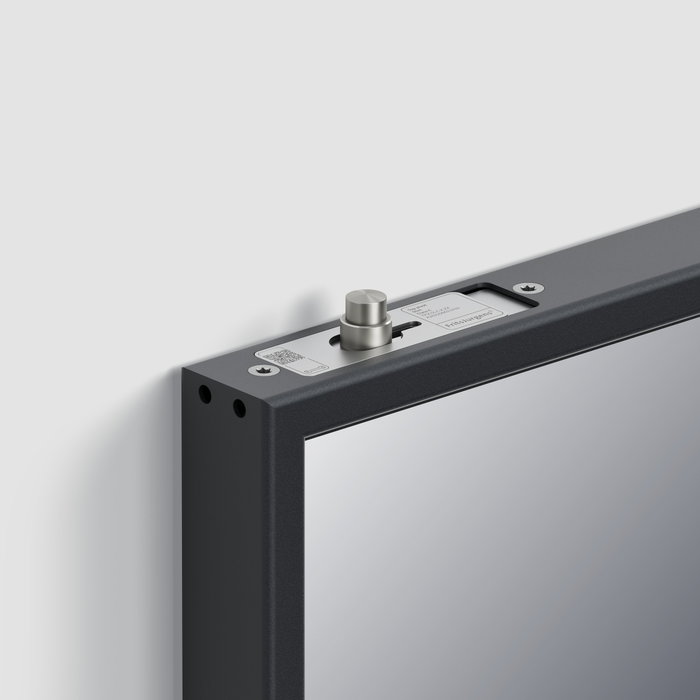

Inside the profile
Telescopic movement in an 18 mm housing, and the profile closed over it.
At a glance
One version, in one class. The Top pivot Slim has no colour variant and no cable entry.
Top pivot Slim - Class C
| System | |
|---|---|
| Dimensions | 137 x 32 x 18 mm |
| Height | 18 mm, including the profile step |
| Cutout | 114 x 32 mm |
| Pin | 15 mm diameter, telescopic, winds out 19.5 mm |
| Adjustment | 5 mm to the left and 5 mm to the right |
| Cable entry | |
| Material | Stainless steel and anodised aluminium |
| Fixing | Slide-in, bolt-through M6 (2x) |
| Door | |
| Profile | Box profile 40 x 20 x 2 mm (minimum), steel or aluminium |
| Door weight | Class C, up to 209 kg, depending on door width |
| Pivot point | From 70 mm to middle placement |
| Top gap | 4 - 10 mm |
| Application | Interior doors |
| Art.no. | TP.X.SL.C.X.XX |
