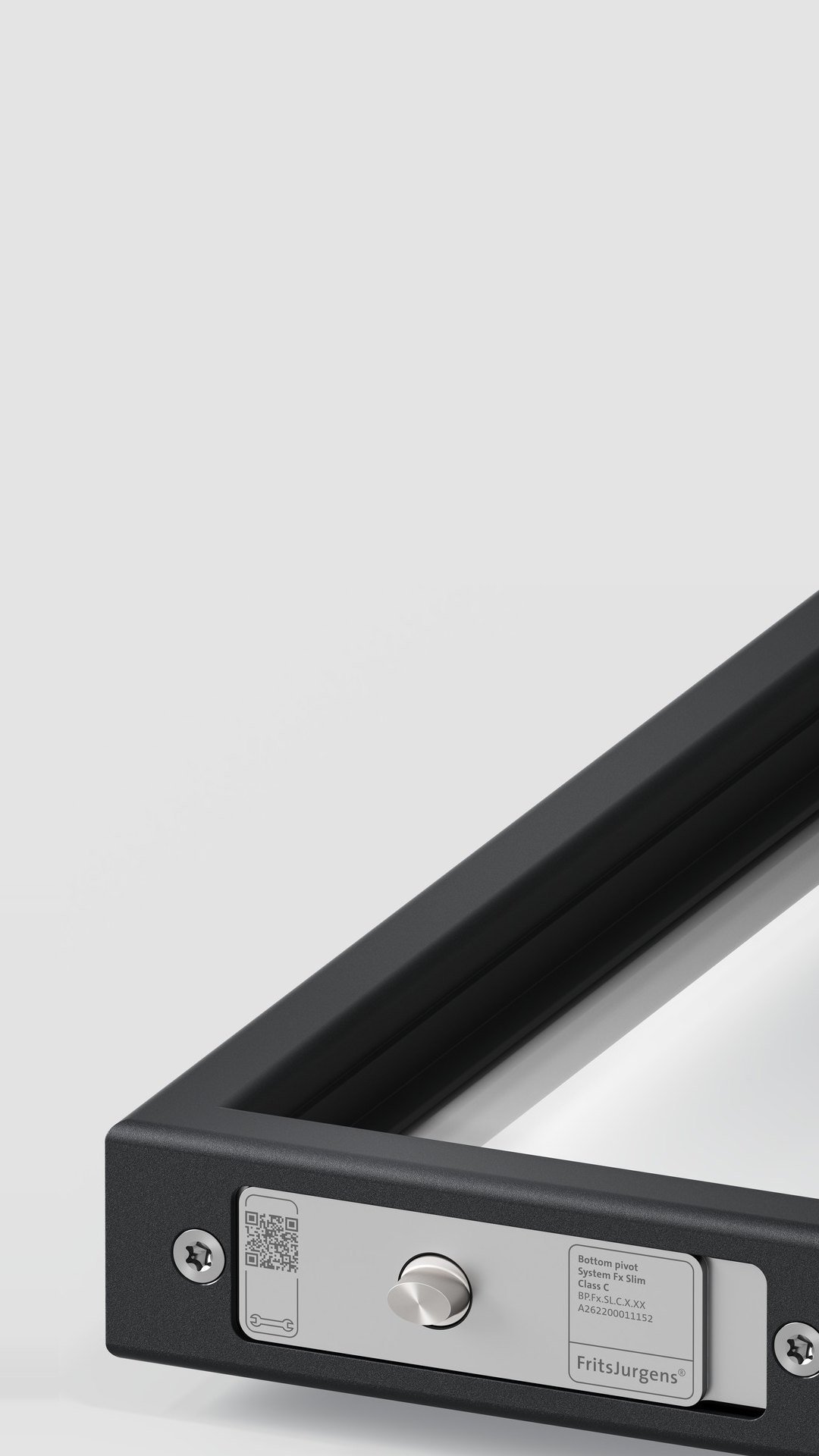

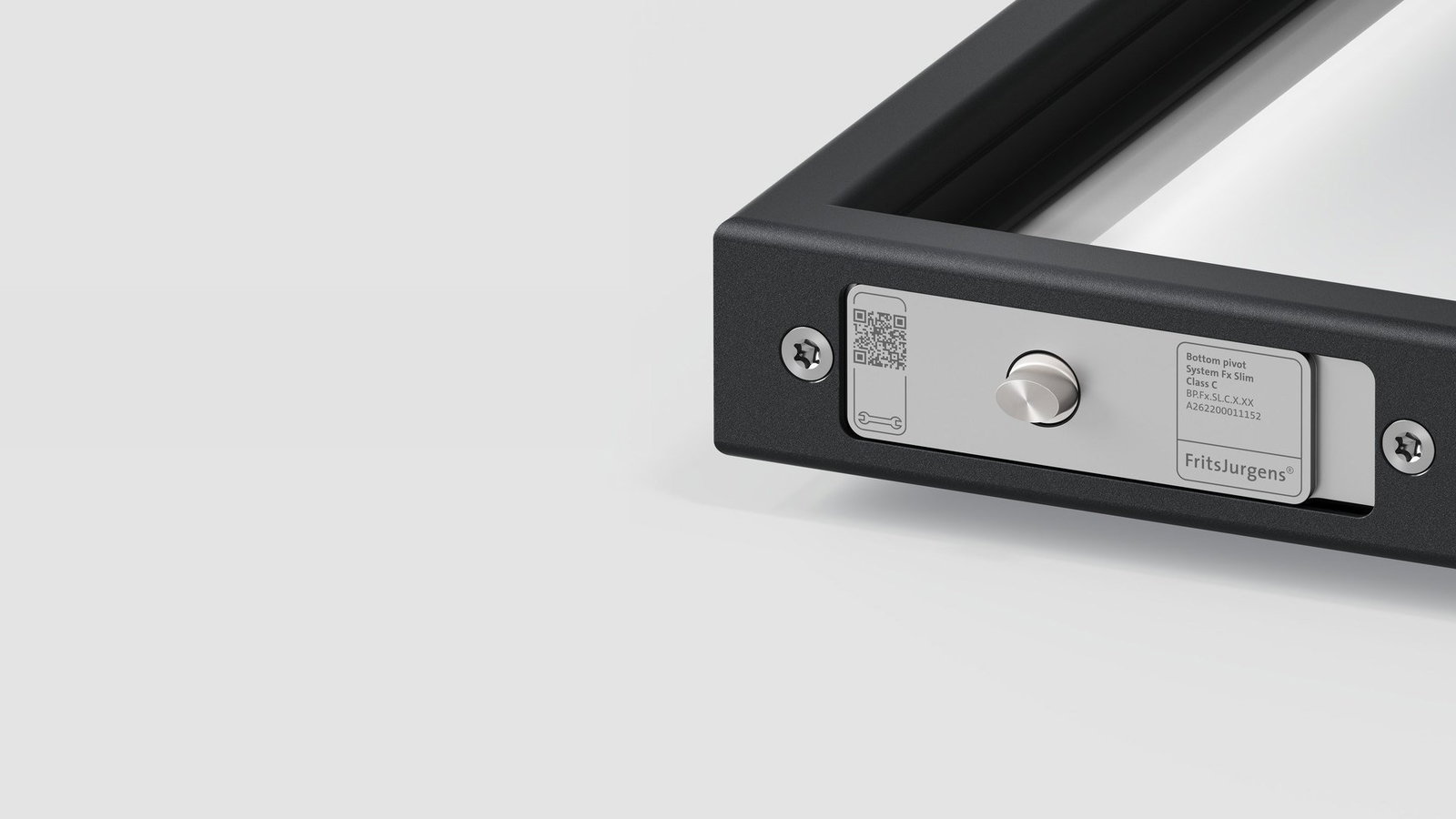

System Fx Slim
Hold positions · 18 mm · Class C, up to 209 kg
The first and only pivot system with hold positions at just 18 mm in height. The door holds at every 90 degrees.
Designed for minimal profiles
Hold positions in 18 mm
The door holds at 0, 90, 180 and 270 degrees with a gentle holding force of 20 Nm, in a system 18 mm high against 38 mm for System Fx in a solid door.
Free swing in between
Between the hold positions the door swings freely. Within 10 degrees of a hold position it is drawn gently into it.
ProfileFit, without adapters

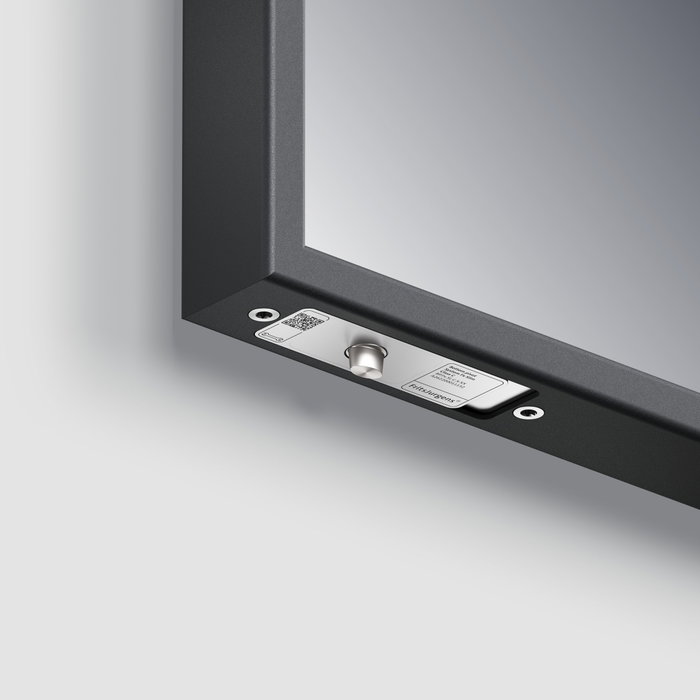

Integrated profile brackets slide into a prepared cutout of 114 x 32 mm and bolt through with two countersunk M6 bolts. No adapters, no additional parts.
What a System Fx Slim set contains

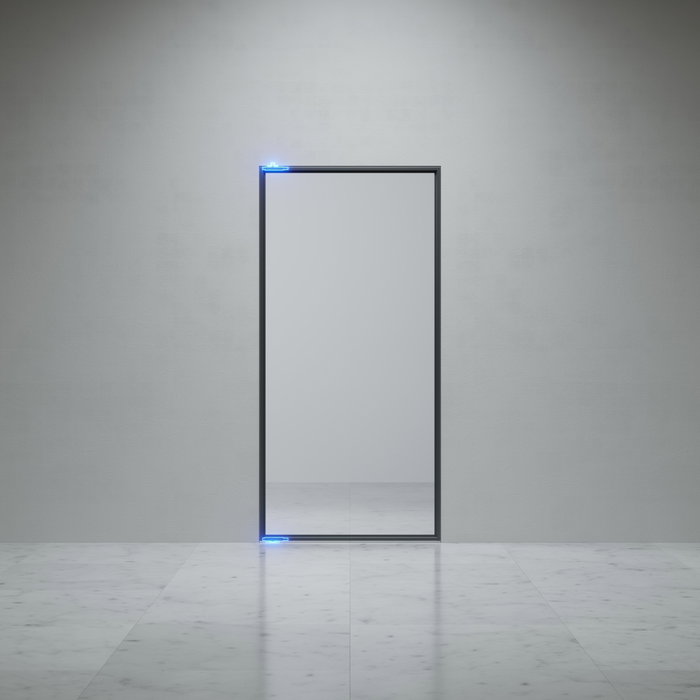

A complete set consists of four parts. The pivot hinge sits in the door profile, the plates anchor it to floor and ceiling. The Slim products are sold as complete sets only.
Ceiling plate
Fitted in the ceiling; the telescopic pin of the Top pivot Slim extends into it. Class G, 70 x 40 x 23 mm, in stainless steel or black.
Top pivot Slim
Slides into the top of the door profile, at the same 18 mm as the bottom pivot. A telescopic pin of 15 mm diameter winds out 19.5 mm from that housing, and adjusts 5 mm to either side.

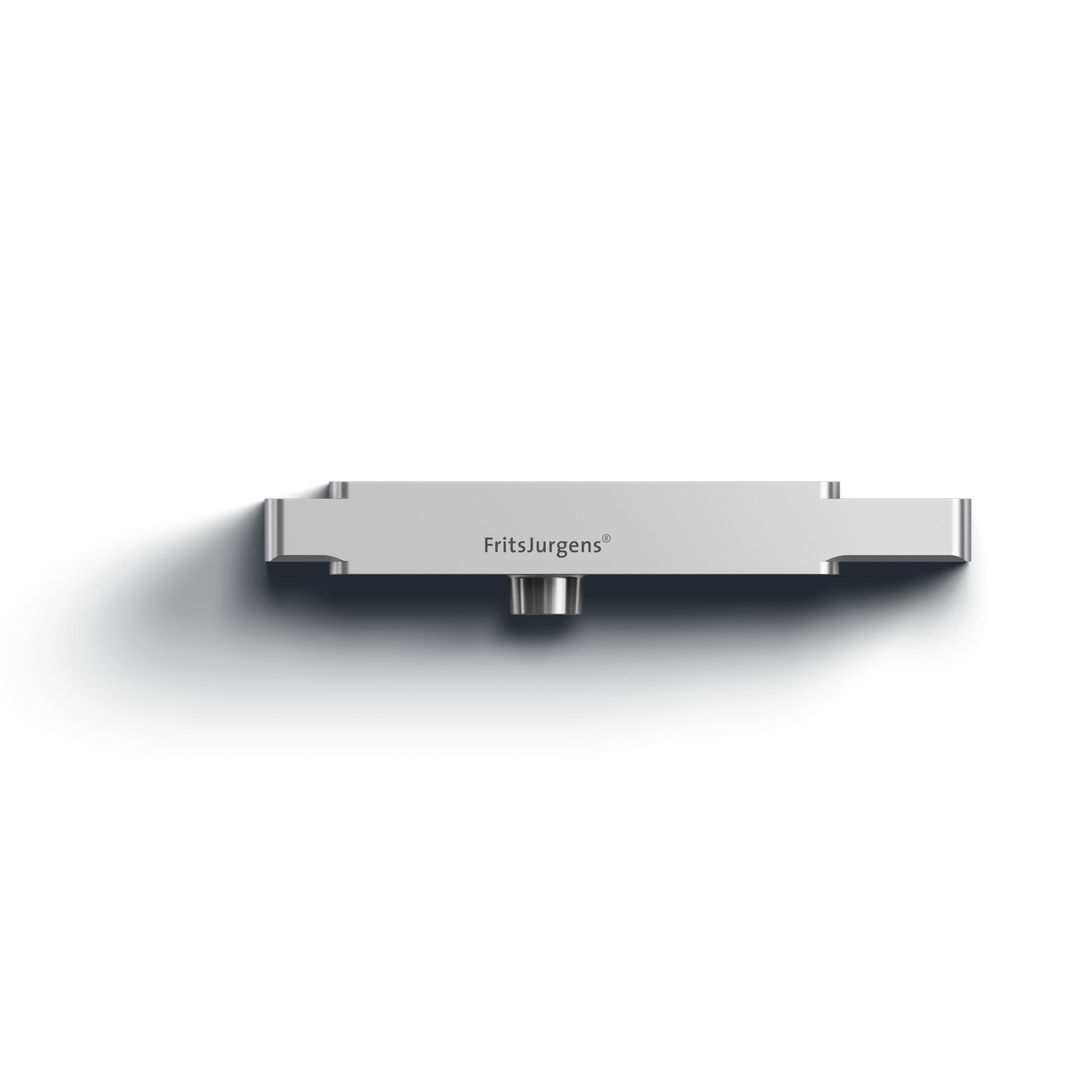

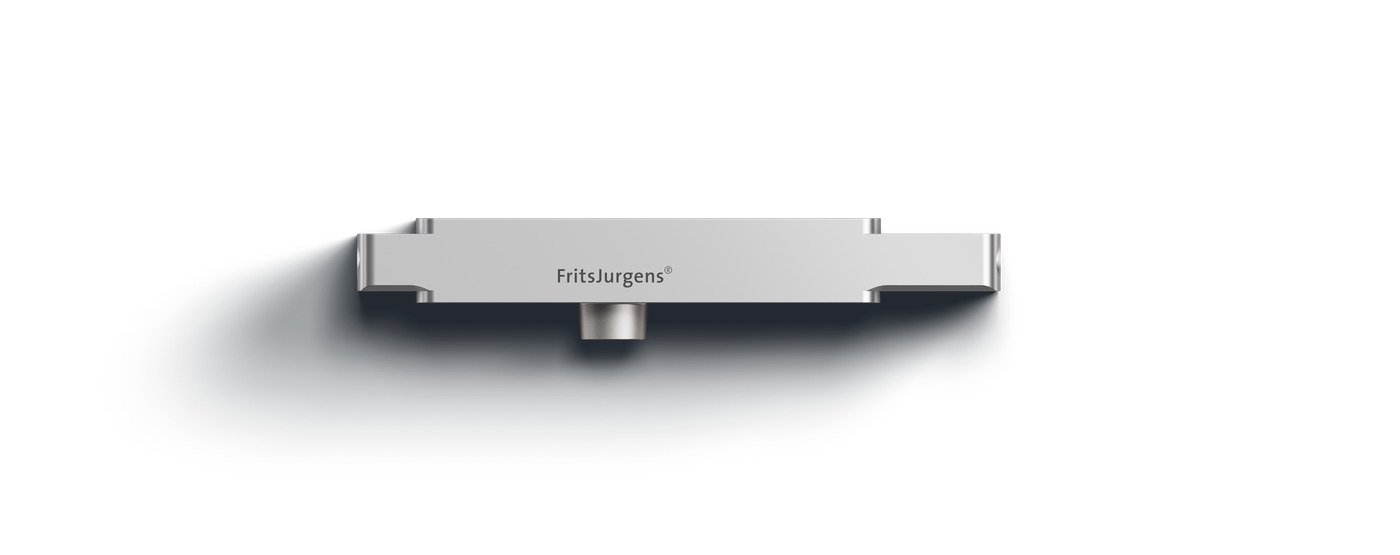

Bottom pivot
The pivot mechanism and driver of the door, fitted in the bottom of the profile and virtually invisible. Hold positions at 0, 90, 180 and 270 degrees with a gentle holding force of 20 Nm, free swing in between, not self-closing. Class C, up to 209 kg depending on door width.
Floor plate
The System Fx Slim set carries the squared floor plate with radial adjustment of +2.5 to -2.5 degrees, 80 x 40 x 9 mm with an undercut of 11 mm. Two or four 8 mm pins hold it between two floor types, or two 30 mm pins in layered floor materials. Stainless steel or black.
* Shown: System Fx Slim Class C. Available in stainless steel and in black.
Inside the profile

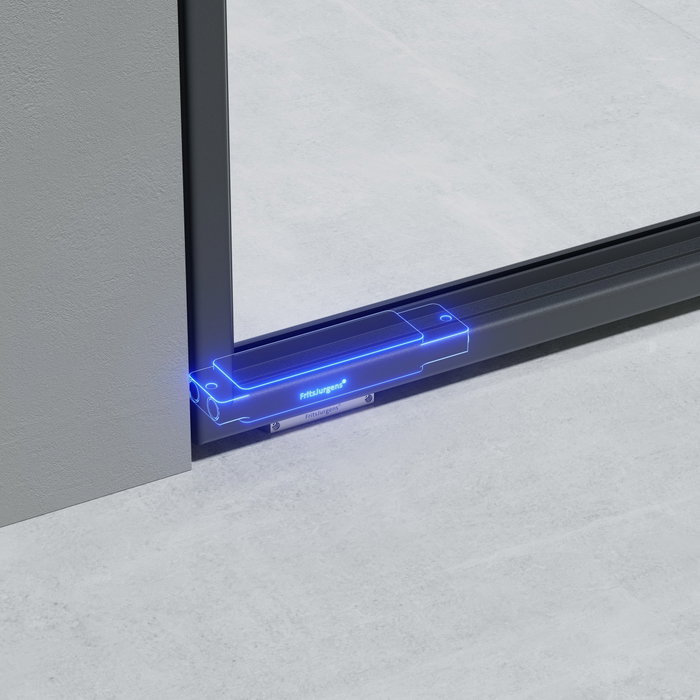

The holding mechanism that stops the door at every 90 degrees sits inside a housing of 18 mm, together with the brackets that hold it in the profile.
At a glance
System Fx Slim comes in one class. Class C covers interior doors up to 209 kg, depending on door width; use the product selector for the definitive class for your door.
System Fx Slim - Class C
| System | |
|---|---|
| Dimensions | 137 x 32 x 18 mm |
| Height | 18 mm, including the profile step |
| Cutout | 114 x 32 mm |
| Profile | Box profile 40 x 20 x 2 mm (minimum), steel or aluminium |
| Material | Stainless steel and anodised aluminium |
| Fixing | Slide-in, bolt-through M6 (2x) |
| Door | |
| Door acting | Double-acting, 360 degree rotation |
| Door weight | Class C, up to 209 kg, depending on door width |
| Holding force | Gentle (20 Nm) |
| Pivot point | From 70 mm to middle placement |
| Top gap | 4 - 10 mm |
| Door movement | Hold positions at 0, 90, 180 and 270 degrees, free swing in between; within 10 degrees of a hold position the door is drawn into it |
| Application | Interior doors |
| Functionalities | |
| Free swing | |
| Hold positions | |
| Self-closing | |
| Art.no. | BP.Fx.SL.C.X.XX |
ProfileFit in motion
