System One Slim
Free swing · 18 mm · Class C, up to 209 kg
The free swinging pivot system for interior doors with slim steel and aluminium profiles. Engineered to 18 mm, fitted without adapters.
Designed for minimal profiles
18 mm, top and bottom
Both pivots are 18 mm high, including the step that seats into the profile. The line of the profile continues from floor to ceiling, uninterrupted by the hardware inside it.

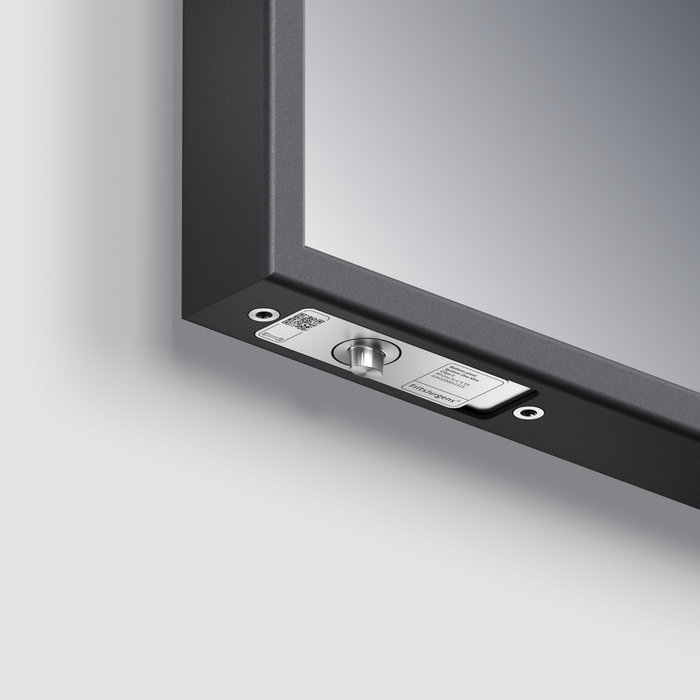

ProfileFit, without adapters
Integrated profile brackets slide into a prepared cutout of 114 x 32 mm and bolt through with two countersunk M6 bolts. No adapters, no additional parts.
Up to 209 kg
Class C, depending on door width. For heavier doors, up to 500 kg, the regular System One with the Top pivot Reversed takes over.
What a System One Slim set contains
A complete set consists of four parts. The pivot hinge sits in the door profile, the plates anchor it to floor and ceiling. The Slim products are sold as complete sets only.
Ceiling plate
Fitted in the ceiling; the telescopic pin of the Top pivot Slim extends into it. Class G, 70 x 40 x 23 mm, in stainless steel or black.

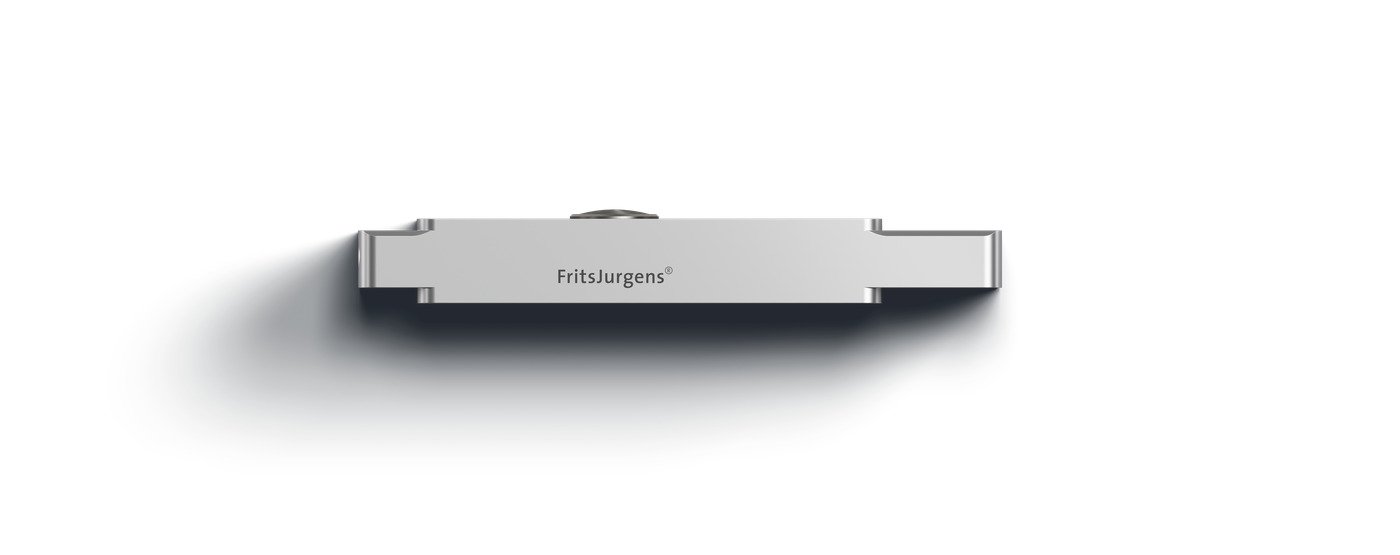

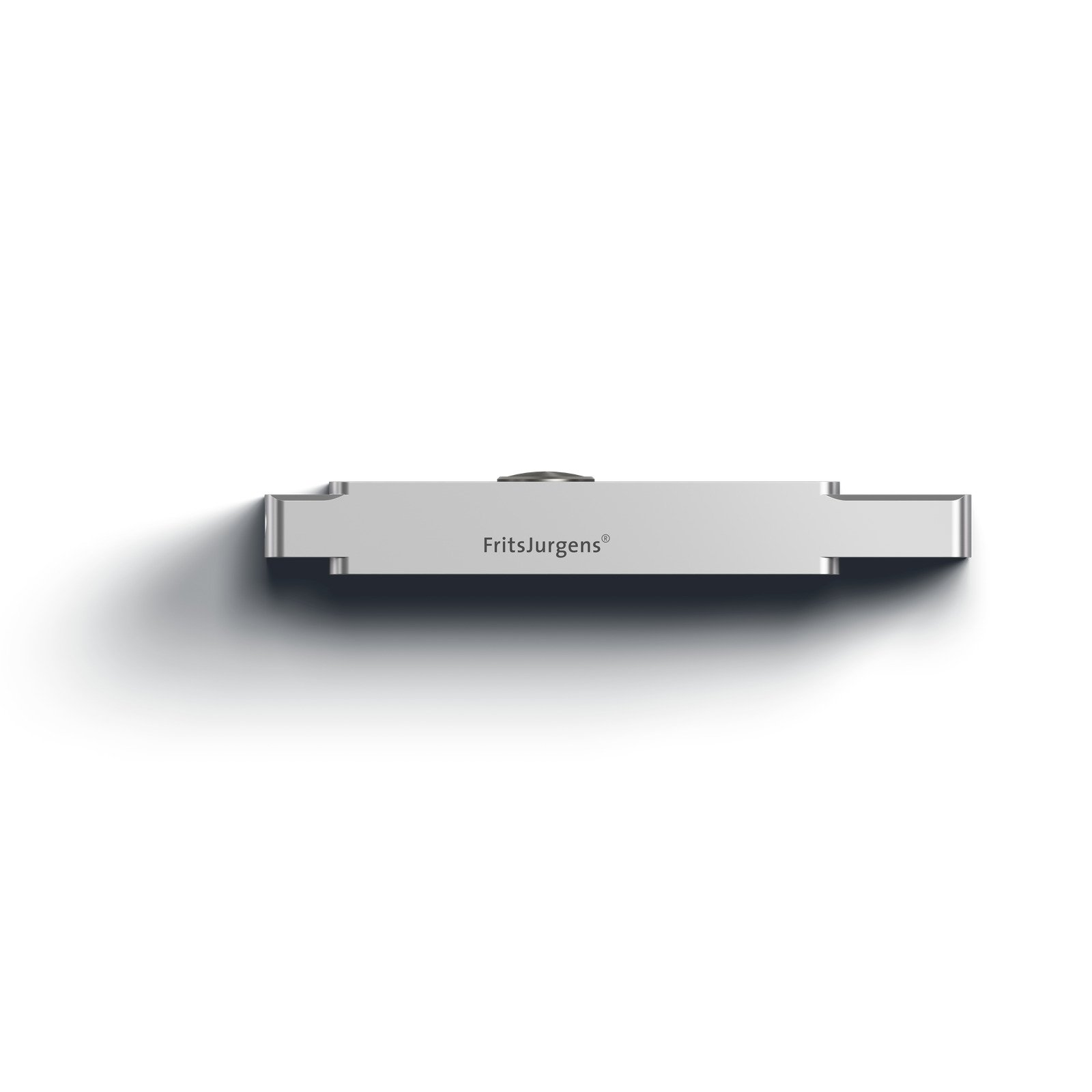

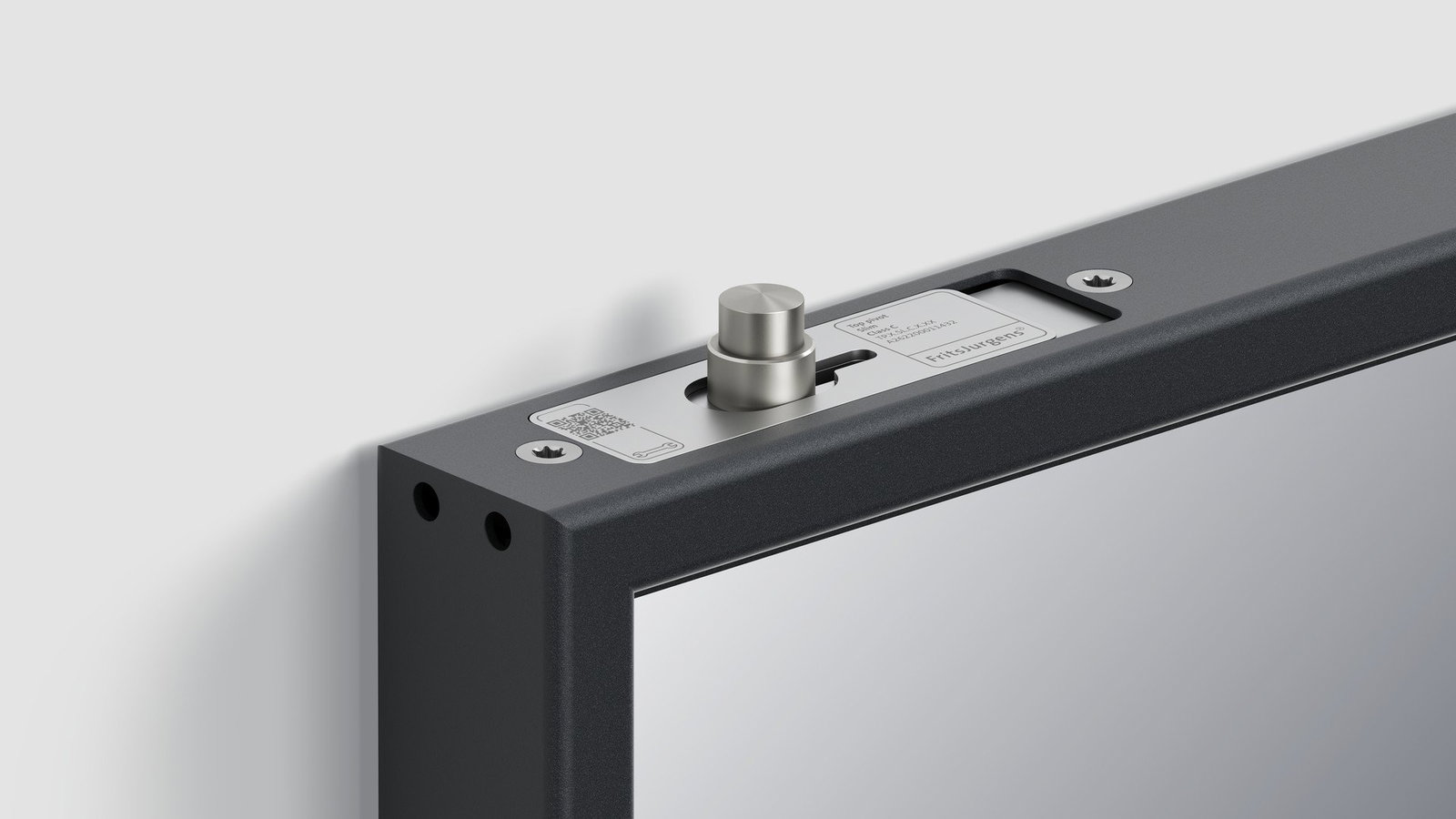

Top pivot Slim
Slides into the top of the door profile, at the same 18 mm as the bottom pivot. A telescopic pin of 15 mm diameter winds out 19.5 mm from that housing, and adjusts 5 mm to either side.

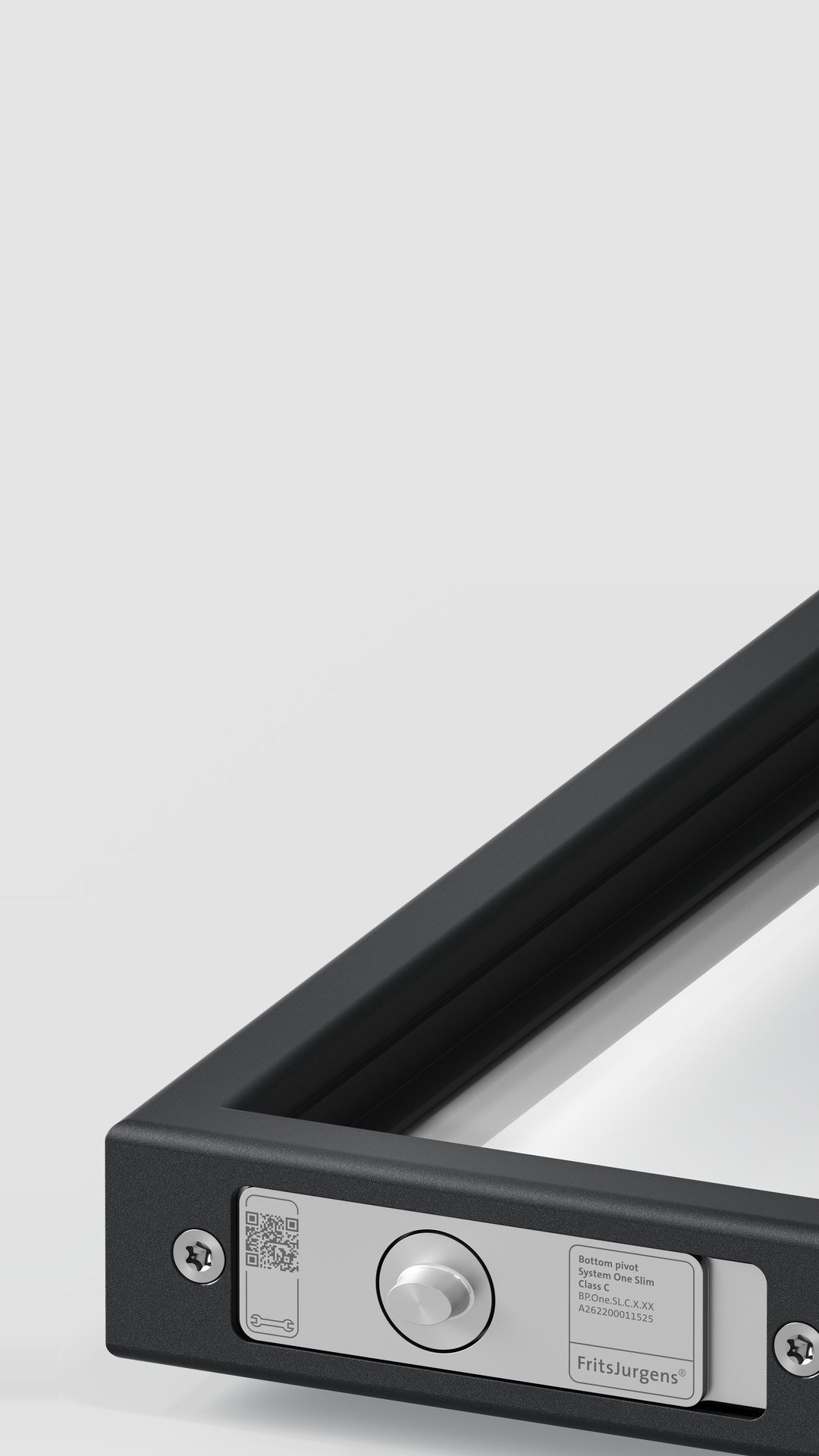

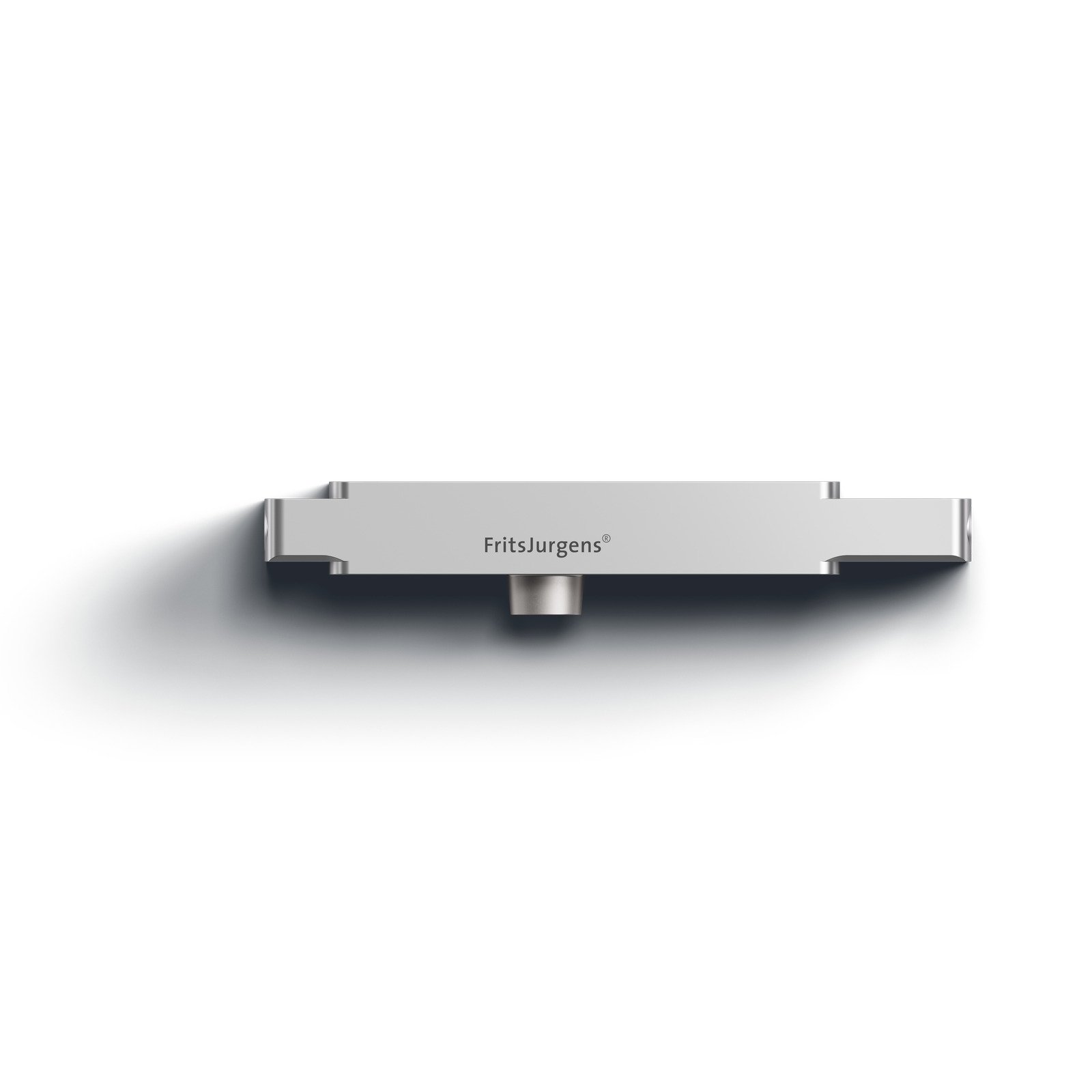

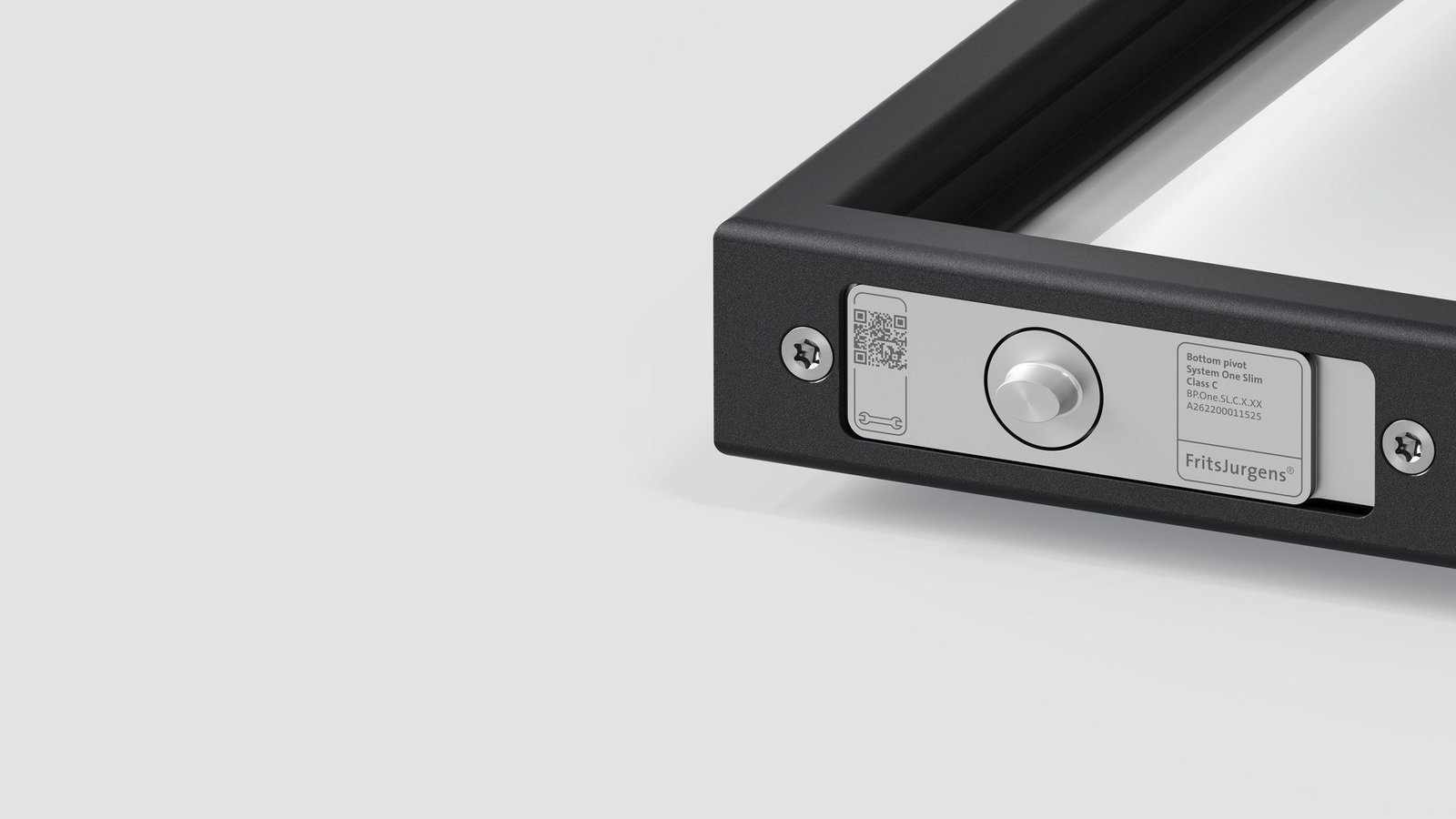

Bottom pivot
The pivot mechanism and driver of the door, fitted in the bottom of the profile and virtually invisible. Free swing 360 degrees, no hold positions, no self-closing. Class C, up to 209 kg depending on door width.
Floor plate
The System One Slim set carries the squared floor plate, non-adjustable, 80 x 40 x 9 mm with an undercut of 11 mm. Two or four 8 mm pins hold it between two floor types, or two 30 mm pins in layered floor materials. Stainless steel or black.
* Shown: System One Slim Class C. Available in stainless steel and in black.

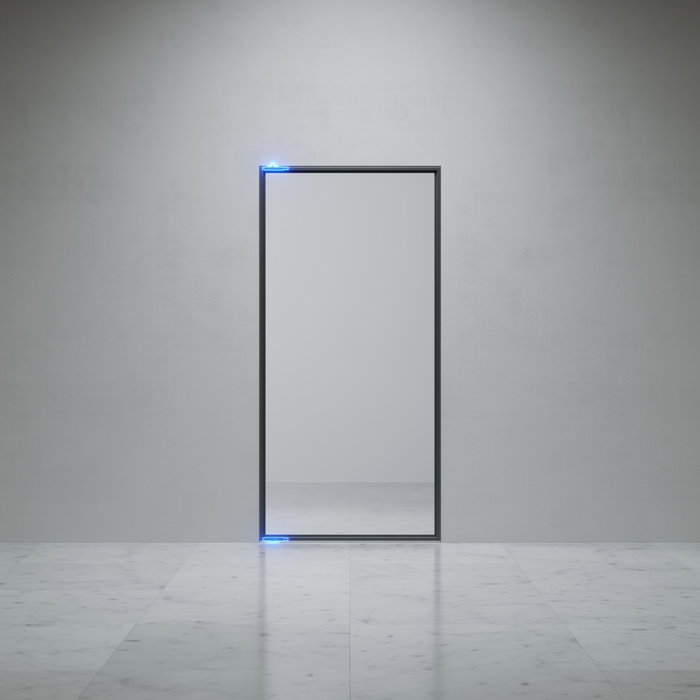

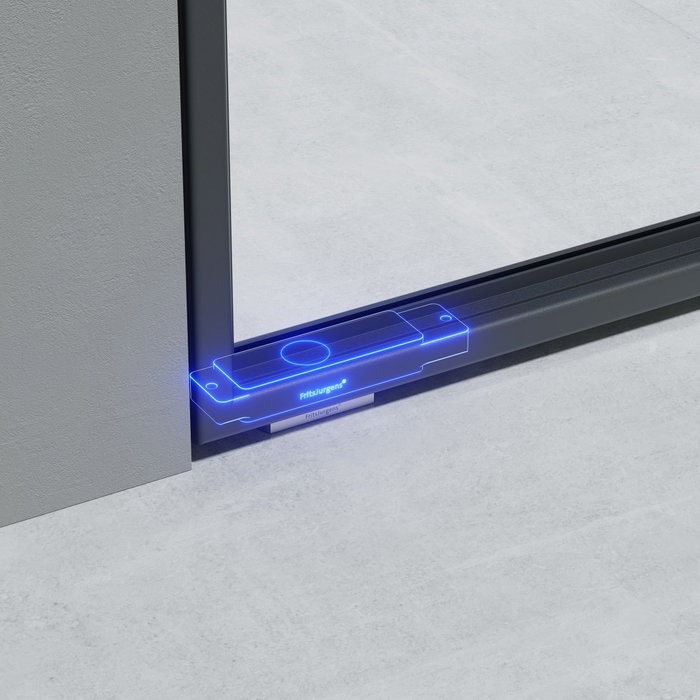

Inside the profile
The whole set disappears into a box profile of 40 x 20 x 2 mm. Here is what that looks like from the inside.
At a glance
System One Slim comes in one class. Class C covers interior doors up to 209 kg, depending on door width; use the product selector for the definitive class for your door.
System One Slim - Class C
| System | |
|---|---|
| Dimensions | 137 x 32 x 18 mm |
| Height | 18 mm, including the profile step |
| Cutout | 114 x 32 mm |
| Profile | Box profile 40 x 20 x 2 mm (minimum), steel or aluminium |
| Material | Stainless steel and anodised aluminium |
| Fixing | Slide-in, bolt-through M6 (2x) |
| Door | |
| Door acting | Double-acting, 360 degree rotation |
| Door weight | Class C, up to 209 kg, depending on door width |
| Pivot point | From 70 mm to middle placement |
| Top gap | 4 - 10 mm |
| Application | Interior doors |
| Functionalities | |
| Free swing | |
| Hold positions | |
| Self-closing | |
| Art.no. | BP.One.SL.C.X.XX |
ProfileFit in motion
