Top pivot Reversed

Installation in the head jamb or ceiling

This top pivot is slightly different from all the others: Top pivot Reversed can be placed in the head jamb or ceiling. As a result, extra thin door frames can be used because no system needs to be incorporated in the top of the door. For example, you can opt for an extra-large glass opening. Thanks to its placement in the ceiling, this system is not adjusted from the side of the door, but from the ceiling.

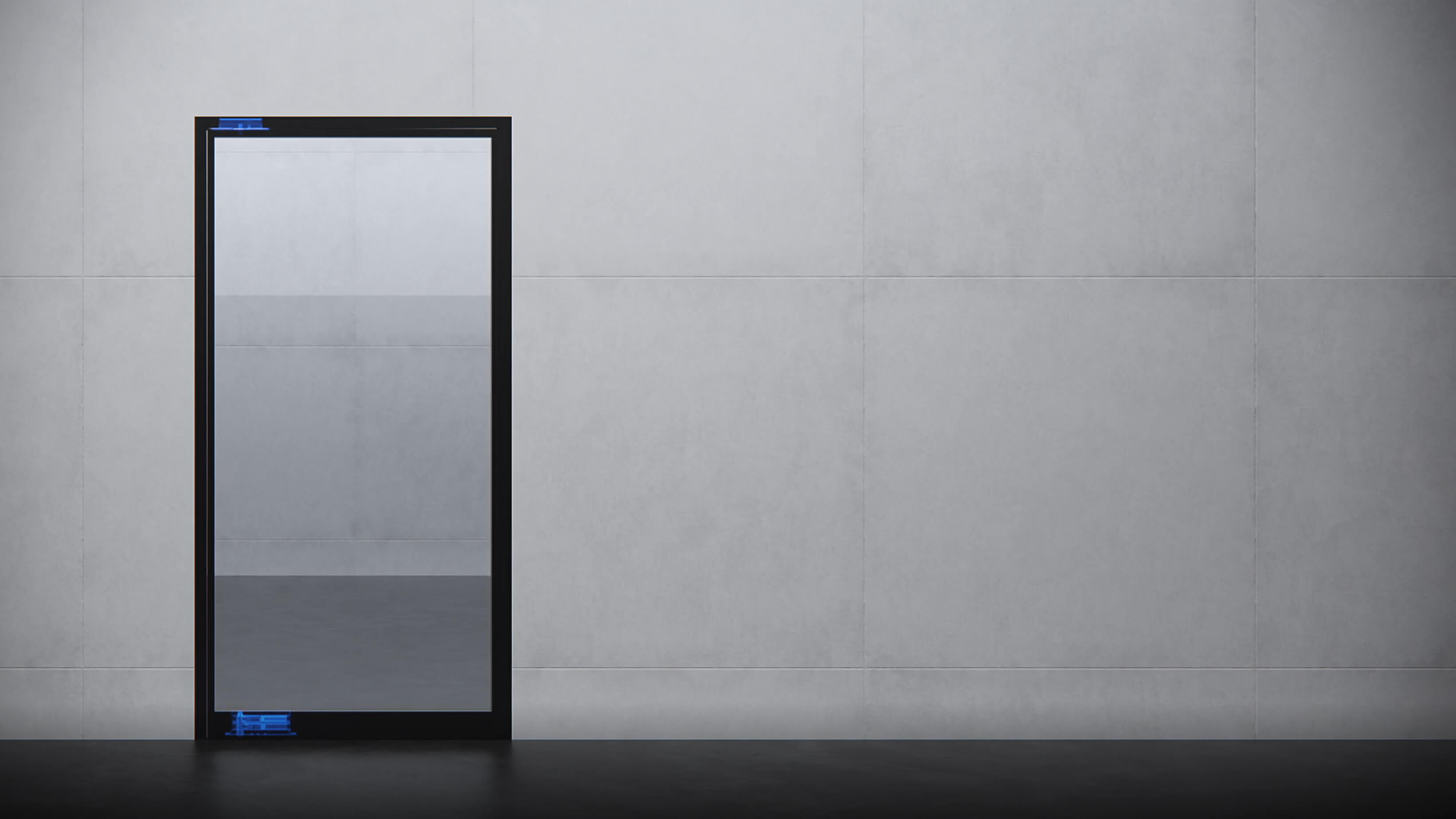

Exterior pivot doors

When installing an exterior door, there’s always a head jamb where Top pivot Reversed can be installed in.

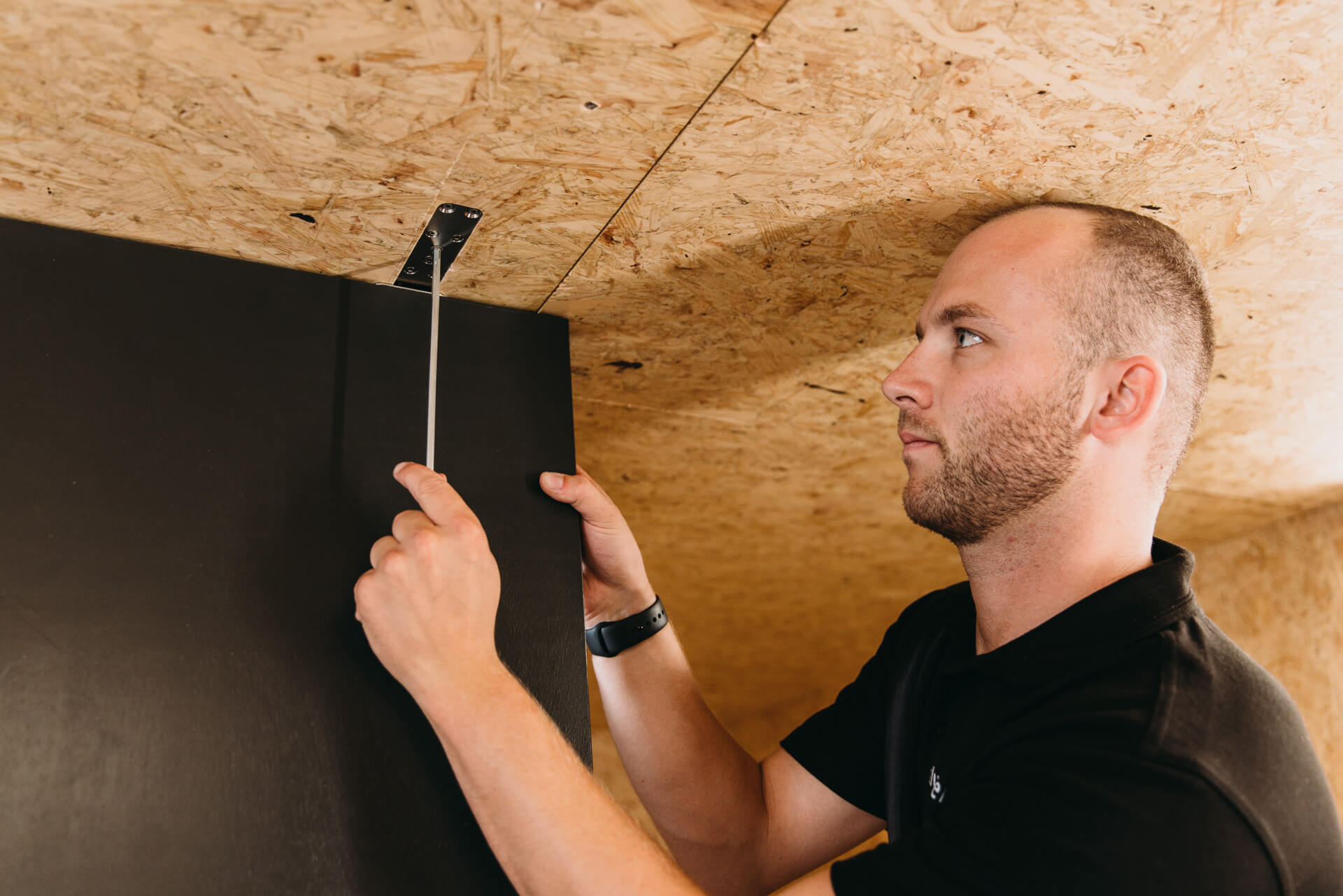

Easy installing

Thanks to its placement in the head jamb or ceiling, this system is adjusted from the ceiling: convenient for middle placement.

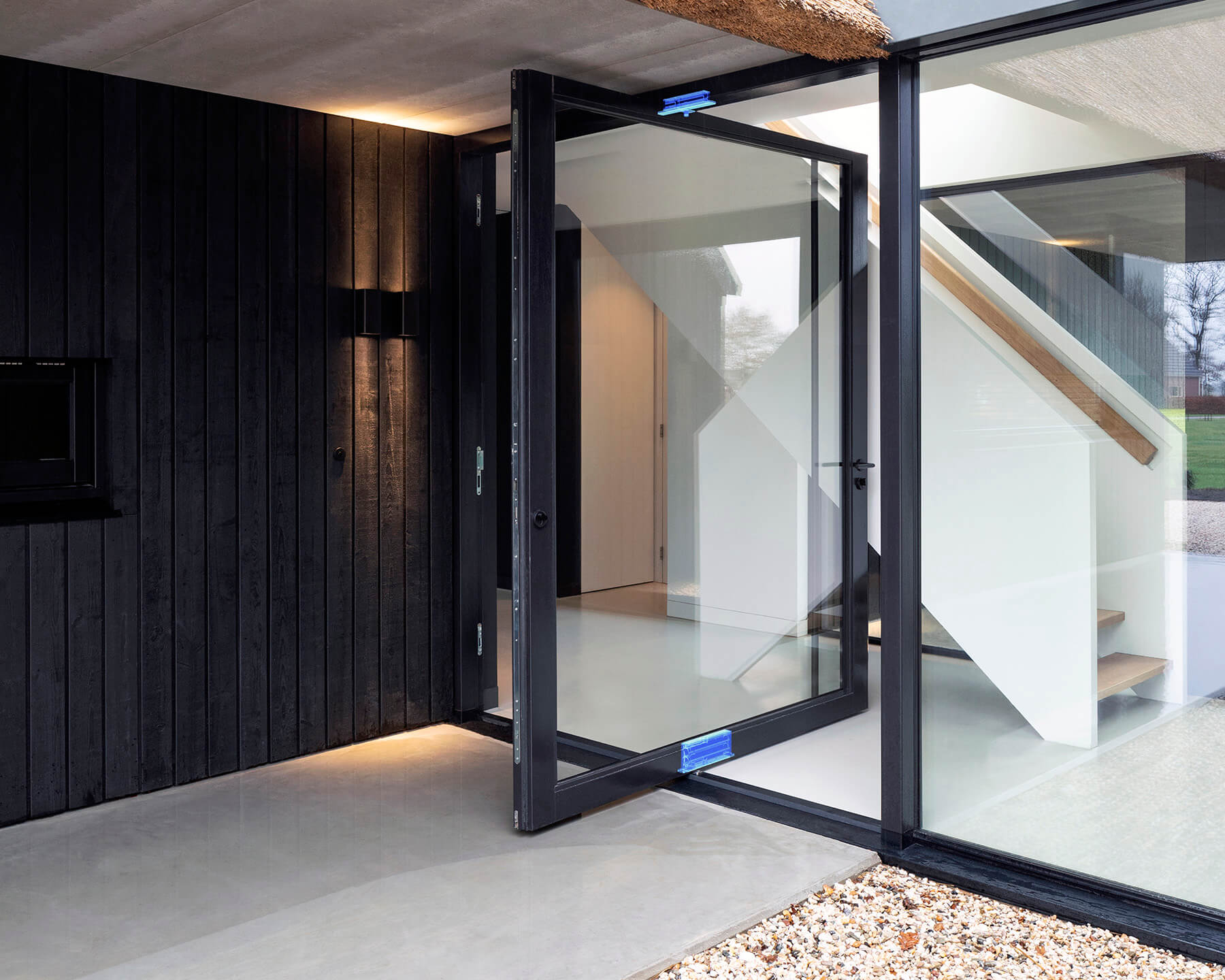

Smaller frames, more glass

With the top pivot installed in the head jamb or ceiling you can design a pivot door with smaller frames and a larger glass opening.

Receiver

For Top Pivot Reversed

The receiver is mounted inside the top of the pivot door. The pin of the top pivot Reversed is rotated downwards into the Receiver during the installation

Adapters

The Adapters can be used to mount the components in a metal profile. They then offer a solid base to mount the component on.

Top pivot Reversed cable entry

The top pivot reversed is equipped with cable entry as standard and is suitable for doors between 20 kg and 500 kg.

Cover plates

FritsJurgens’ TP-R is mounted inside the head jamb or ceiling. This means the top pivot is visible instead of a ceiling plate, as with other FritsJurgens top pivots. When the top pivot has been mounted, and the door has been fine-tuned, a magnetic cover plate is attached to the visible part of the top pivot. This cover plate is included in the order and is available in Stainless Steel, PVD Black, and Powder Coat White (RAL9016).
