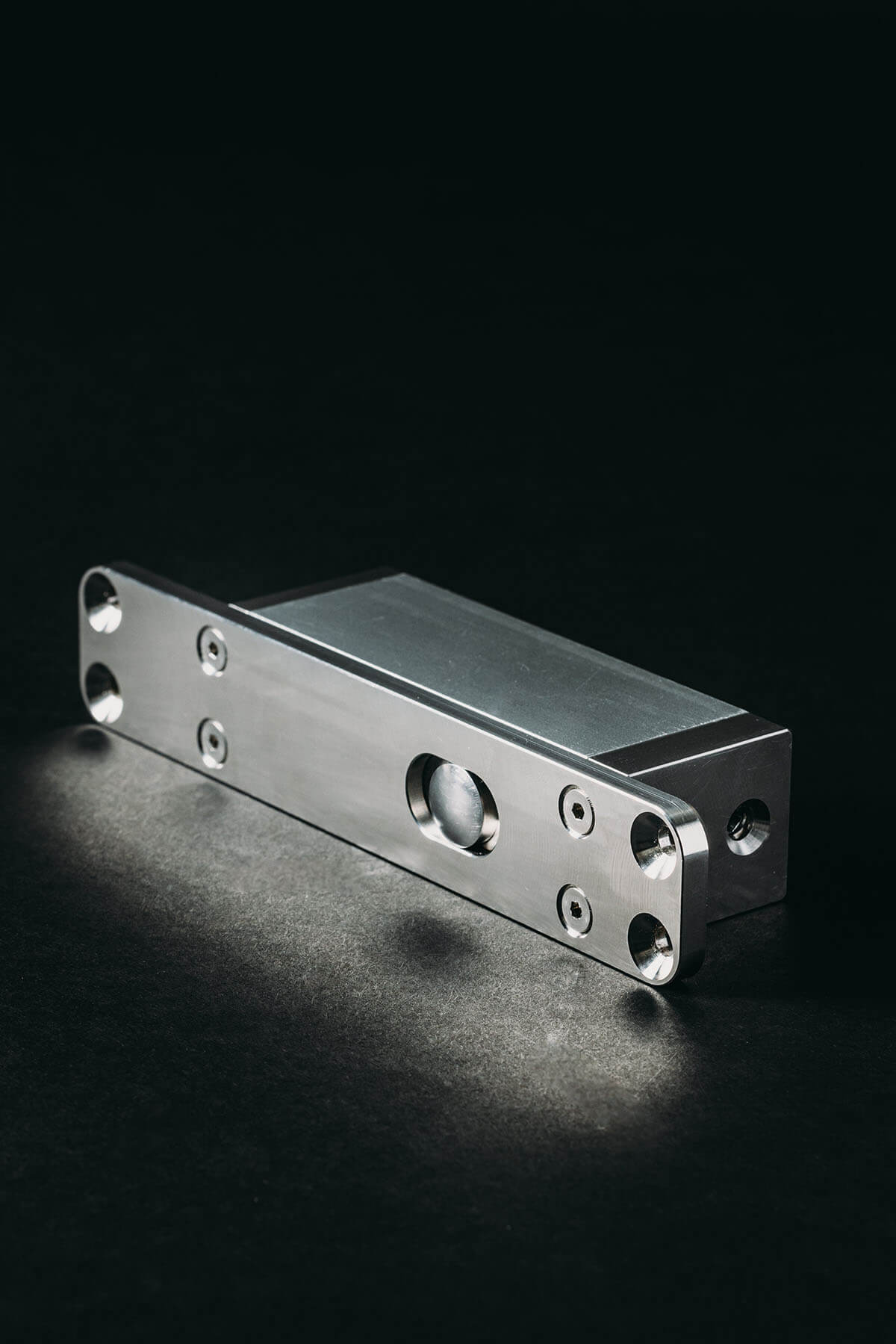

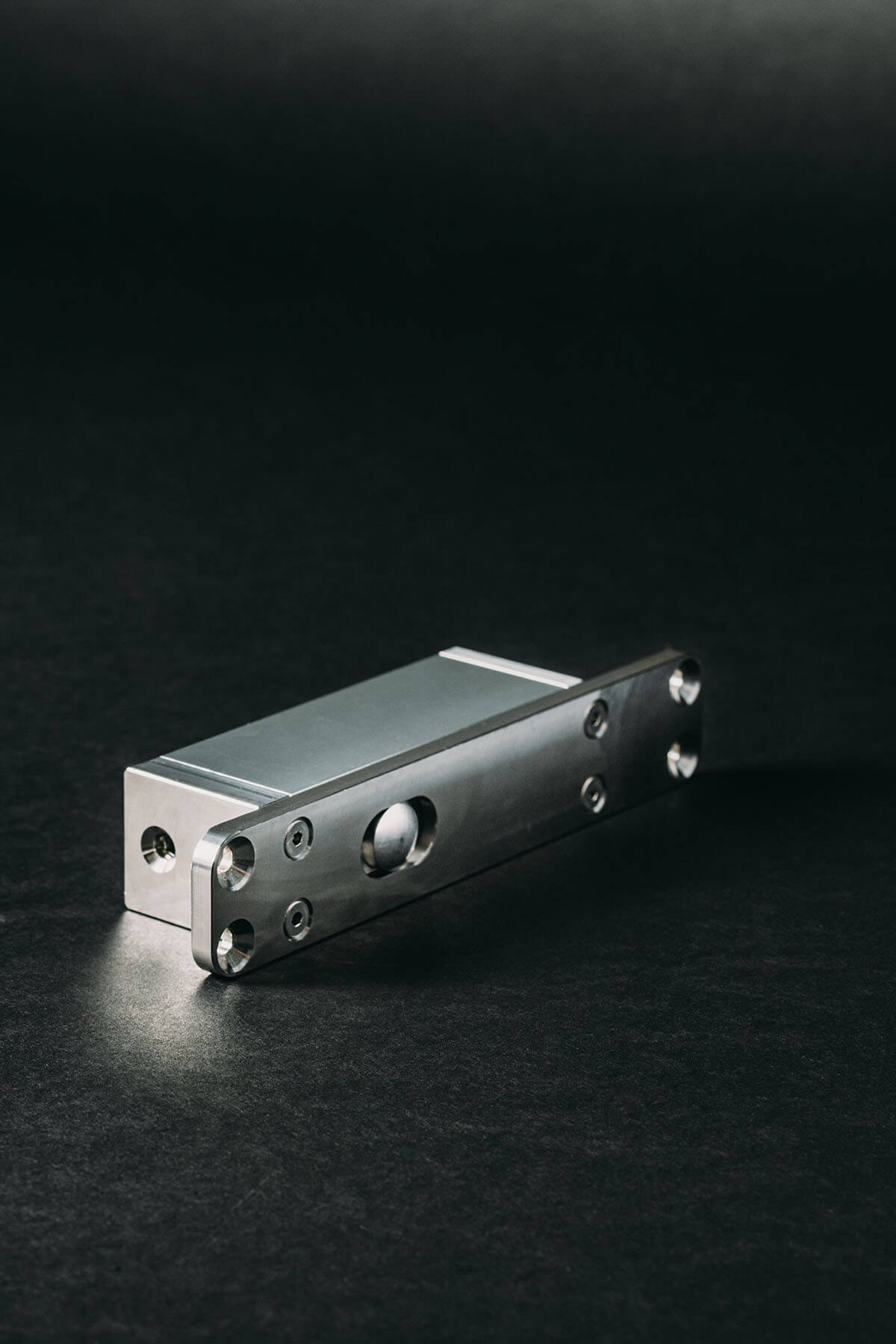

Top pivot 70 mm

Our all-rounder top pivot

This top pivot is a real all-rounder. The ability to position the system 70 mm from the door’s side reduces unused space while retaining the beautiful, distinctive pivot door movement. This top pivot can be placed in any position between 70 mm and the center of the door and is suitable for all FritsJurgens’ pivot systems.


All-rounder

Top pivot 70 mm can be applied in every type of pivot door and can be combined with every FritsJurgens pivot system of your preference.


Space and movement

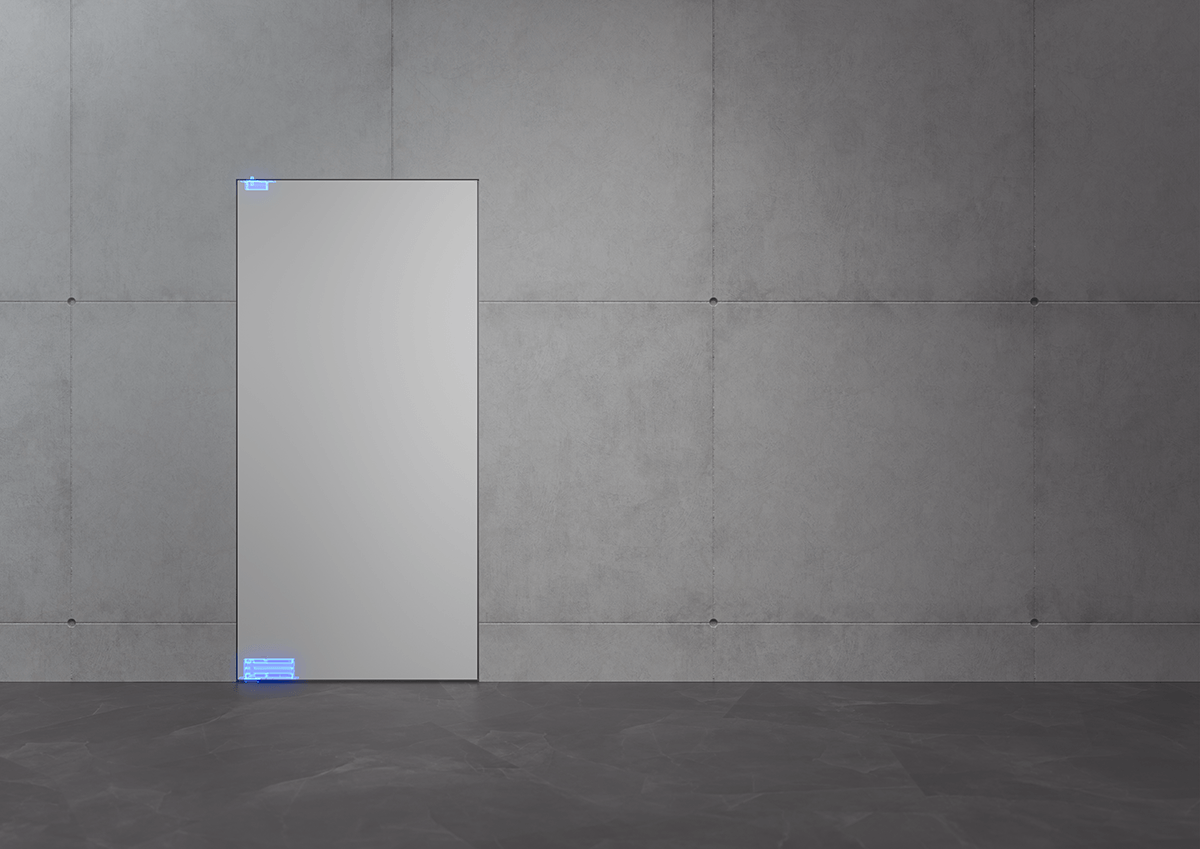

Reduce unused space while maintaining that beautiful, distinct pivot door movement by installing this top pivot at 70 mm from the side of the door.


Stay flexible

This top pivot is flexible: it can be placed in any position between 70 mm from the side of the door and the middle of the door.

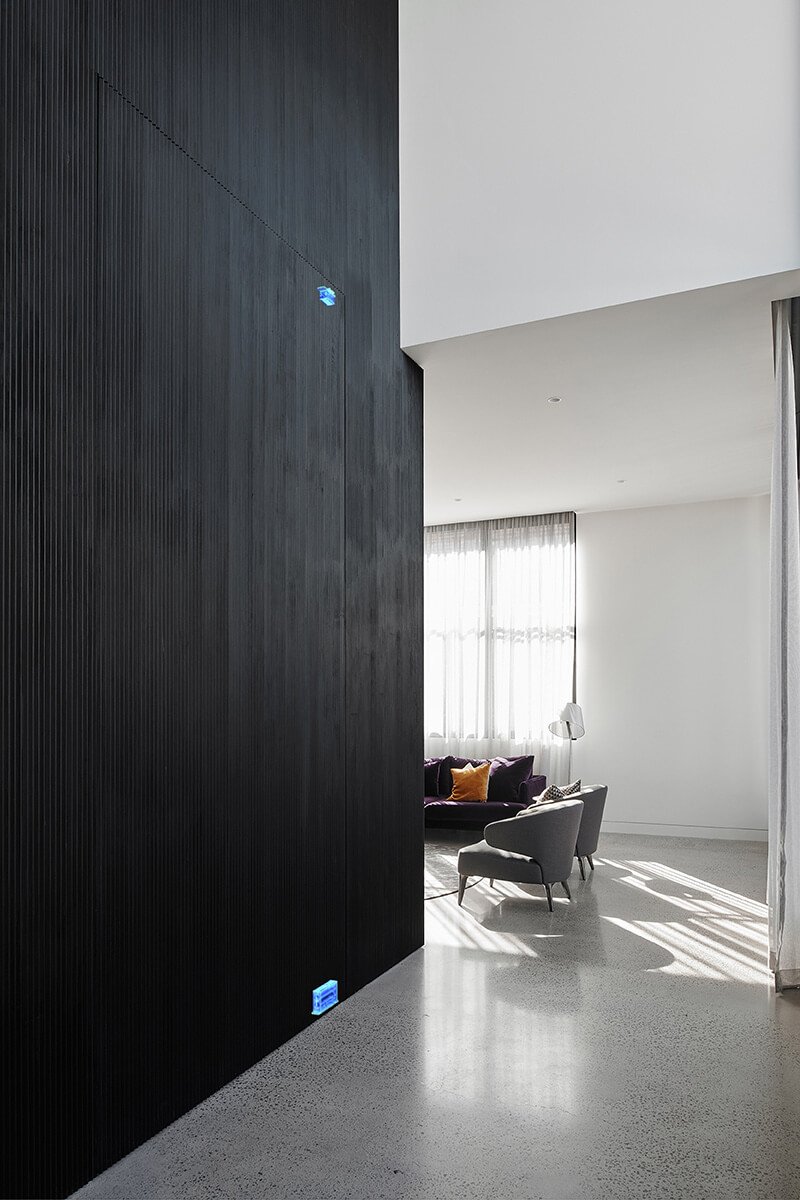

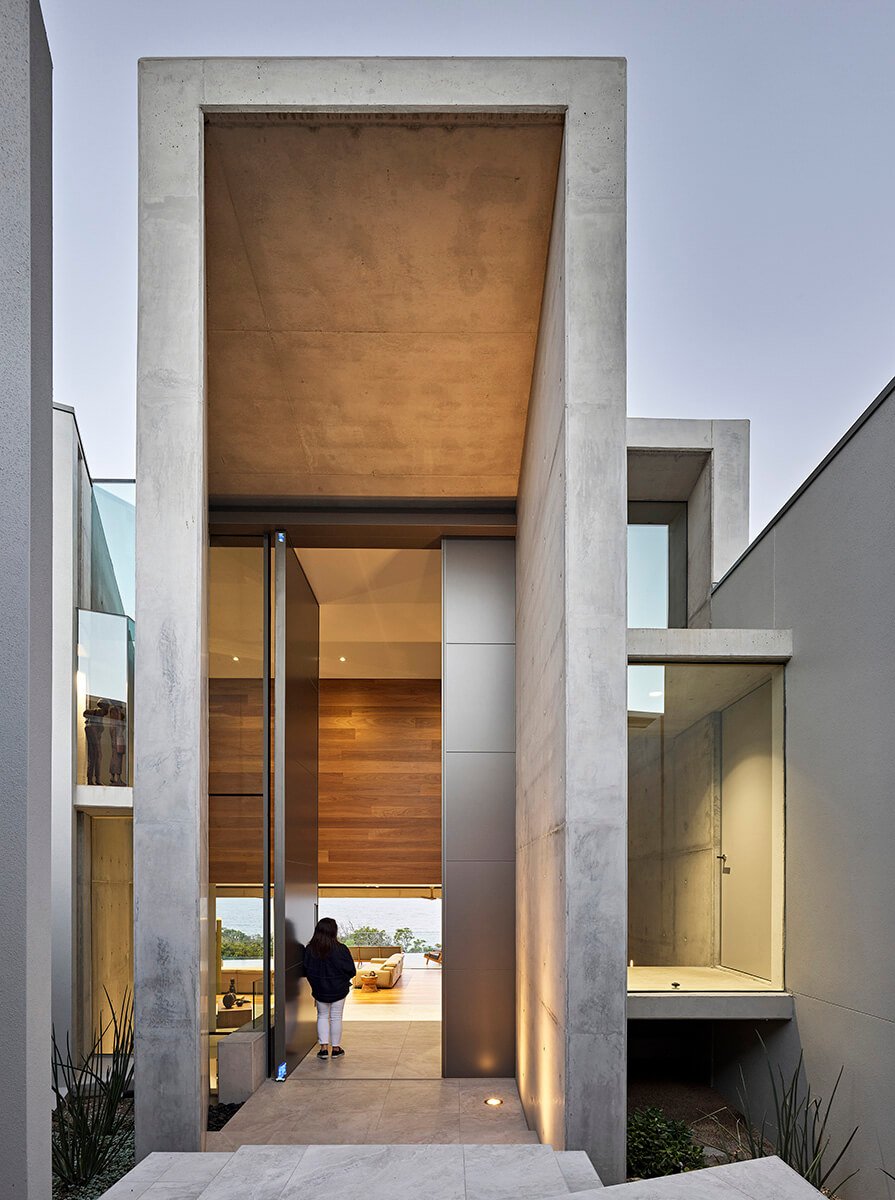

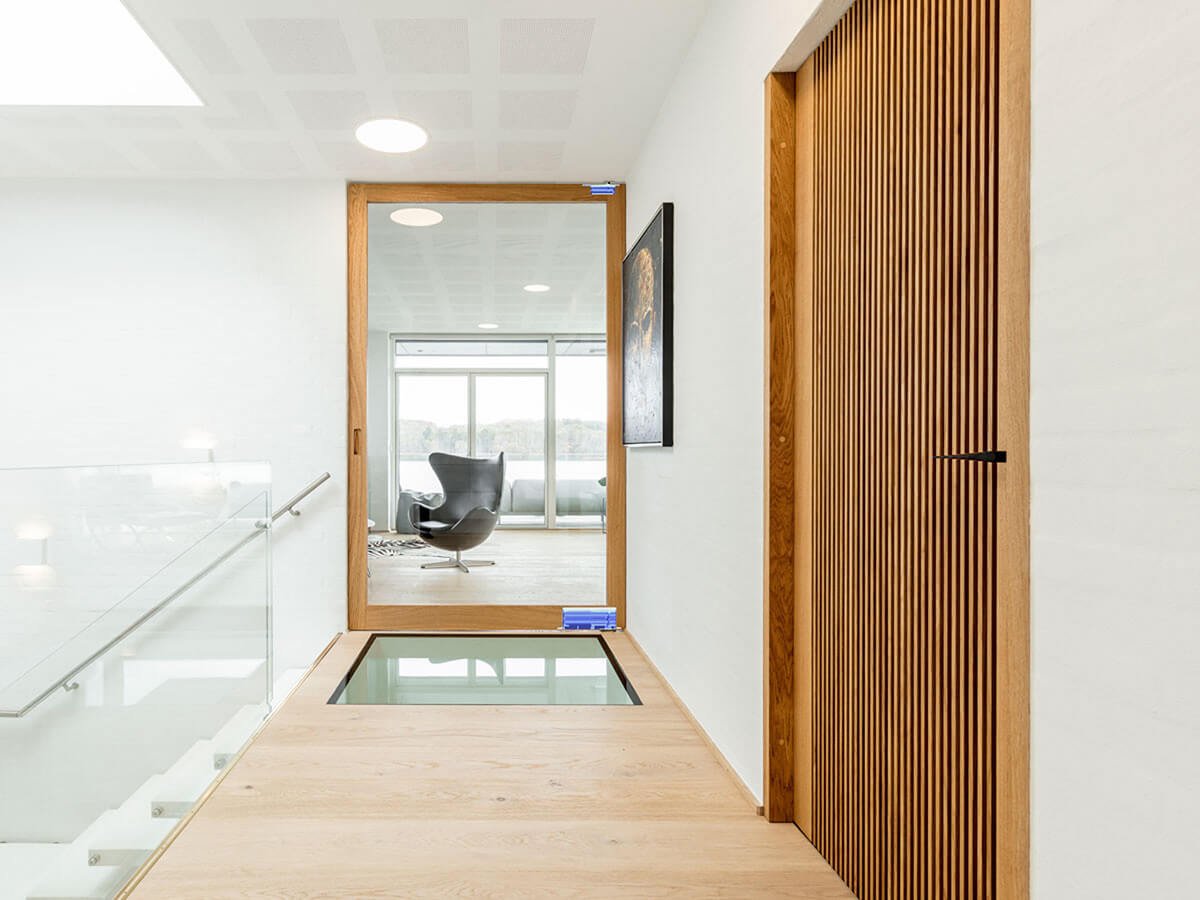

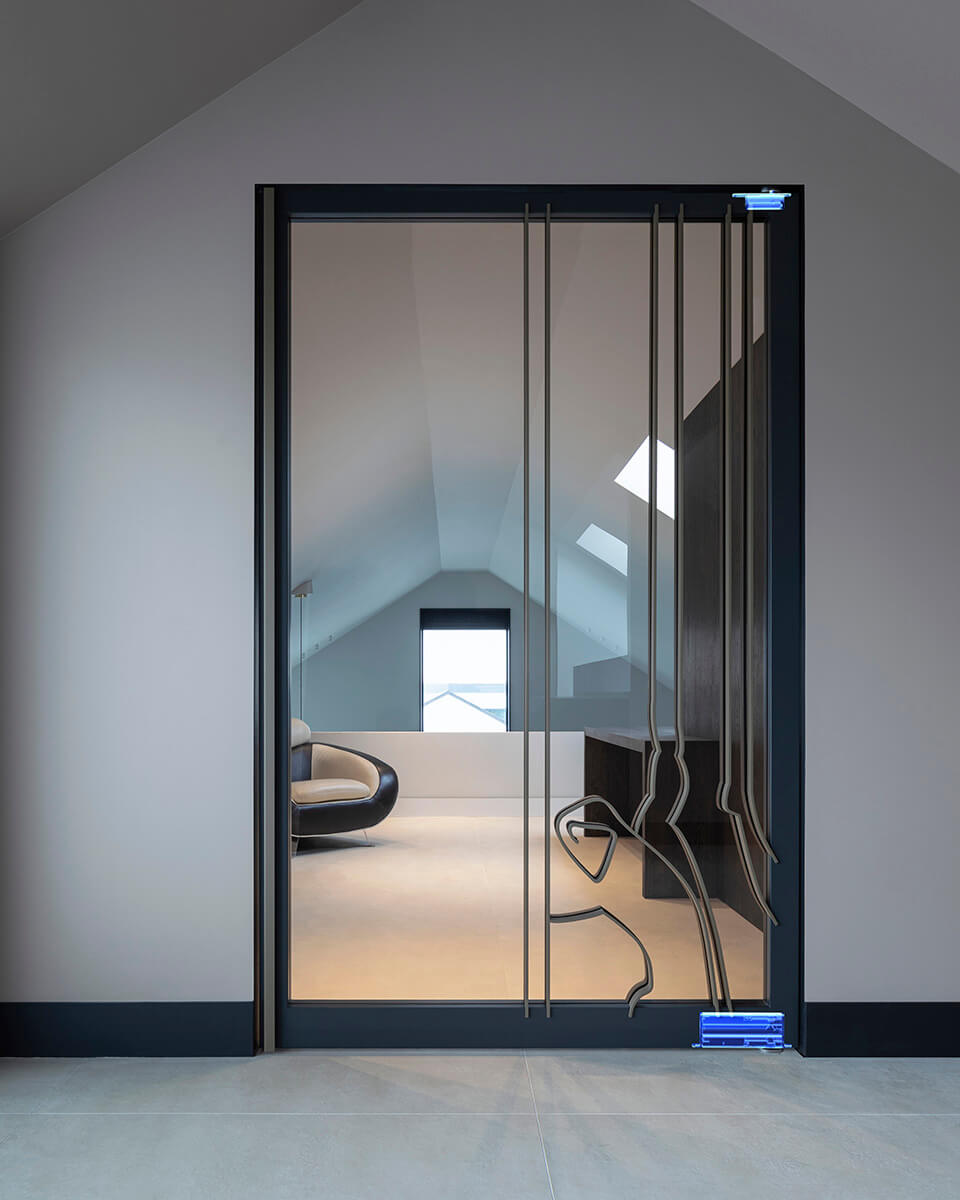

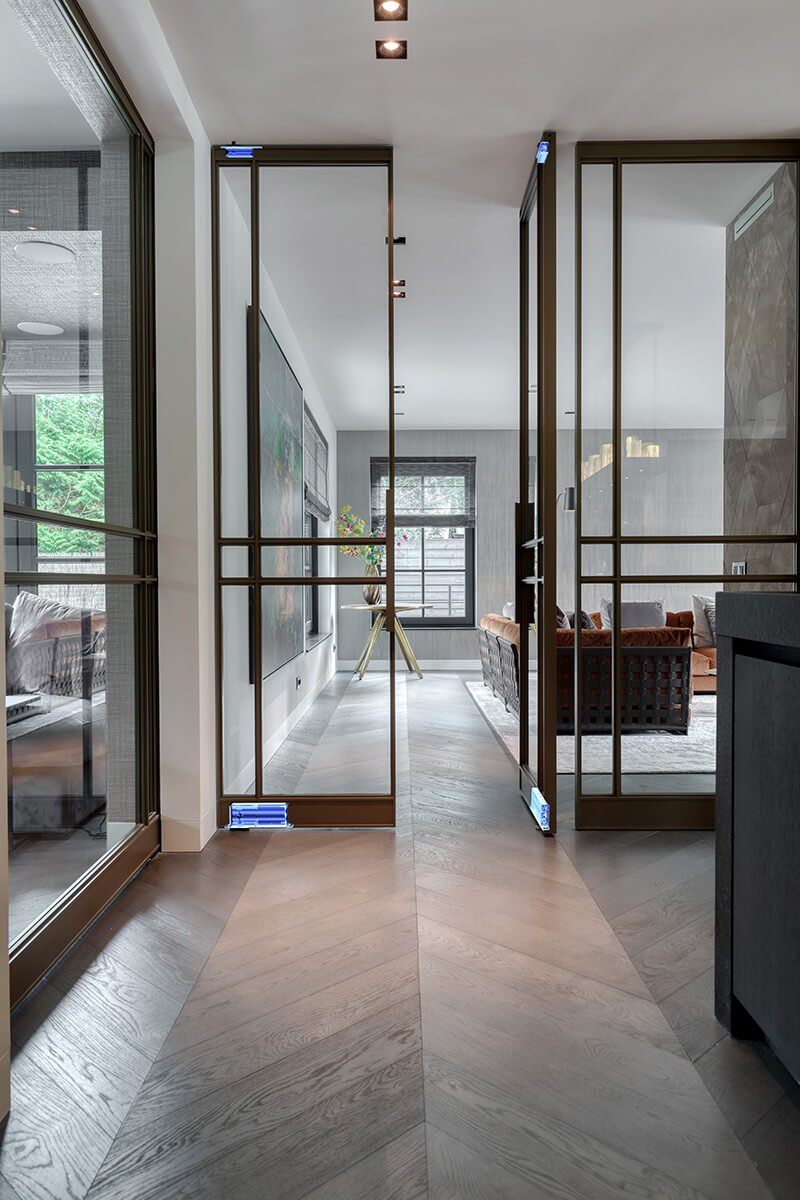

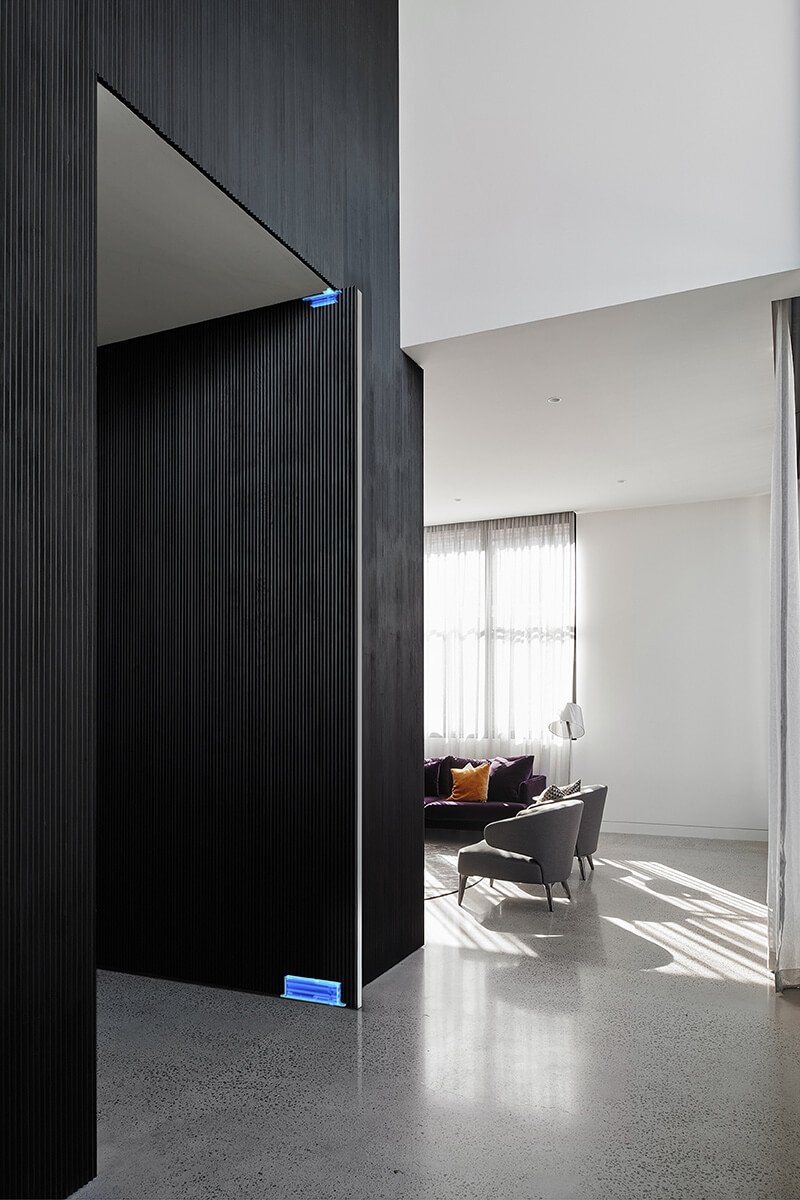

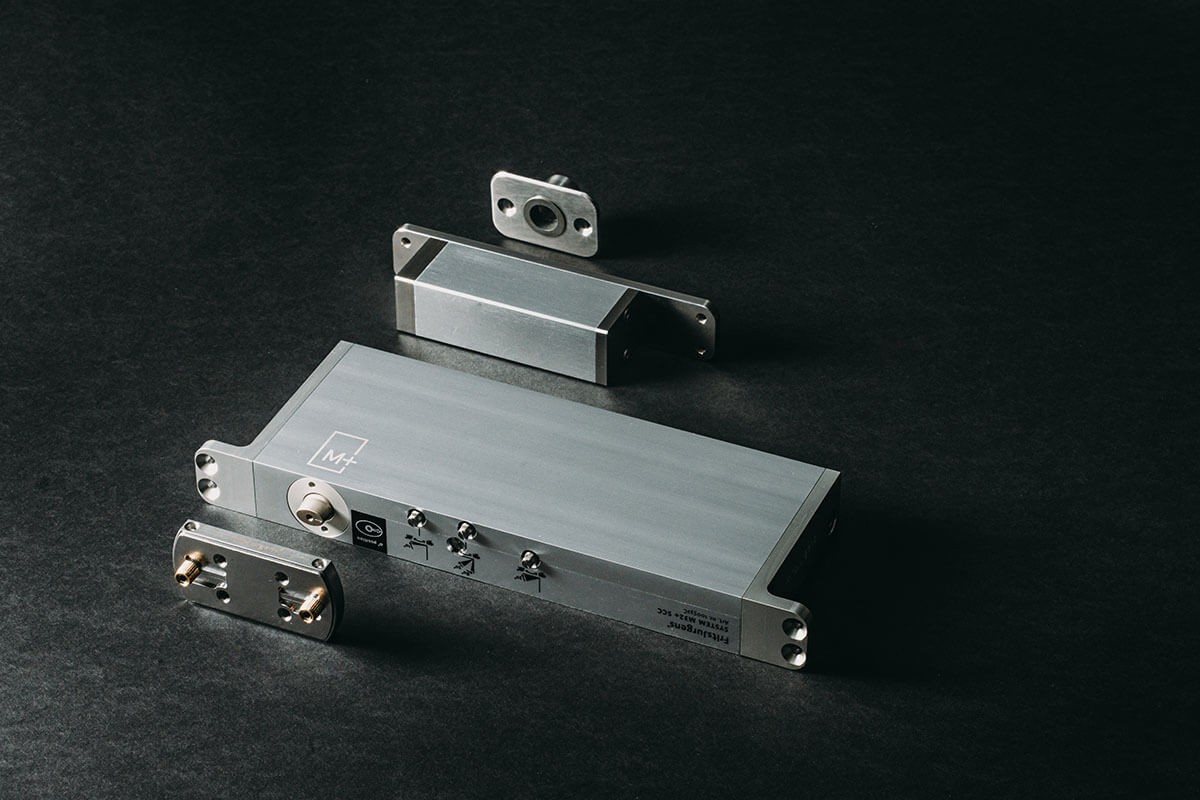

Product photos and applications

Fit for purpose

Top pivot 70 mm is available in two options: one for doors up to 150 kg, and one for doors between 150 kg and 500 kg. These options distinguish themselves from each other by the thickness of the pin, making each system fit for purpose.

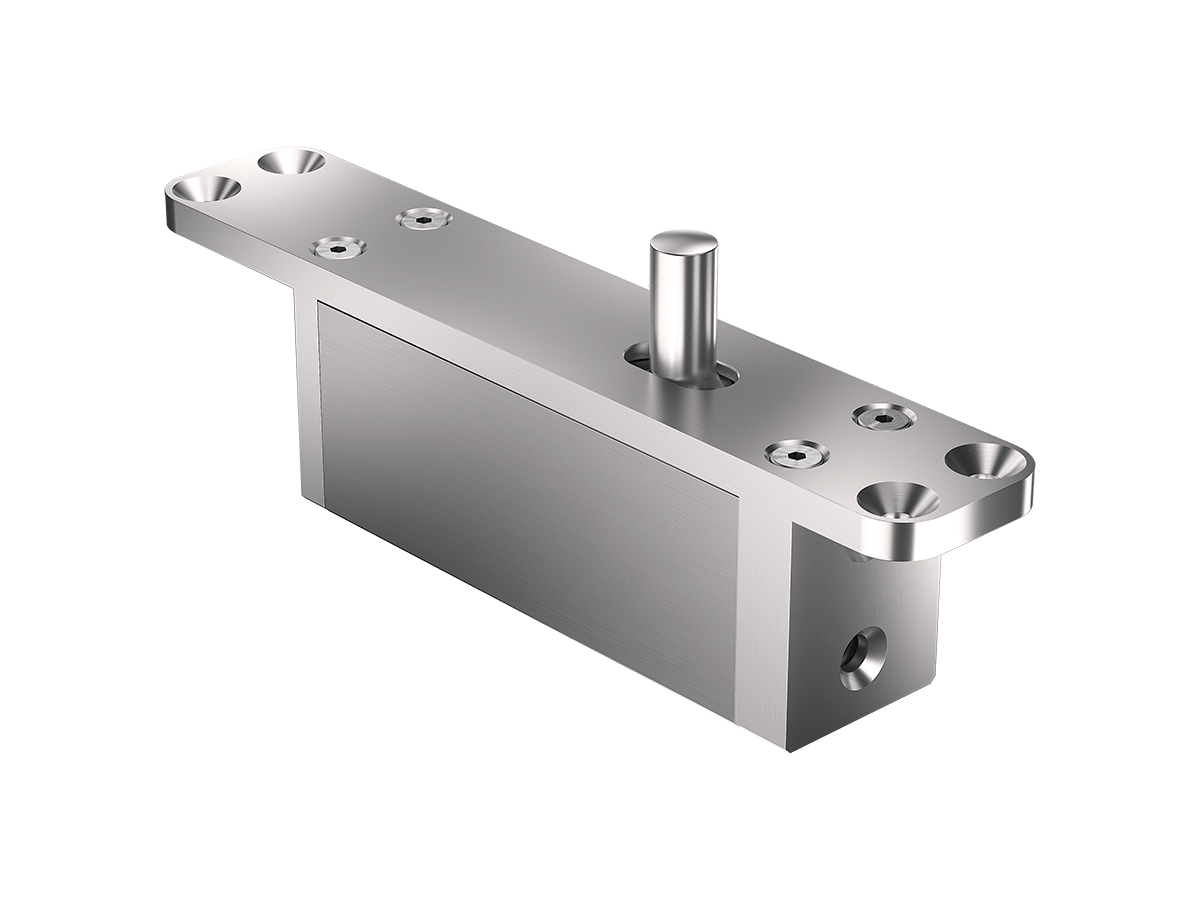

Top pivot 70 mm - Class B

Doors up to 150 kg

Top pivot 70 mm with a 10 mm pin is suitable for lighter doors up to 150 kg. It can be combined with every FritsJurgens pivot system.

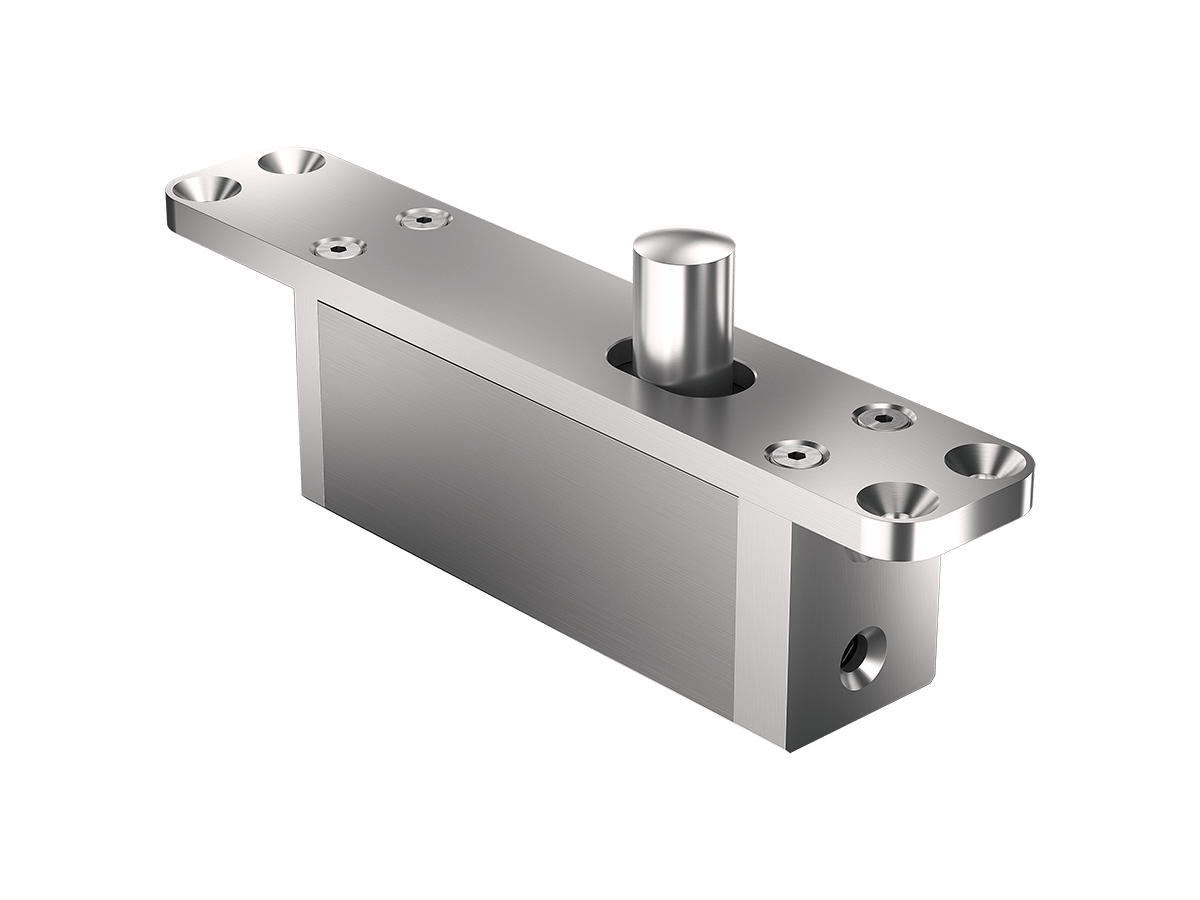

Top pivot 70 mm - Class G

Doors between 150 kg and 500 kg

Top pivot 70 mm with a 15 mm pin is suitable for heavier doors between 150 kg and 500 kg. it can be combined with every FritsJurgens pivot system.

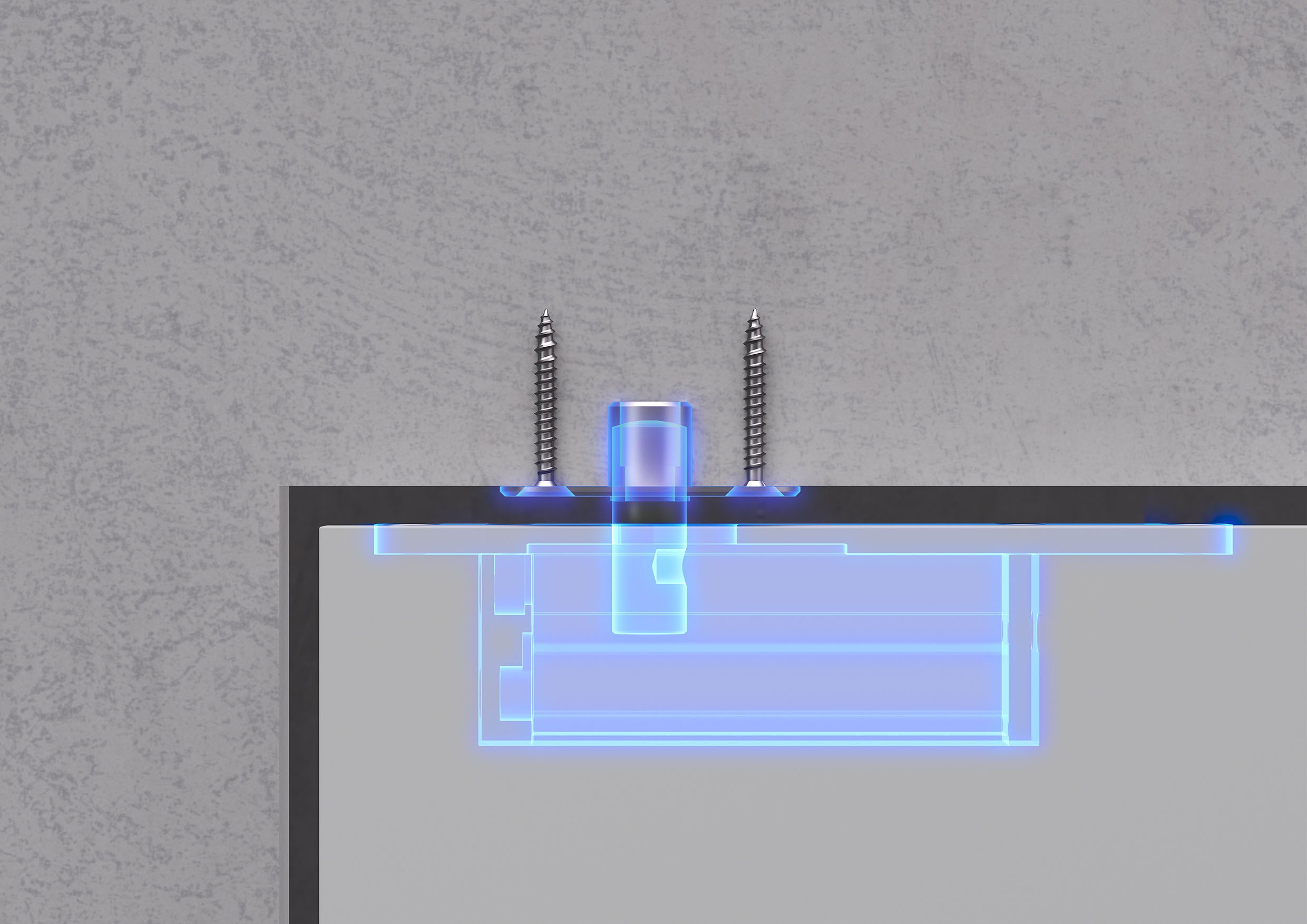

Installation with ceiling plate

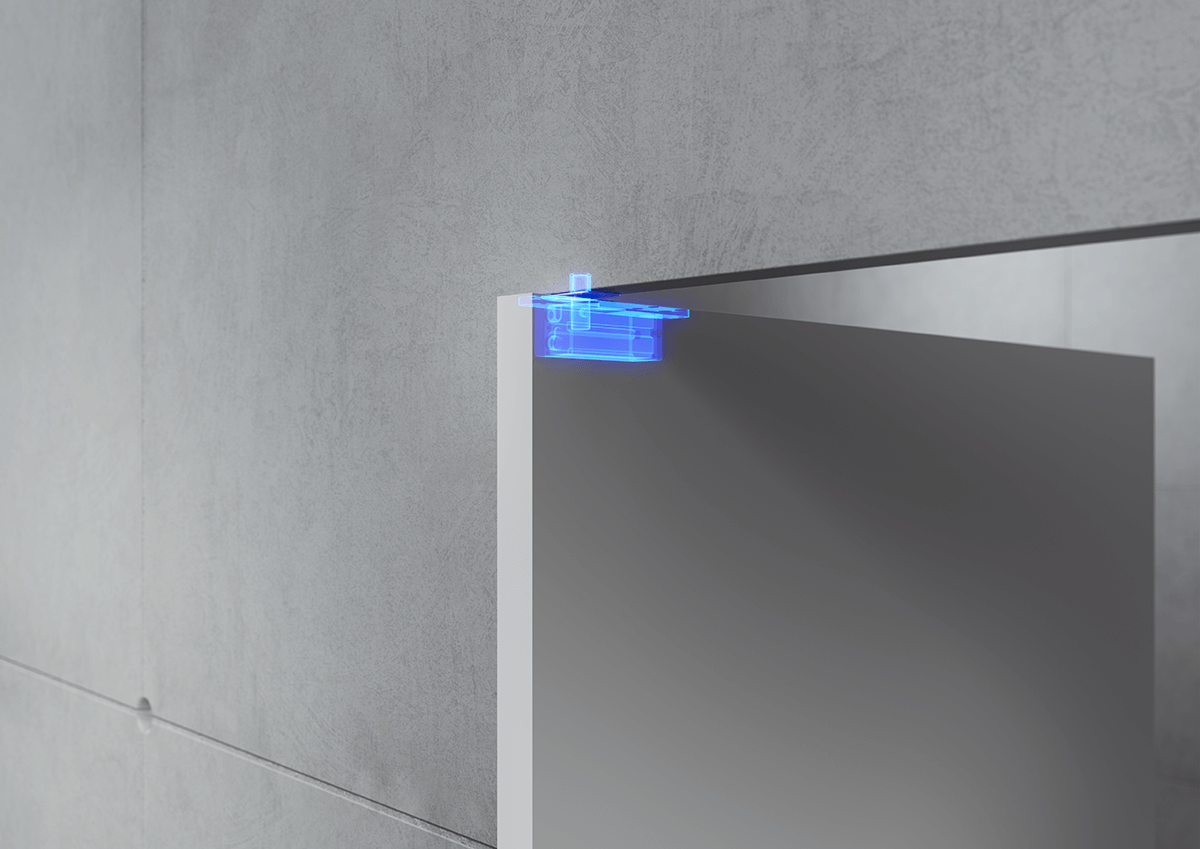

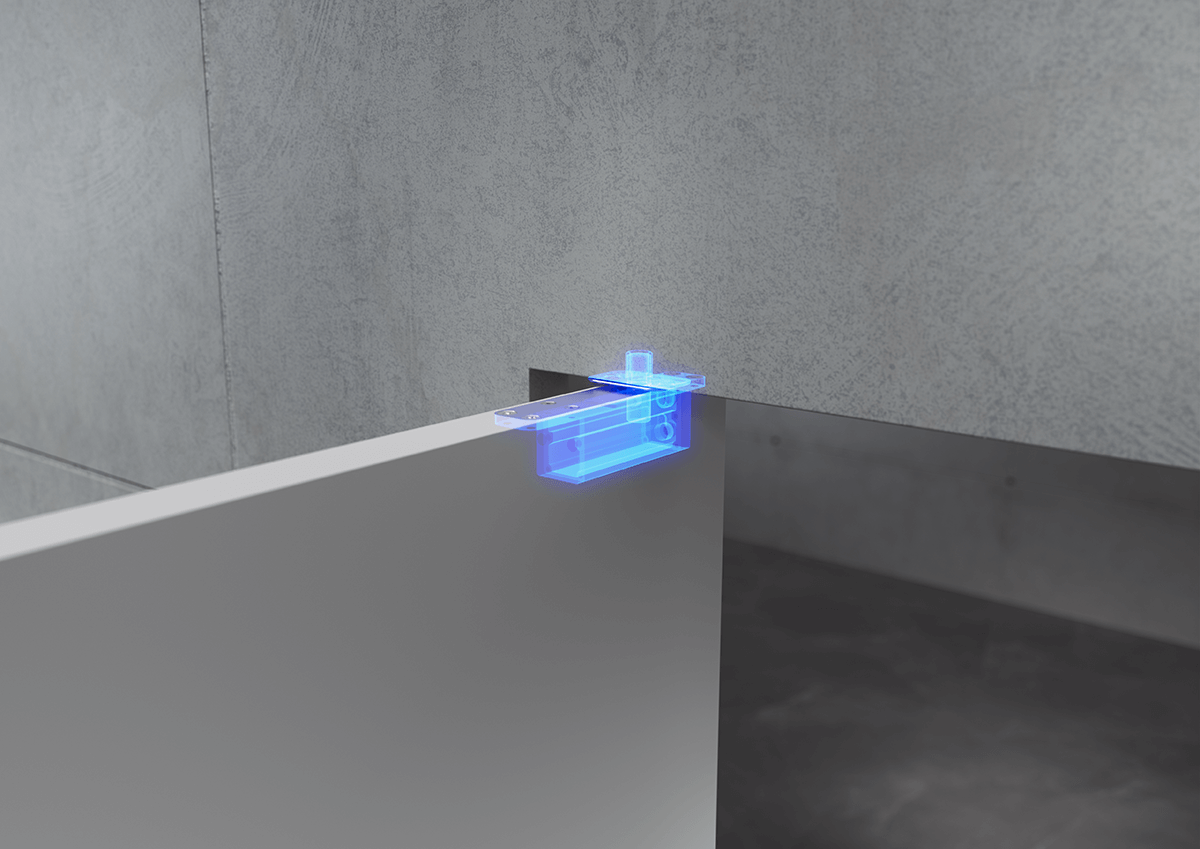

Top pivot 70 mm is mounted inside the top of the pivot door. The pin of the top pivot, respectively 10 mm or 15 mm thick, is rotated upwards into the ceiling plate during the installation. The ceiling plate is included in the order and available in Stainless Steel and PVD Black.

Watch installation video


Top pivot 70 mm - Class B

Pin thickness 10mm
Door weight Up to 150 kg
Pivot point Flexible from 70 mm
Placement type Side placement and middle placement
Top pivot placement Top of door
Adjustment Side of door
Dimensions 171,5 x 32 x 44 mm
Weight 728 gram
Material Stainless Steel | Anodized aluminum
Art.no. TP.X.70.B.X.XX
EAN 8720681607924

Top pivot 70 mm - Class G

Pin thickness 15 mm
Door weight Between 150 and 500 kg
Pivot point Flexible from 70 mm
Placement type Side placement and middle placement
Top pivot placement Top of door
Adjustment Side of door
Dimensions 171,5 x 32 x 44 mm
Weight 744 gram
Material Stainless Steel | Anodized aluminum
Art.no. TP.X.70.G.X.XX
EAN 8720681617282
Technical Sheet with System M/M+
PDF File, 803.34 KB
Download
Mounting & Milling Manual with System One/3
PDF File, 2.68 MB
Download
Mounting & Milling Manual with System M/M+
PDF File, 3.74 MB
Download
2D drawing with System One
DWG File, 490.55 KB
Download
2D drawing with System 3
DWG File, 553.21 KB
Download
2D drawing with System M
DWG File, 1.04 MB
Download
2D drawing with System M32+ (weight class A-E)
DWG File, 1.05 MB
Download
2D drawing with System M42+ (weight class F-G)
DWG File, 1.01 MB
Download
3D drawing TP-70 10mm
STEP File, 519.25 KB
Download
3D drawing TP-70 15mm
STEP File, 491.31 KB
Download
